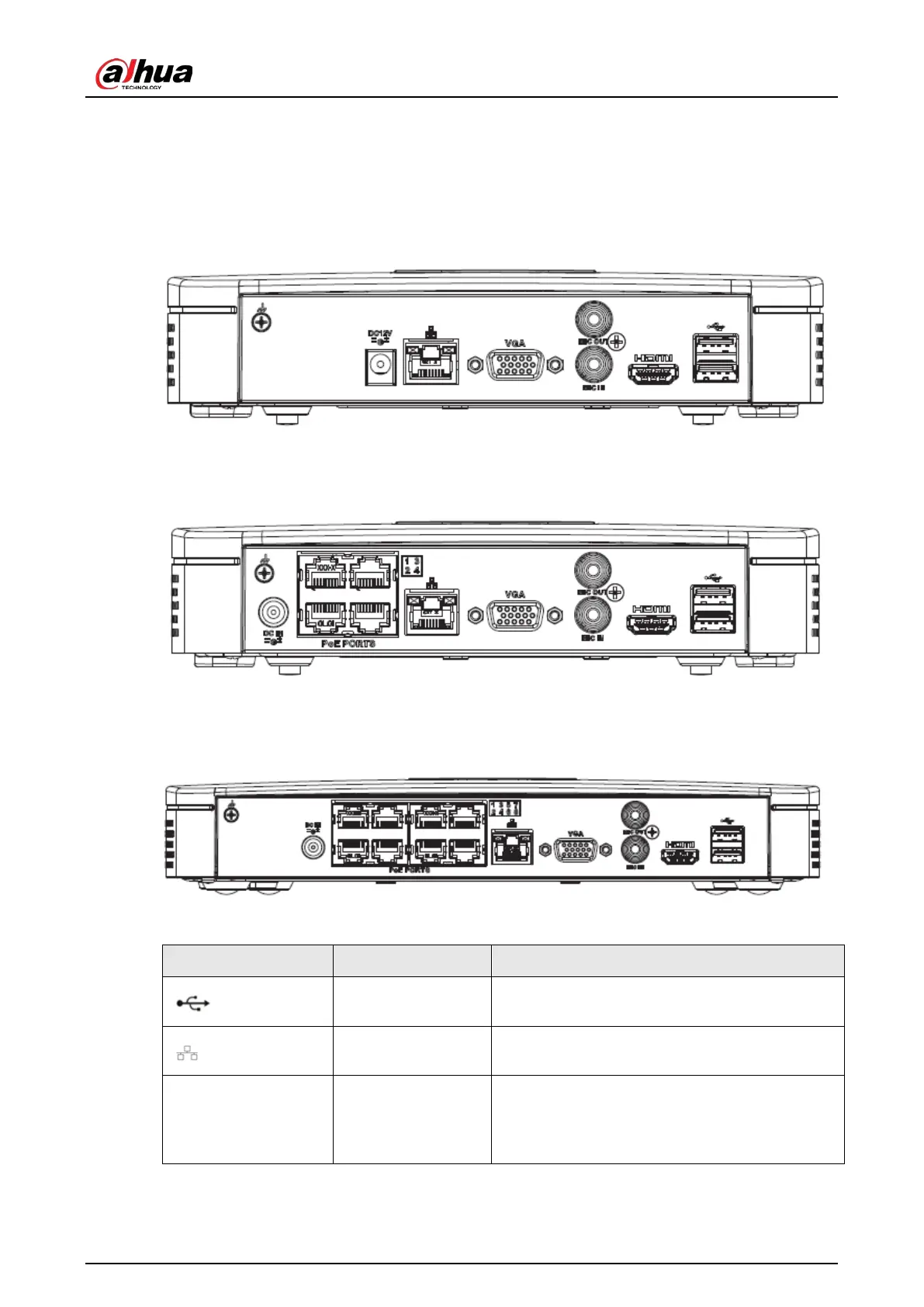

The NVR41-4KS2/NVR41-4KS2/L/NVR21-S3 series rear panel is shown as below.
Figure 2-62 Rear panel
The NVR41-P-4KS2/NVR41-P-4KS2/L series rear panel is shown as below.
Figure 2-63 Rear panel
The NVR41-8P-4KS2/NVR41-8P-4KS2/L series rear panel is shown as below.
Figure 2-64
Table 2-21 Ports
Port Name Connection Function
USB port
USB port. Connect to mouse, USB storage
device, USB burner and more.
Network port
10/100 Mbps self-adaptive Ethernet port.
Connect to the network cable.
HDMI
High Definition
Media Page
High definition audio and video signal output
port. It transmits uncompressed high definition
video and multiple-channel data to the HDMI
port of the display device. HDMI version is 1.4.
