User's Manual
66

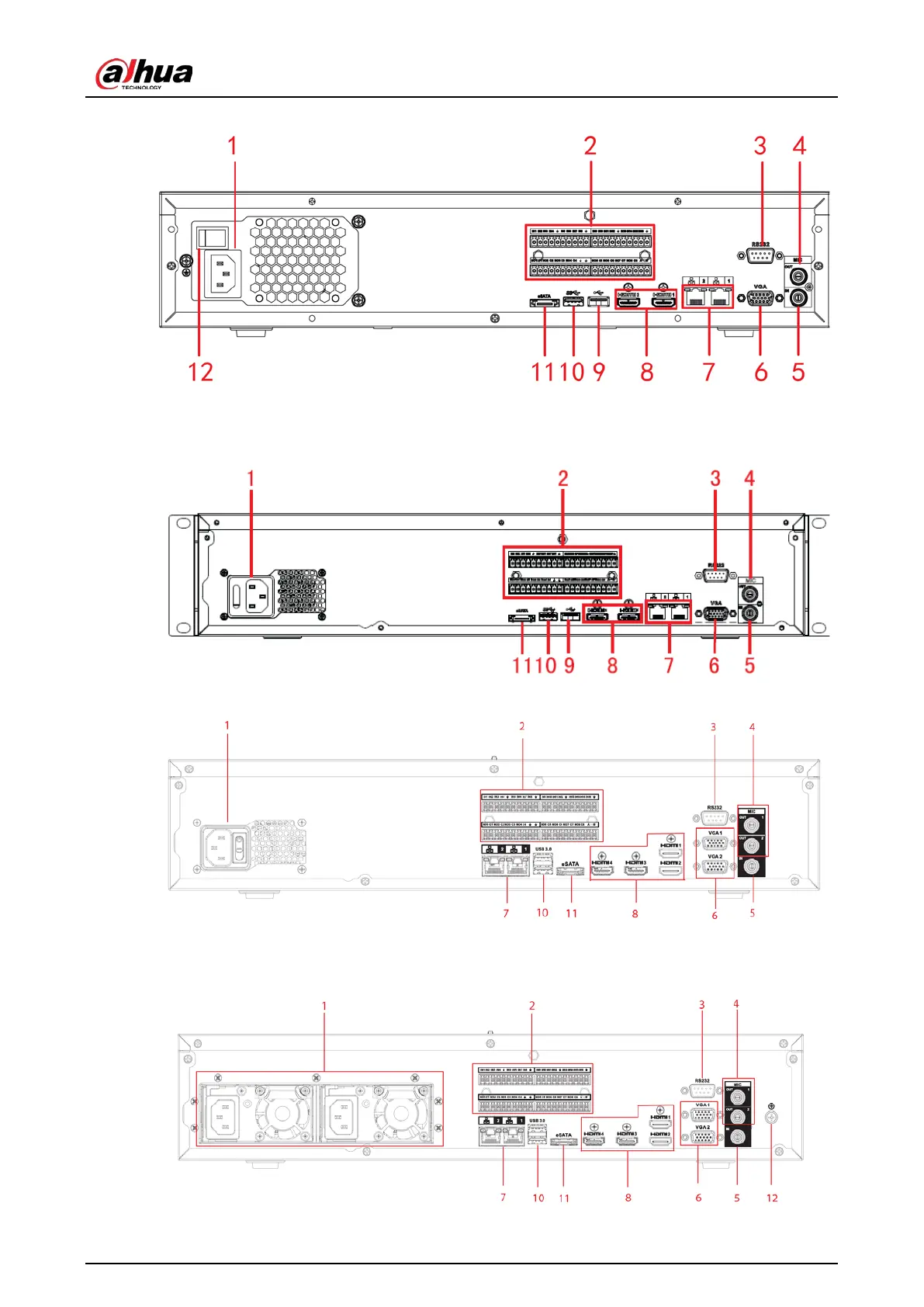

Figure 2-100 Rear panel (1)
The NVR608-64-4KS2/NVR608-128-4KS2/NVR608H-32-XI/NVR608H-64-XI/NVR608H-128-XI series rear
panel is shown as below.
Figure 2-101 Rear panel (2)
Figure 2-102 Rear panel (3)
The NVR608RH-32-XI/NVR608RH-64-XI/NVR608RH-128-XI front panel is shown as below.
Figure 2-103 Rear panel (4)
