Dahua XVR5108HS User Manual

325

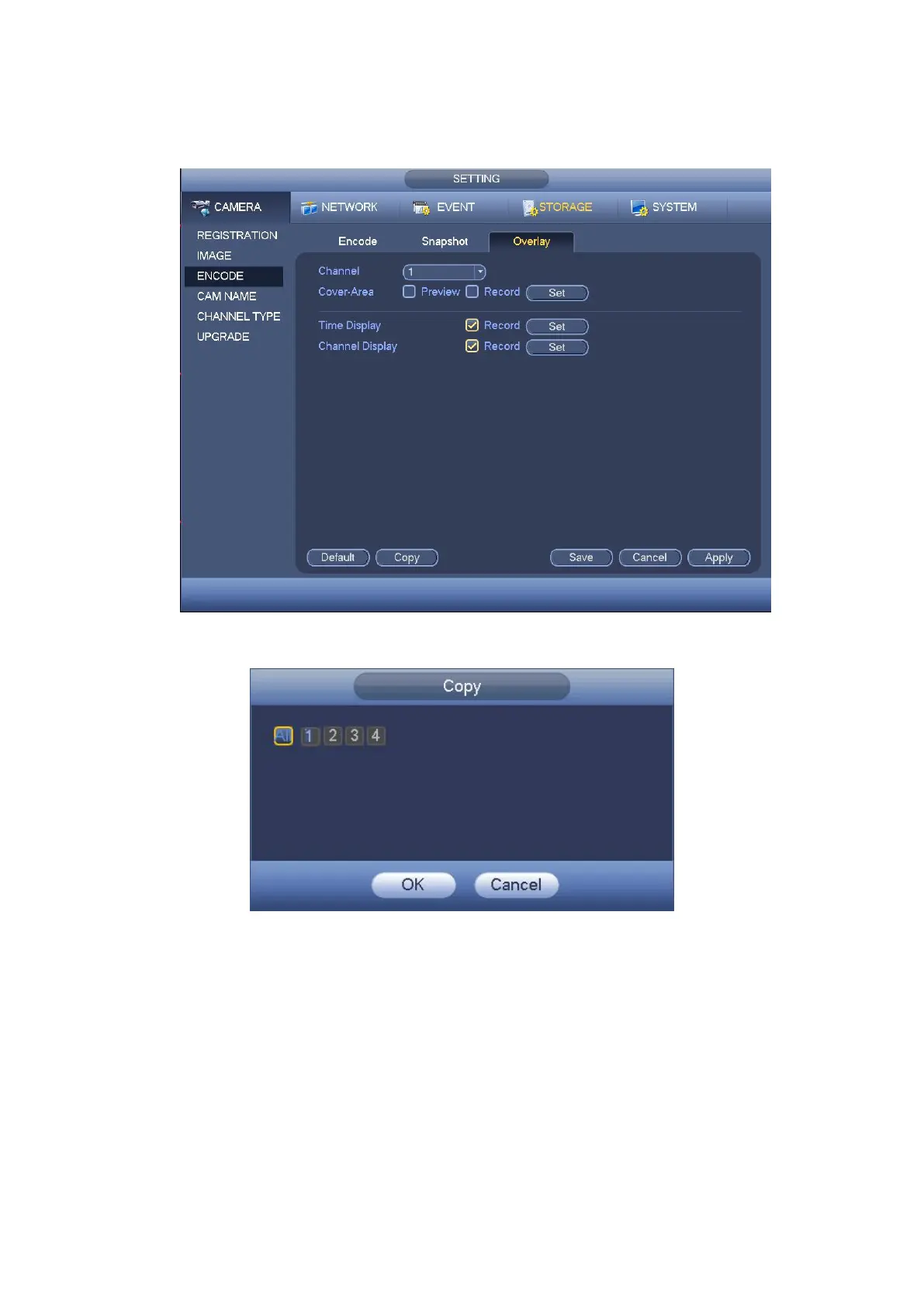

can check the box ALL. Please click the OK button in Figure 4- 38 and Figure 4- 37
respectively to complete the setup.
Figure 4- 37
Figure 4- 38
Step 3 Click Apply or Save to complete setup.
4.1.4.6 Basic
It is to manage HDD storage space.
Besides startup wizard and configuration wizard, from main
menu->Setting->Storage->Basic, you can also go to the following interface.
Step 1 From main menu->Setting->Storage->Basic.
Enter Basic interface, See Figure 4- 39.
Step 2 Set parameters.

Dahua XVR5108HS Specifications

General

Video Compression	H.265+/H.265/H.264+/H.264
Video Output	1 HDMI, 1 VGA
USB Interface	2 USB 2.0
Power Supply	12V DC/2A
Video Channels	8 channels
HDD Capacity	Up to 6TB
Operating Temperature	-10°C to +55°C (+14°F to +131°F)
Audio Input/Output	1/1 RCA
Internal HDD	1 SATA interface, up to 6TB
Max IP Camera Input	12 channels
Recording Resolution	1080P/720P
HDMI Output	1
VGA Output	1
Operating Humidity	10%–90% (RH), non-condensing
IP Video Input	8+4 channels
