Daikin AVS - Louver Installations with Typical Unit Configurations; Unit Configuration Type al

Page 8 of 60 IM 817-4

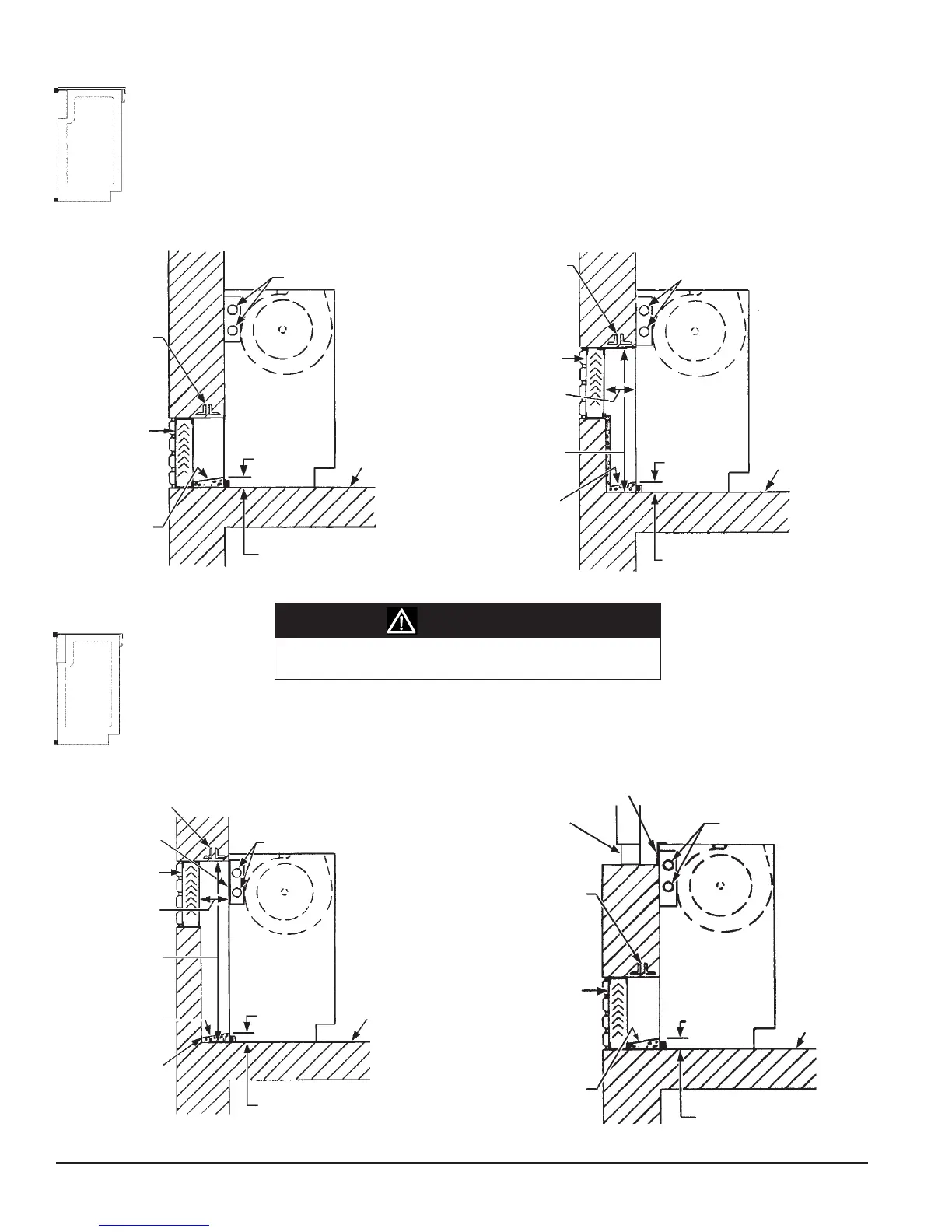

Figure 10 -16
5
⁄
8
" (422mm) Deep Unit with Open Pipe Tunnel & High
Louver Application with Chased Wall
Louver
Floor Line
Piping
Louver
Not Less
Than 3" (76mm)
Not More
Than 21" (533mm)
Sealed Cement
Mortar;
Pitch Away
From Unit
Provide Drainage
Piping
Floor Line
Figure 9 - The 16
5
/
8
” (422mm) Deep Unit with Open Pipe Tunnel and
Standard Louver Location
Louver Installation With Typical Unit Congurations
Unit Conguration Type AL
1"
(25mm)
Important: Gasket sealing
surface is required.
Important: Gasket sealing
surface is required.
Lintel
(By Others)
Figure 11 - Above Floor Level Outdoor Air Intake Using Arrangement
AV or AL With Accessory Closed Pipe Tunnel
Piping
Floor Line
Lintel (By Others)
Intake Louver
Not Less Than 3"
Not More
Than 28"
Insulated Closure
Plate Accessory
Provide
Drainage
Important: Gasket sealing
surface is required.
Figure 12 - Floor Level Outdoor Air Intake With Window Below Unit
Top Using Arrangement AL And 9˝ “Finished” (Painted) Accessory
(Uninsulated) Closed Pipe Tunnel
Unit Conguration Type AL
Lintel (By Others)
Intake Louver
Important: Gasket sealing
surface is required.
Sash
Piping
Painted Insulated Closure Plate Accessory
Floor Line
Accumulated moisture can cause property damage if not properly
drained. Installing contractor must provide such drainage.
Sealed Cement
Mortar;
Pitch Away
From Unit
Lintel
(By Others)
1"
(25mm)
Sealed Cement
Mortar;
Pitch Away
From Unit
Sealed Cement
Mortar;
Pitch Away
From Unit
1"
(25mm)
1"
(25mm)
CAUTION
