92
• Control systems
• intelligent Touch Manager • ED721208
Installation
(Installation Place)
• Install the unit indoors where it is not exposed to water and dust or dirt.
• Install the unit where both temperature and humidity do not become high.
 (Operating(available)temperature:-10~+40°C)
(Operating (available) humidity: 10 ~ 85%)
• Connectthewiringtobeconnectedinthefieldfromthelowersurfaceside.
 Itis,therefore,necessarytomakearrangementssoasnottoattachotherequipmentwithin80mmfromthelowersurface
ot this equipment.
• Install this equipment in a place in wich only the authorized personnel can touch it.
(Installation Direction)
• Installthisequipmentverticallytothefloorsurface.Itshouldbenotedthatifitisinstalledinthehorizontaldirection,a
malfunctionorfailuremayresult.

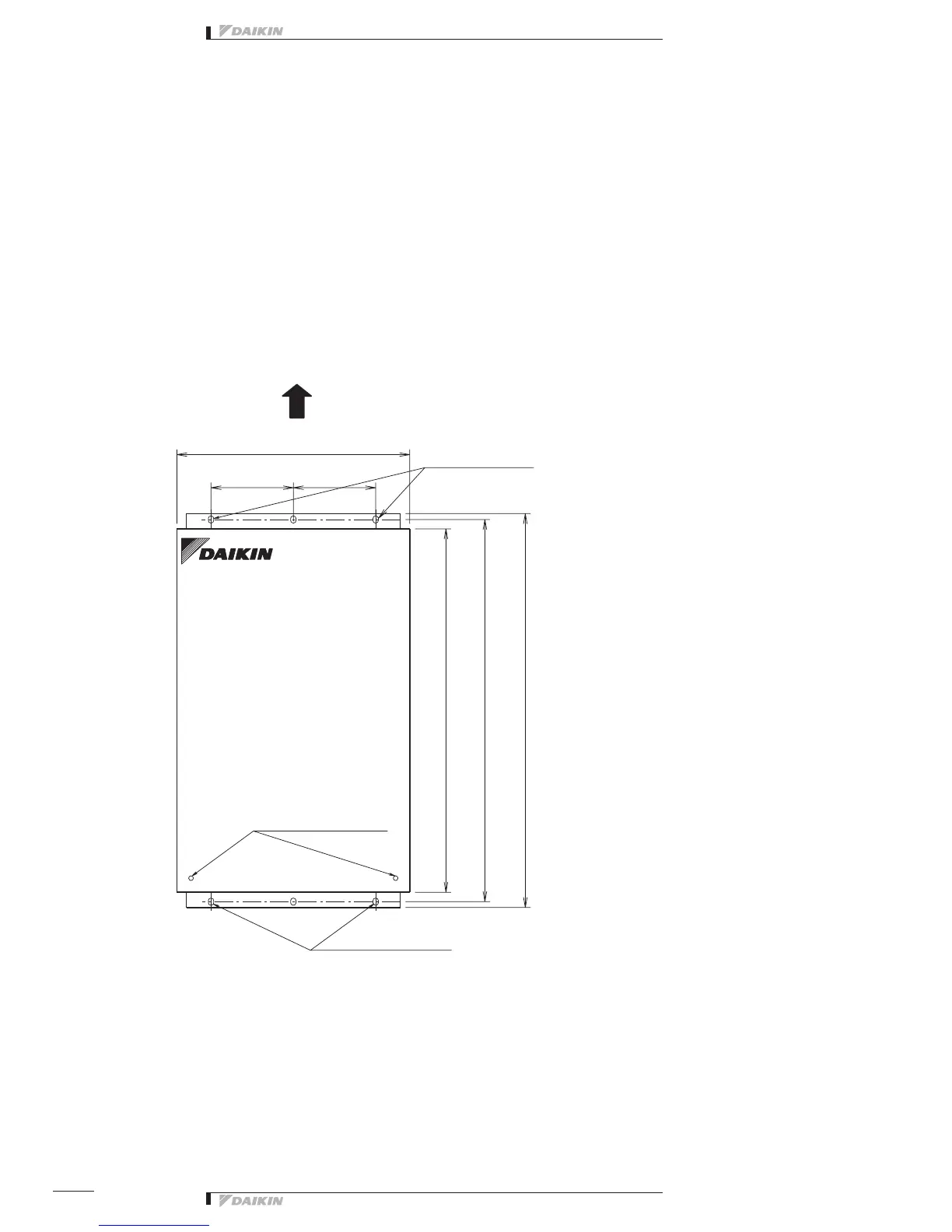

(Installation Method)
• Ensure that this equipment is installed with 4 screws (screw size M4 min.).
325
(198)
70
(309)
335
70
DEC101A51
Mounting hole
UP
Mounting hole
Front panel screw
Unit (mm)
