Danfoss ECL COMFORT User Manual

Installation
13a
Electrical connections -
24 V a.c. - in general

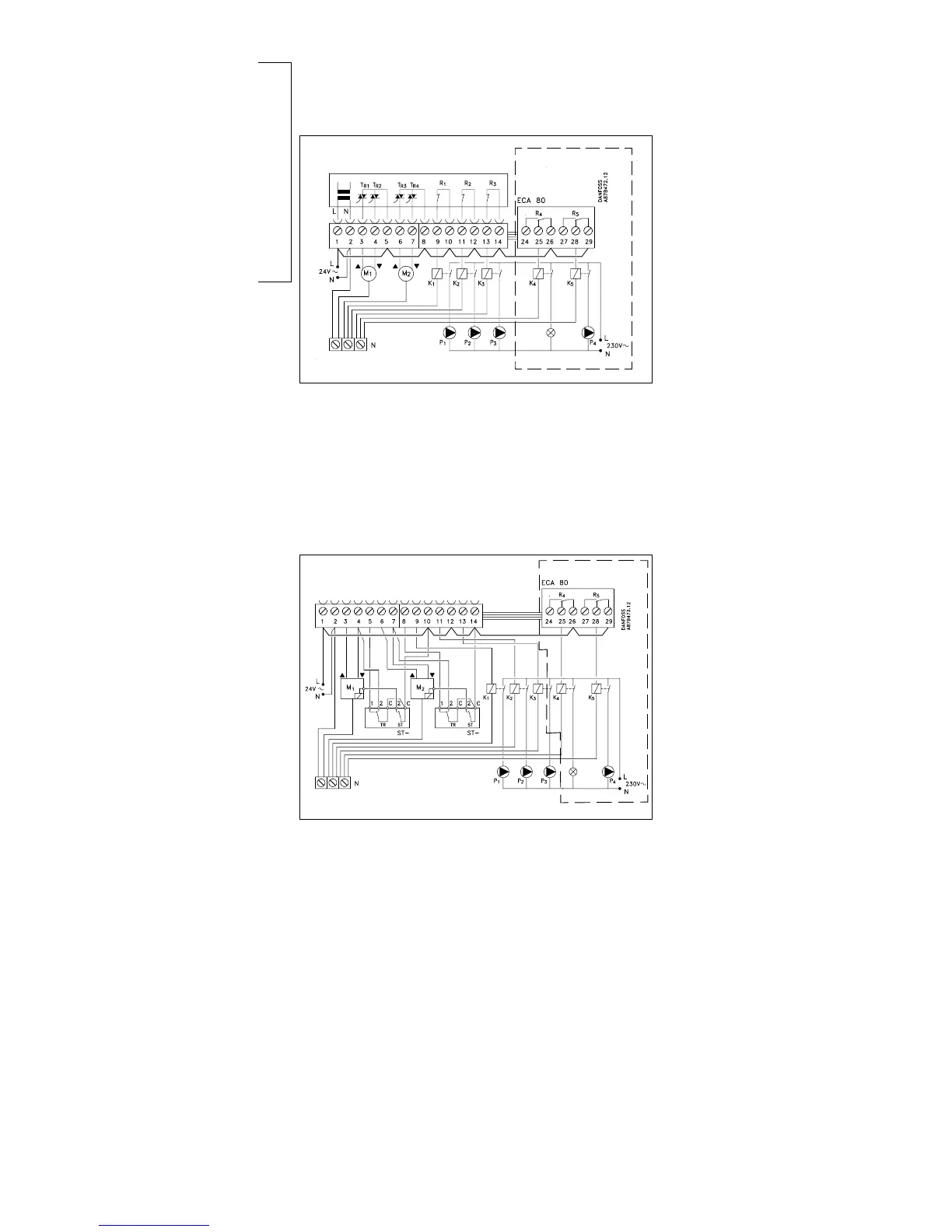

24 V a.c. connections - without safety thermostat
Optional
Establish these jumpers:
1-5-8-10-12-14
and jumper 2 to common N-terminal.
If an ECA 80 module is to be applied, the jumpers 14-26-29
must be established additionally.
24 V a.c. connections - with safety thermostat
Optional
This circuit diagram is only valid if Danfoss actuators are used
Establish these jumpers:
1-10-12-14
Safety thermostat:
4, 5 and 10 with ST- (safety thermostat)
and jumper 2 to common N-terminal.
If an ECA 80 module is to be applied, the jumpers 14-26-29
must be established additionally.

Danfoss ECL COMFORT Specifications

General

Type	Electronic controller
Display	LCD with backlight
Protection Class	IP 41
Communication	Modbus
Mounting	Wall mount
Application	Heating, cooling
Relative Humidity	10% to 90% (non-condensing)
Display Features	Graphical
