Choose your favorite display
(circuit I)
Choose the display - A, B, or C - for daily
operations.

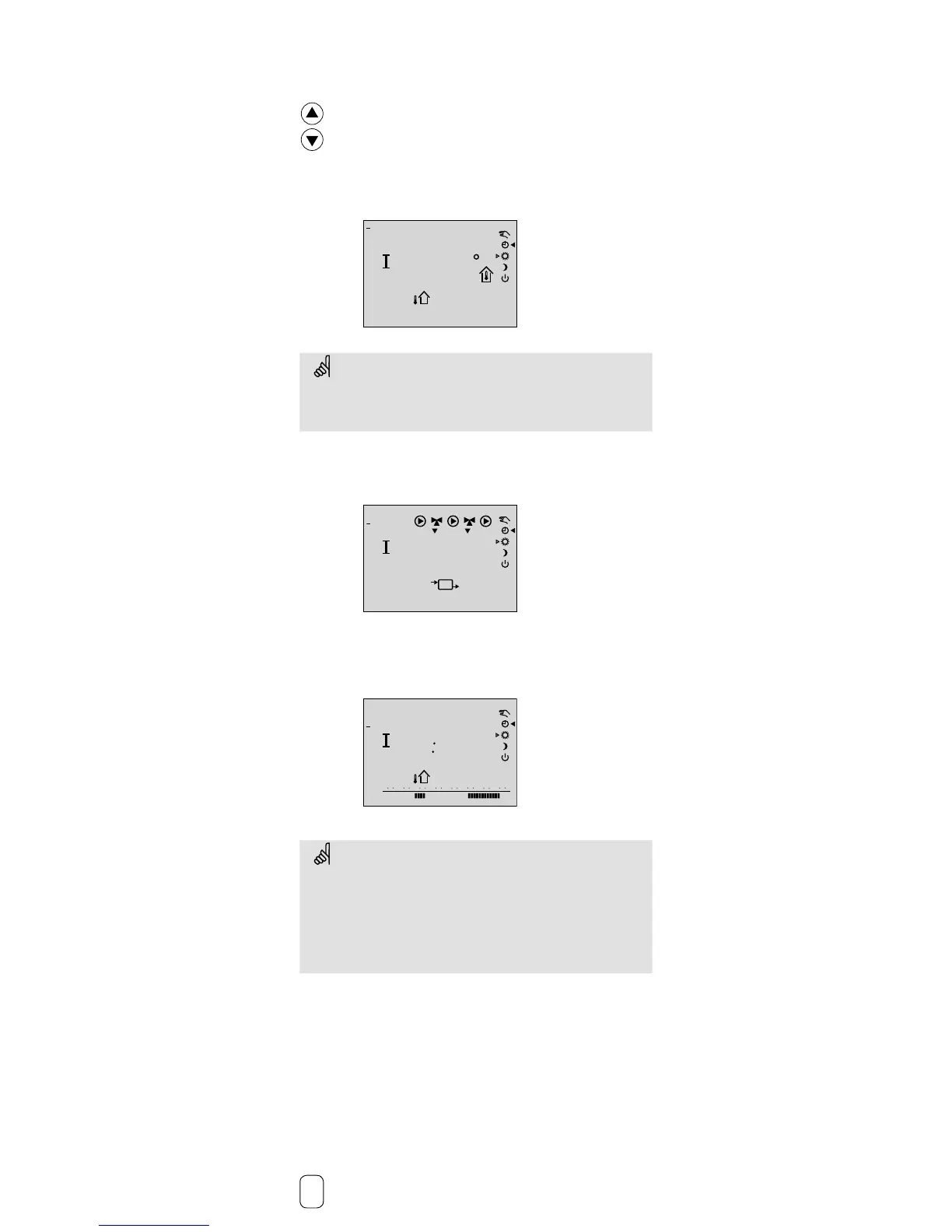

Room temperature - display A
Line
Circuit
Outdoor
temp.
Room temp. (ECA 60 / 61)
913
20
A
Desired room temp.
The display will only show a value if an ECA 60 / 61 is connected.
If not, two bars will be shown.
System information - display B
Line
Circuit
Flow temp.
(S2)
State of controlled units
5
1
1
ON
2
036
B
3
ON
2
ON
Return temp.
(S3)
Today's schedule - display C
Line
Circuit
Outdoor
temp.
(S1)
Time
8
0 3 6 9 12 15 18 21 24
1
023
5
C
3
Today's schedule
Desired room temp.
The controller automatically reverts to display C if the card has
been reinserted or the power supply has been interrupted.
If the temperature value is displayed as "- -", the sensor in
question is not connected. "- - -" means that the sensor is short-
circuited.
