Danfoss ECL COMFORT User Manual

The yellow
side of the
ECL Card

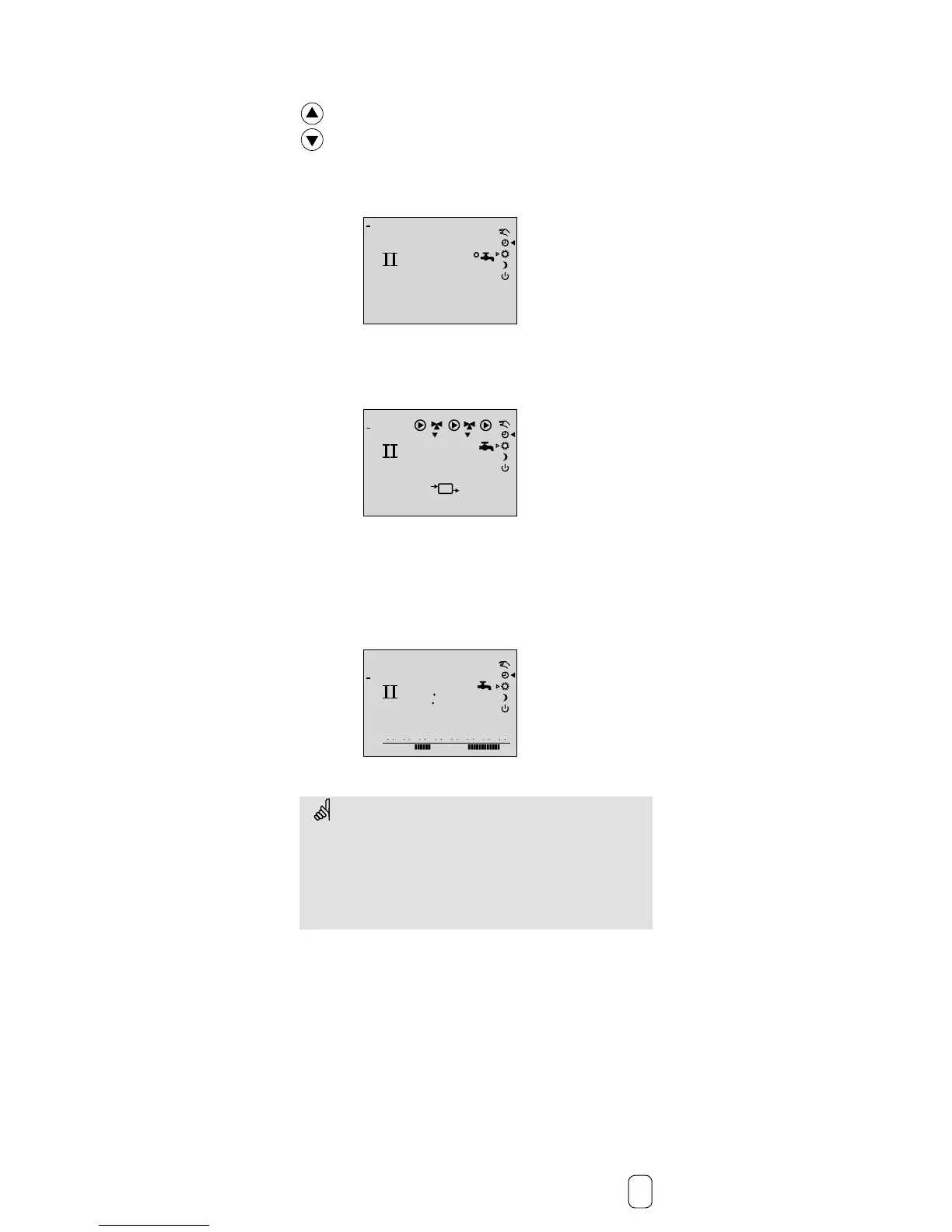

Choose the display - A, B, or C - for daily
operations.
DHW temperature - display A
Line
Circuit
Upper tank temp. (S6)
07
6
A
5
Desired charging temp.
(S4)
System information - display B
Line
Circuit
Charging
temp. (S4)
State of controlled units
6
1
1
ON
2
035
B
3
ON
2
ON
Return temp. (S5)*
* A value is displayed only if S5 is selected as return temp. sensor
(line 140)
Today’s schedule - display C
Line
Circuit
Time
8
0 3 6 9 12 15 18 21 24
1
07
5
C
3
Today's schedule
Desired charging temp.
(S4)
The controller automatically reverts to display C if the card has
been reinserted or the power supply has been interrupted.
If the temperature value is displayed as "- -", the sensor in
question is not connected. "- - -" means that the sensor is short-
circuited.
Choose your favorite display
(circuit II)
1b

Danfoss ECL COMFORT Specifications

General

Type	Electronic controller
Display	LCD with backlight
Protection Class	IP 41
Communication	Modbus
Mounting	Wall mount
Application	Heating, cooling
Relative Humidity	10% to 90% (non-condensing)
Display Features	Graphical
