Danfoss ECL COMFORT User Manual

The grey
side of the
ECL Card

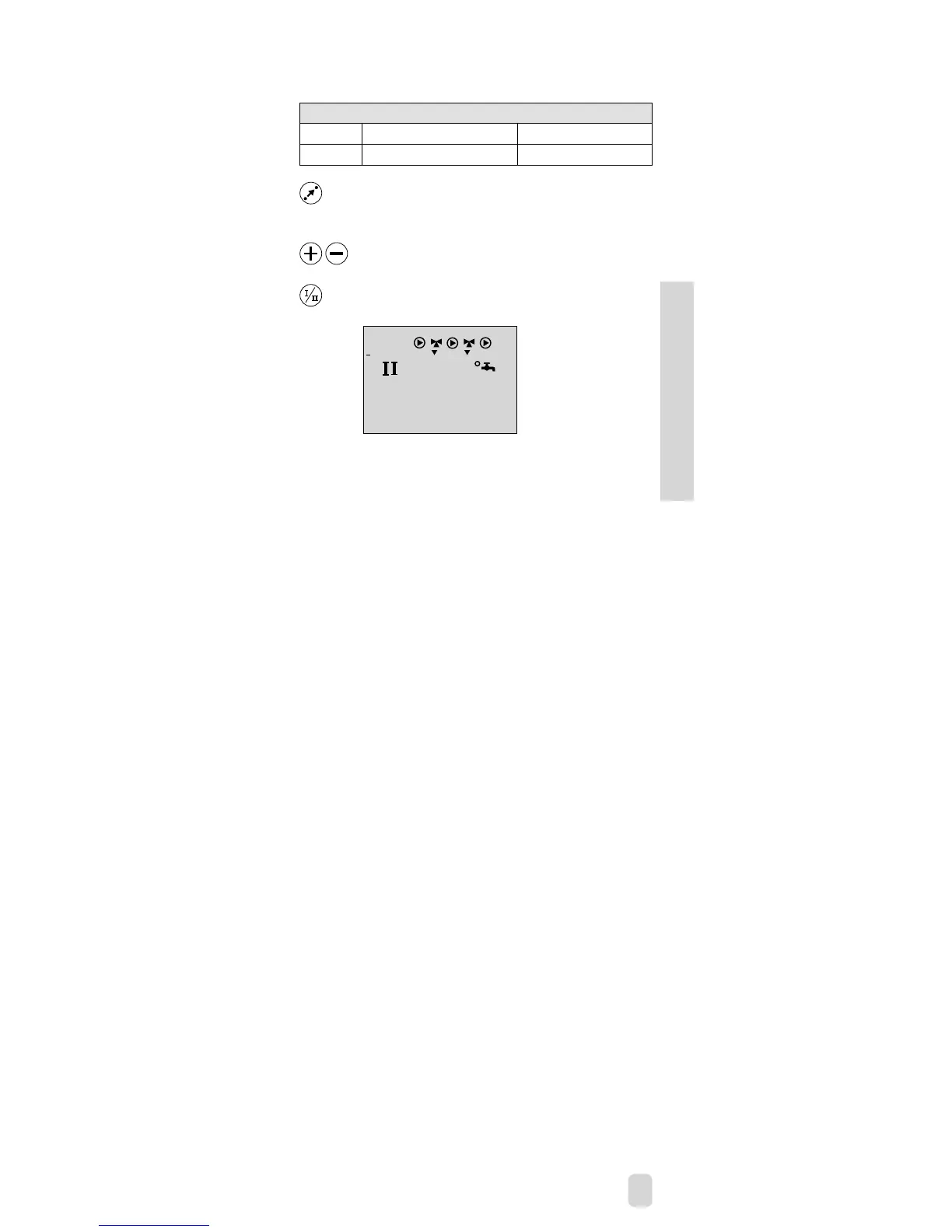

Basic set-up
Parallel displacement
Circuit Setting range Factory setting
I -9 ... 9 K 0 K
If you want to adjust the parallel displacement of
the heat curve, push the shift button. The symbol
for the parallel displacement will blink.
Make your adjustments.
Choose circuit II for the readout of the storage
temperature.
1 2
04
C
55
3
ON
1
ON
2
ON
Upper tank sensor
(actual temp.)
Lower tank sensor
(actual temperature),
if ON is chosen in line 140
20b

Danfoss ECL COMFORT Specifications

General

Type	Electronic controller
Display	LCD with backlight
Protection Class	IP 41
Communication	Modbus
Mounting	Wall mount
Application	Heating, cooling
Relative Humidity	10% to 90% (non-condensing)
Display Features	Graphical
