Danfoss FC 102 Operating Instructions

5 User Interface
5.1 Local Control Panel
The local control panel (LCP) is the combined display and
keypad on the front of the unit. The LCP is the user
interface to the frequency converter.
The LCP has several user functions.
•
Start, stop, and control speed when in local
control
•
Display operational data, status, warnings and
cautions
•
Programming frequency converter functions
•
Manually reset the frequency converter after a
fault when auto-reset is inactive
An optional numeric LCP (NLCP) is also available. The NLCP
operates in a manner similar to the LCP. See the
Programming Guide, for details on use of the NLCP.
5.1.1
LCP Layout
The LCP is divided into 4 functional groups (see
Illustration 5.1).
Auto
on
Reset
Hand
on
O
Status
Quick
Menu
Main
Menu
Alarm
Log
Cancel
Info
Status
1(1)
1234rpm
Back
OK
43,5Hz
Run OK
43,5Hz
On
Alarm
Warn.
130BC362.10
a
b
c
d
1.0 A
a Display area.
b Display menu keys for changing the display to show
status options, programming, or error message
history.
c Navigation keys for programming functions, moving
the display cursor, and speed control in local
operation. The status indicator lights are also in this
group.
d Operational mode keys and reset.

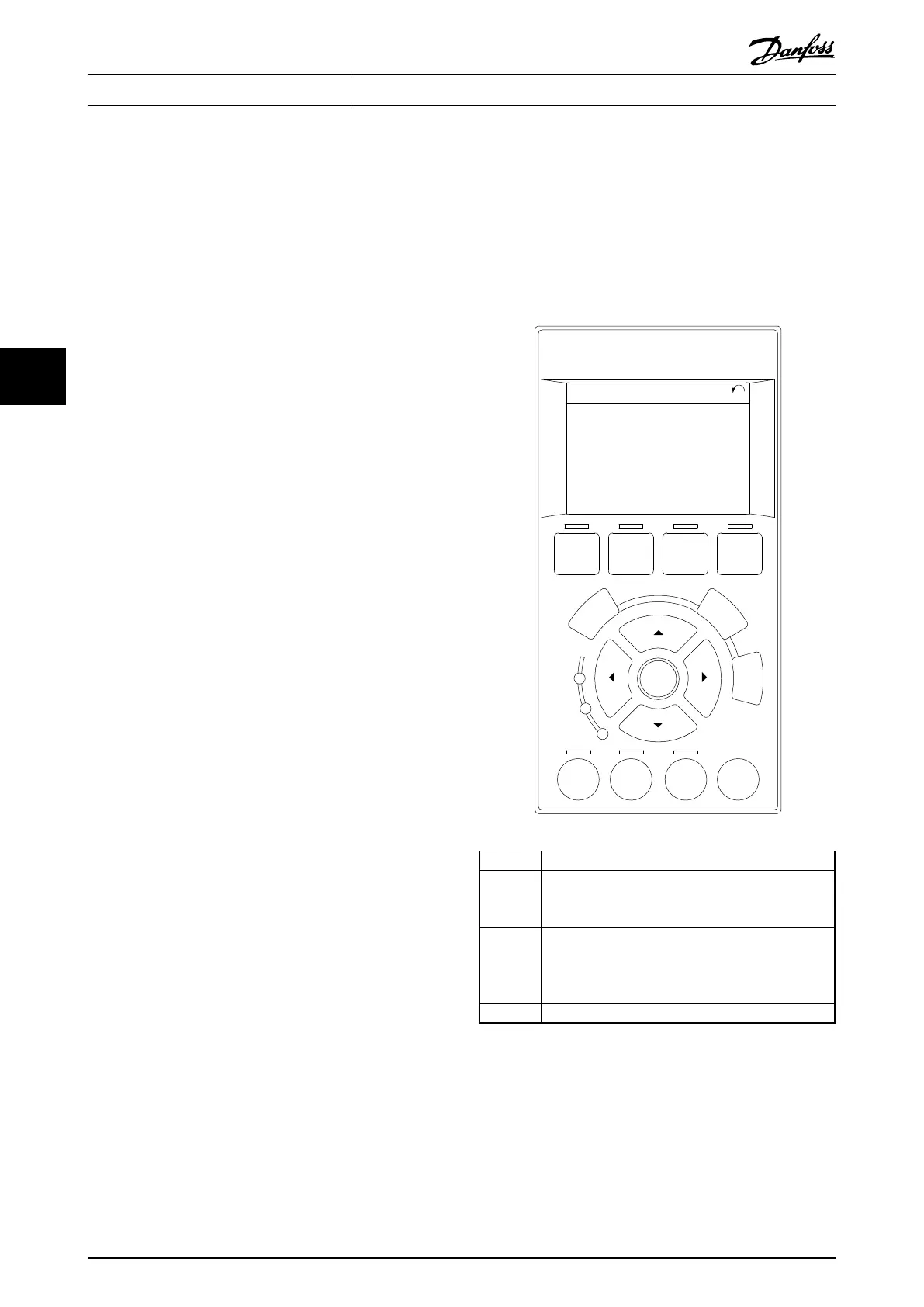

Illustration 5.1 LCP
User Interface Operating Instructions
40 Danfoss A/S © Rev. 06/2014 All rights reserved. MG16D302
