1 Introduction
1.1 Product Overview
1.1.1 Interior Views
1
15
14
8
9
12
13 (IP 20/Chassis)
13
(IP 21/54
NEMA 1/12)
11
10
16
130BC252.11

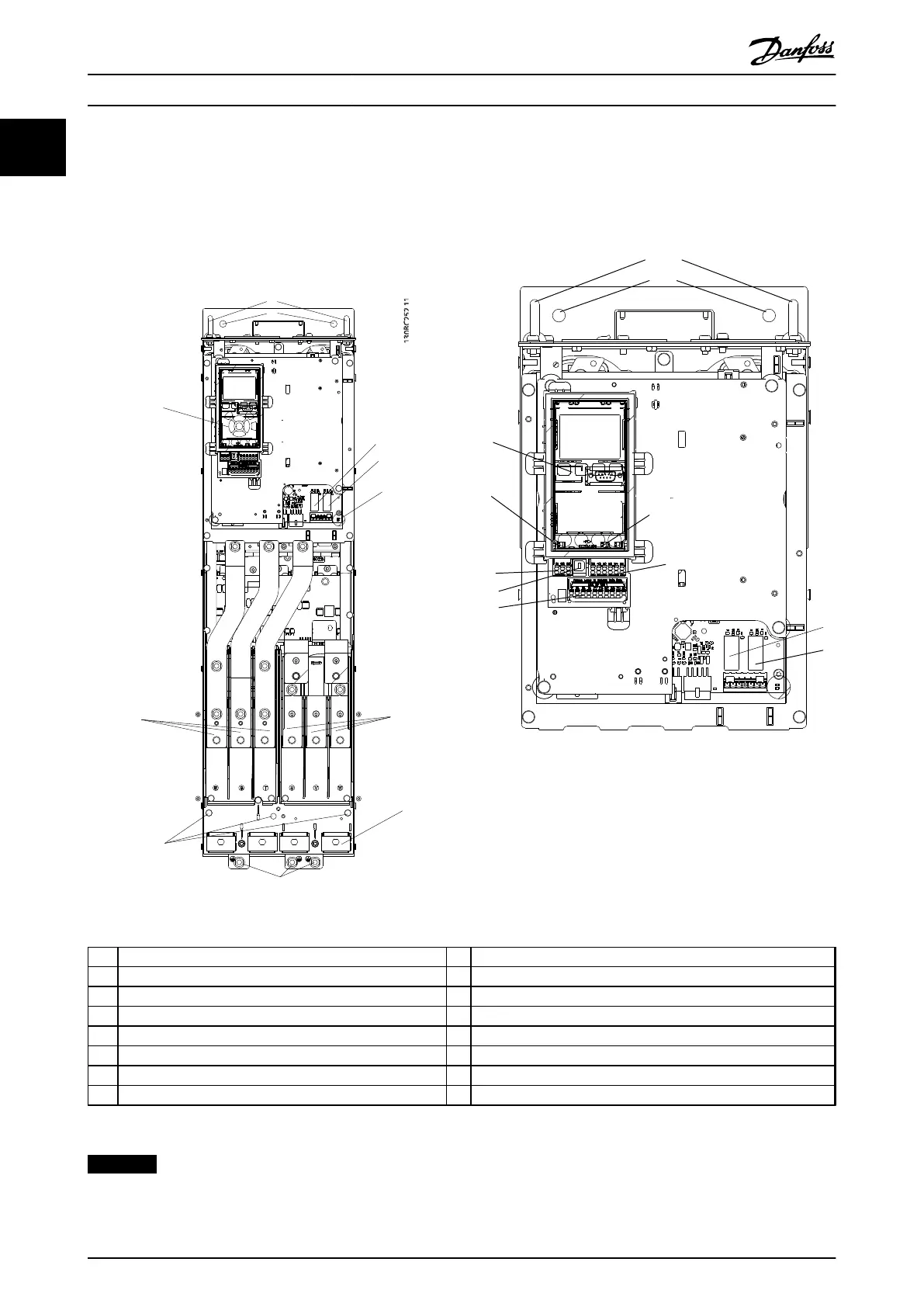

Illustration 1.1 D1 Interior Components
130BC301.11
1
2
3
4
5
6
7
8
9
10
11
Illustration 1.2 Close-up View: LCP and Control Functions
1
LCP (Local Control Panel) 9 Relay 2 (04, 05, 06)
2 RS-485 serial bus connector 10 Lifting ring
3 Digital I/O and 24 V power supply 11 Mounting slot
4 Analog I/O connector 12 Cable clamp (PE)
5 USB connector 13 Earth (ground)
6 Serial bus terminal switch 14 Motor output terminals 96 (U), 97 (V), 98 (W)
7 Analog switches (A53), (A54) 15 Mains input terminals 91 (L1), 92 (L2), 93 (L3)
8 Relay 1 (01, 02, 03) 16 TB5 (IP21/54 only). Terminal block for anti-condensation heater
Table 1.1 Legend to Illustration 1.1 and Illustration 1.2
NOTICE
For location of TB6 (terminal block for contactor), see chapter 3.4.3.2 Terminal Locations: D5h-D8h.
