7.3.4 Potentiometer Reference
Voltage reference via a potentiometer
Reference Source 1 = [1] Analog input 53 (default)
Voltage reference via potentiometer
Terminal 53, Low Voltage = 0 V
Terminal 53, High Voltage = 10 V
Terminal 53, Low Ref./Feedback = 0 RPM
Terminal 53, High Ref./Feedback = 1500 RPM
Switch S201 = OFF (U)
130BA154.11
555039 42 53 54
Speed RPM
P 6-15
1 kΩ
+10V/30mA
Ref. voltage
P 6-11 10V

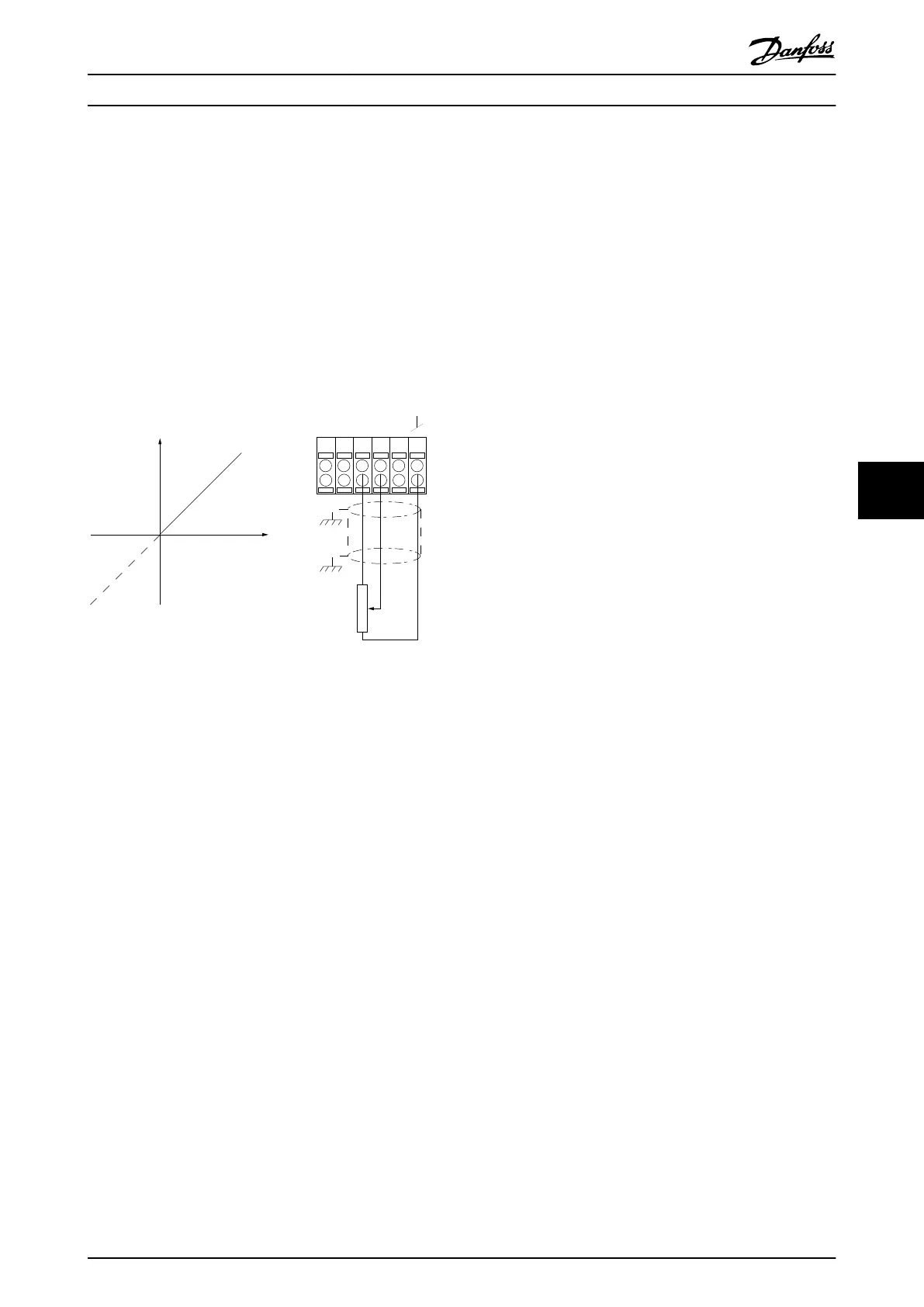

Illustration 7.8 Potentiometer Voltage Reference
Application Examples Operating Instructions
MG16D302 Danfoss A/S © Rev. 06/2014 All rights reserved. 59
7 7
