3.4 Interior View of Enclosures E3h and E4h
FASTENER TORQUE:
M10 19Nm (14FT-LB)
M12 35Nm (26FT-LB)
+ DC 89
FASTENER TORQUE:
M10 19Nm (14FT-LB)
M12 35Nm (26FT-LB)
- BRAKE 83
FASTENER TORQUE:
M10 19Nm (14FT-LB)
M12 35Nm (26FT-LB)
+ BRAKE 82
FASTENER TORQUE:
M10 19Nm (14FT-LB)
M12 35Nm (26FT-LB)
- DC 88
130BF211.11
1
6
2
5
9
12
13
11
7
8
3
10
4
1 Load share/regeneration terminals (optional) 8 RFI shield termination (optional, but is standard when RFI
lter is ordered)
2 Control shelf (see Illustration 3.3) 9 Fans (used to cool the front section of enclosure)
3 Local control panel (LCP) cradle 10 Fan power card
4 RFI lter (optional) 11 Space heater (optional)
5 Mains fuses (optional) 12 Brake terminals (optional)
6 Mains terminals 13 Motor terminals
7 Ground terminals – –

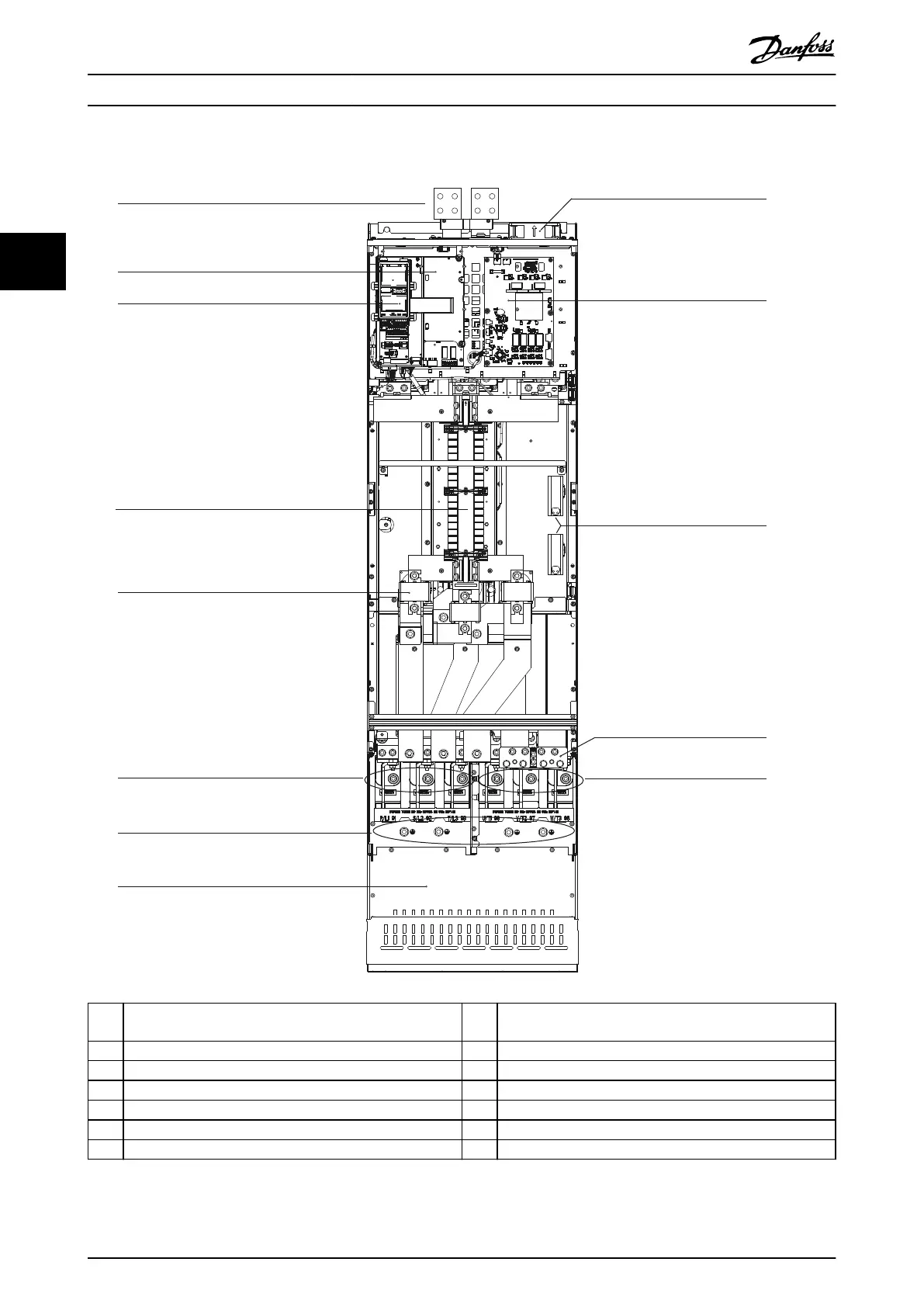

Illustration 3.2 Interior View of Enclosure E3h (Enclosure E4h is Similar)
