9.8 Enclosure Dimensions
9.8.1 E1h Exterior Dimensions
130BF648.10
22 (0.8)
393 (15.5)
602 (23.7)
2043
(80.4)
2002
(78.8)
1553
(61.1)
1393
(54.9)
912
(35.9)
13 (0.5)
3X

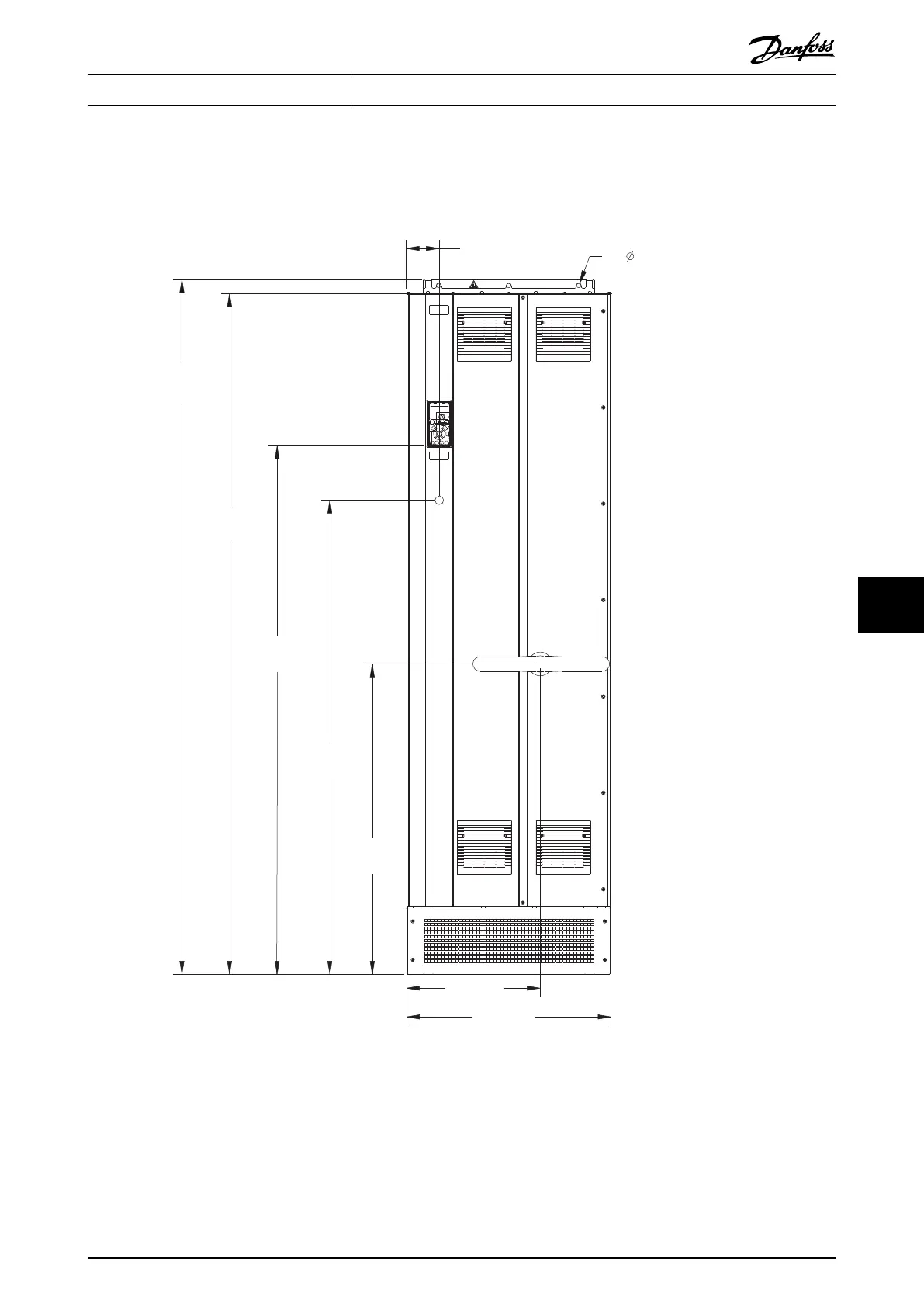

Illustration 9.2 Front View of E1h
