Danfoss FC 102

Parameters
FC
+24 V
+24 V
D IN
D IN
D IN
COM
D IN
D IN
D IN
D IN
+10 V
A IN
A IN
COM
A OUT
COM
12
13
18
19
20
27
29
32
33
37
50
53
54
55
42
39

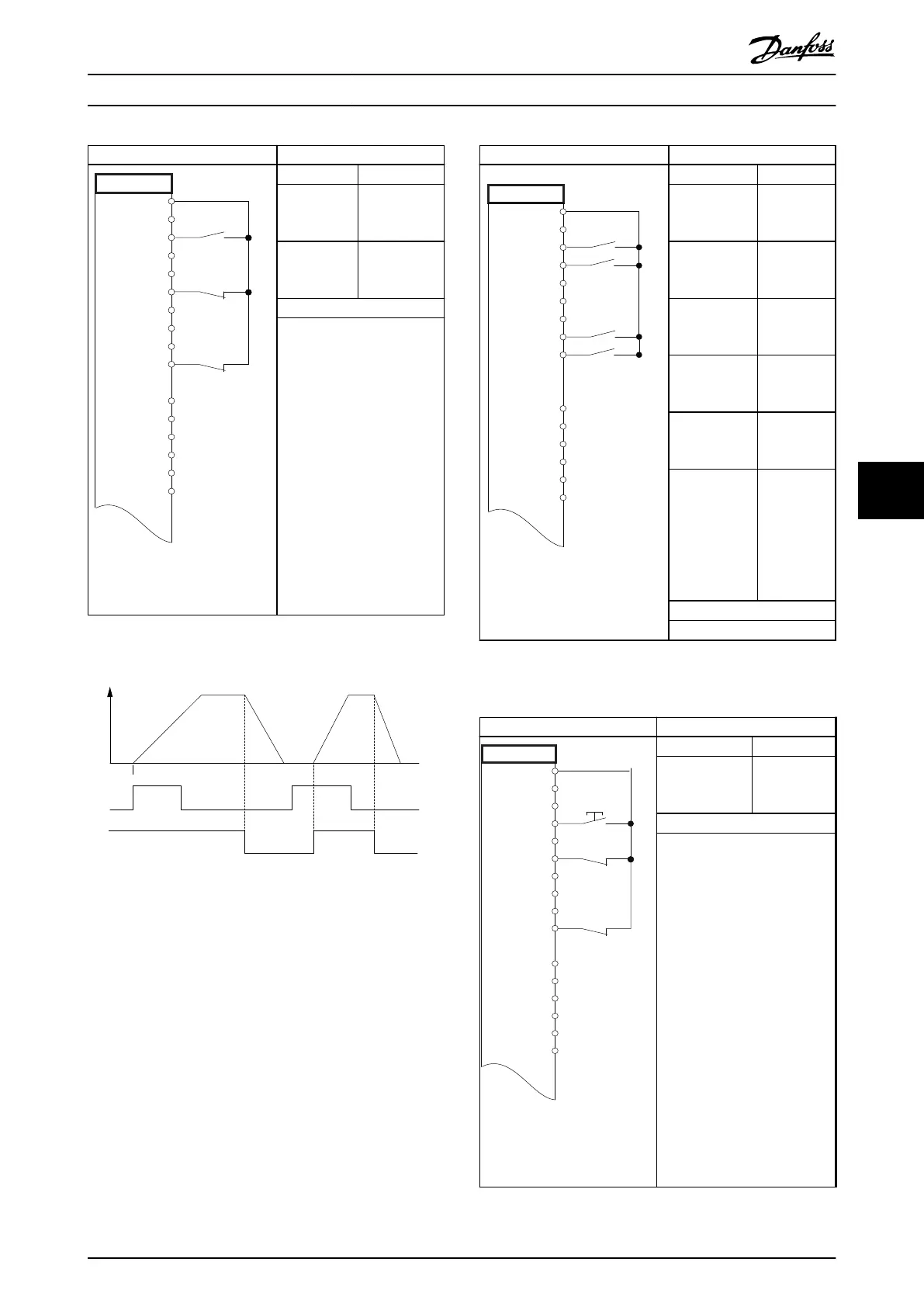

130BB803.10
Function Setting
Parameter 5-1
0 Terminal 18
Digital Input
[9] Latched
Start
Parameter 5-1
2 Terminal 27
Digital Input
[6] Stop
Inverse
* = Default value
Notes/comments:
Table 7.6 Pulse Start/Stop
Speed
130BB806.10
Latched Start (18)
Stop Inverse (27)
Illustration 7.3 Latched Start/Stop Inverse
Parameters
FC
+24 V
+24 V
D IN
D IN
D IN
COM
D IN
D IN
D IN
+10 V
A IN
A IN
COM
A OUT
COM
12
13
18
19
20
27
29
32
33
50
53
54
55
42
39
130BB934.11
Function Setting
Parameter 5-10
Terminal 18
Digital Input
[8] Start
Parameter 5-11
Terminal 19
Digital Input
[10]
Reversing*
Parameter 5-12
Terminal 27
Digital Input
[0] No
operation
Parameter 5-14
Terminal 32
Digital Input
[16] Preset
ref bit 0
Parameter 5-15
Terminal 33
Digital Input
[17] Preset
ref bit 1
Parameter 3-10
Preset
Reference
Preset ref. 0
Preset ref. 1
Preset ref. 2
Preset ref. 3
25%
50%
75%
100%
* = Default value
Notes/comments:
Table 7.7 Start/Stop with Reversing and 4 Preset Speeds
7.3
Wiring for External Alarm Reset
Parameters
FC
+24 V
+24 V
D IN
D IN
D IN
COM
D IN
D IN
D IN
D IN
+10
V
A IN
A IN
COM
A OUT
COM
12
13
18
19
20
27
29
32
33
37
50
53
54
55
42
39
130BB928.11
Function Setting
Parameter 5-11 T
erminal 19
Digital Input
[1] Reset
* = Default value
Notes/comments:
Table 7.8 External Alarm Reset
