5.7.4 Mains, Motor, and Ground for E4h
130BF668.10
6X 148 (5.8)
90 (3.5)
50 (2.0)
0 (0.0)
1
0 (0.0)
64 (2.5)
41 (1.6)
105 (4.1)
137 (5.4)
194 (7.6)
200 (7.9)
233 (9.2)
402 (15.8)
339 (13.4)
410 (16.1)
499 (19.6)
435 (17.1)
531 (20.9)
256 (10.1)
33 (1.3)
2
3
4
540 (21.2)
432 (17.0)
521 (20.5)
472 (18.6)
561 (22.1)
1 Mains terminals 3 Motor terminals
2 Brake or regeneration terminals 4 Ground terminals, M8 and M10 nuts

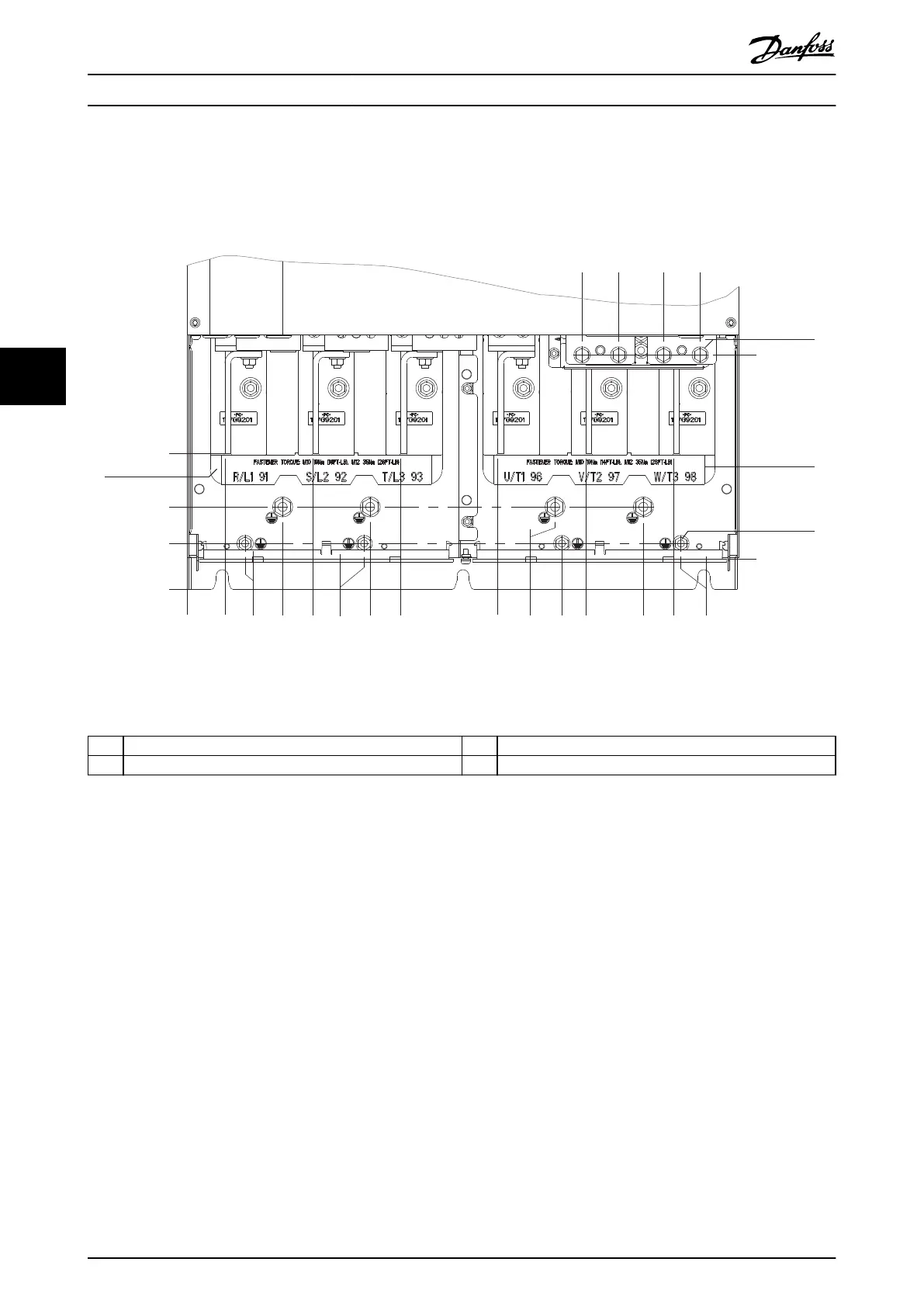

Illustration 5.13 E4h Terminal Dimensions (Front View)
Electrical Installation VLT® HVAC Drive FC 102
38 Danfoss A/S © 01/2017 All rights reserved. MG16O102
