How to Install
" Motor Connection
NOTE
Motor cable must be shielded/armored. If
an unshielded/unarm ored ca ble is use d,
some EMC requirements are not complied
with. For more information, see EMC specifications
in the VLT AutomationDrive FC 300 Design Guide.

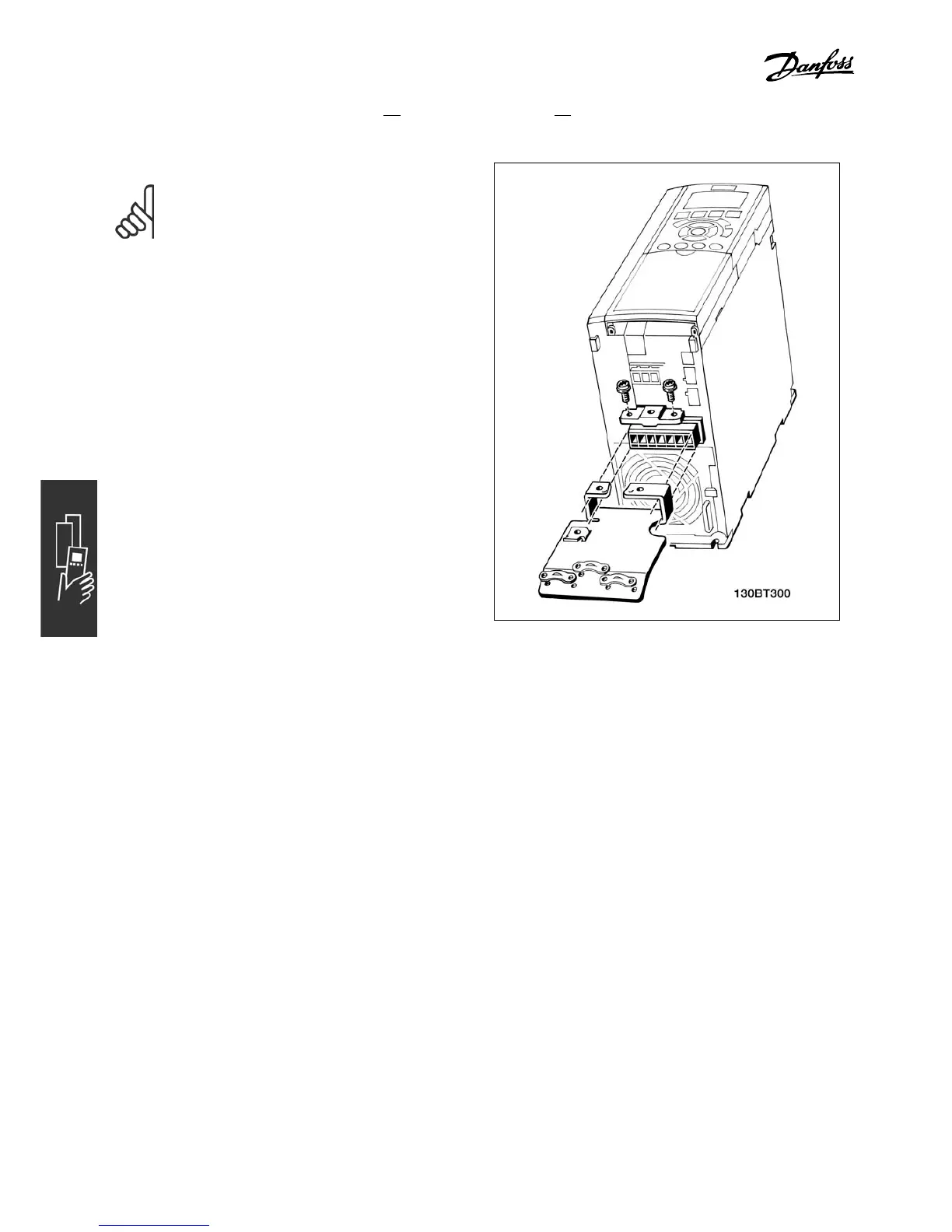

1. Fasten decoupling plate to the bottom
of the FC 300 with screws and washers
from the accessory bag.
2. Attach motor cable to terminals 96 (U),
97 (V), 98 (W).
3. Connect to ground connection (terminal
99) on decoupling plate with screws from
the accessory bag.
4. Insert plug connectors 96 (U), 97 (V), 98 (W)
and motor cable into terminals labele d MOTOR.
5. Fasten shielded cable to decoupling plate with
screws and washers from the acces sory bag.
