FC 300 Instruction Manual
How to Install
" Final Set-Up and Test
To test the set-up a nd ensure that the adjustable frequency drive is running, follow these steps.

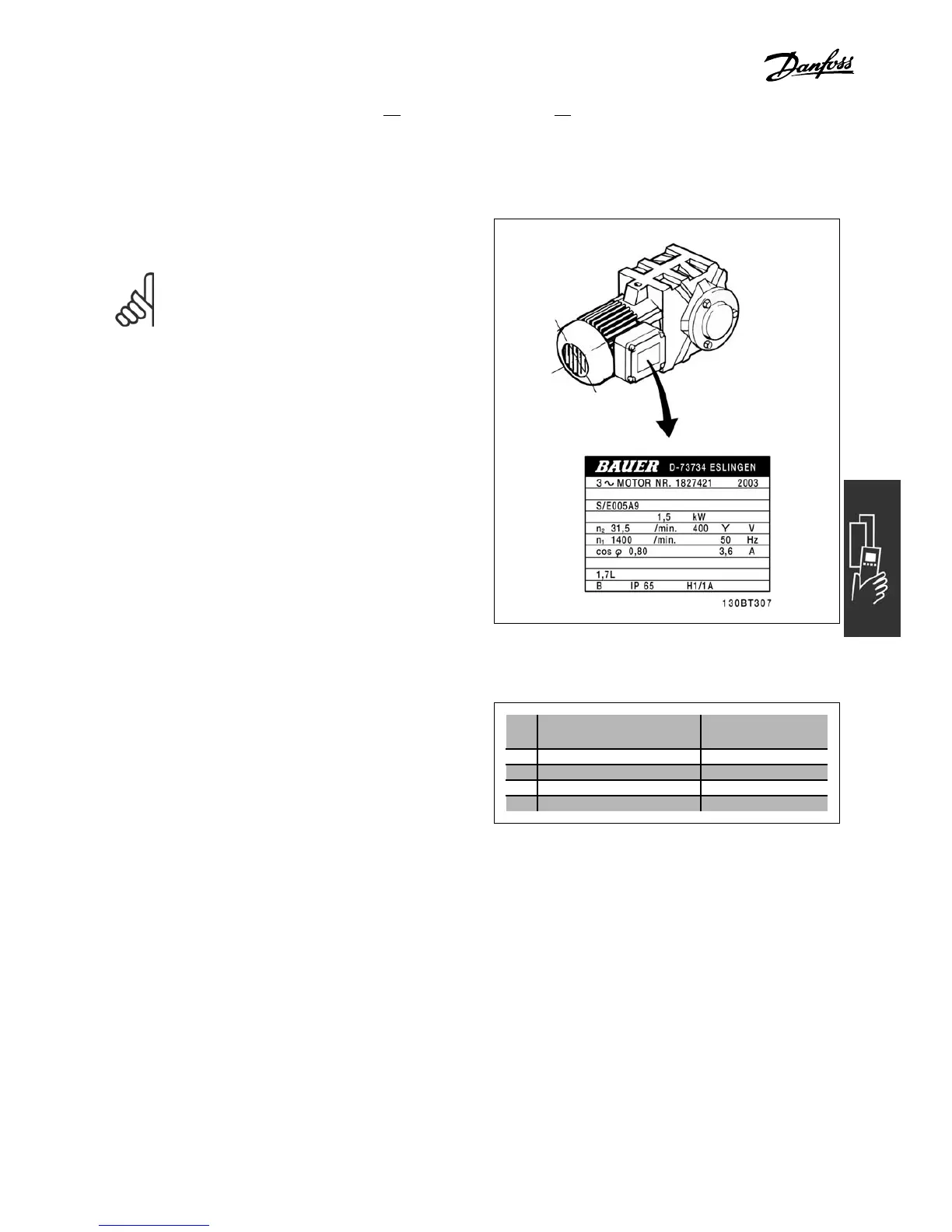

Step 1. Locate the m otor nameplate.
NOTE
The motor is either star- (Y) or
delta-connected (∆). This information is
located on the motor name plate data.
Step 2. Enter the motor nameplate data
in this par ameter list.
To access this list first press the [QUICK MENU]
key, then select “Q2 Quick Setup”.
1. Motor Power [kW]
or Motor Power [HP]
par. 1-20
par. 1-21
2. Motor Voltage par. 1-22
3. Motor Frequency par. 1-23
4. Motor Current par. 1-24
5. Motor Nominal Speed par. 1-25
Step 3. Activate the Automat ic Mot or Adapta tion (A M A)
Performing an AMA will ensure optimum performance. The AMA measures the values
from the motor model equivalent diagram.
1. Connect te rm inal 37 to terminal 12 (FC 302).
2. Connect terminal 27 to terminal 12 or set par. 5-12 to ’No function’ (par. 5-12 [0])
3. Activate the AMA par. 1-29.
4. Choose between complete or reduced A MA. If an LC filter is mounted, run only the reduced
AMA, or remove the LC filter during the AMA procedure.
5. Pressthe[OK]key. Thedisplayshows“Press[Handon]tostart”.
6. Press the [Han d on] key. A progress bar indicates if the AMA is in progress.
29
MG.33.A6.22 - VLT is a registered Danfoss trademark
