How to Install

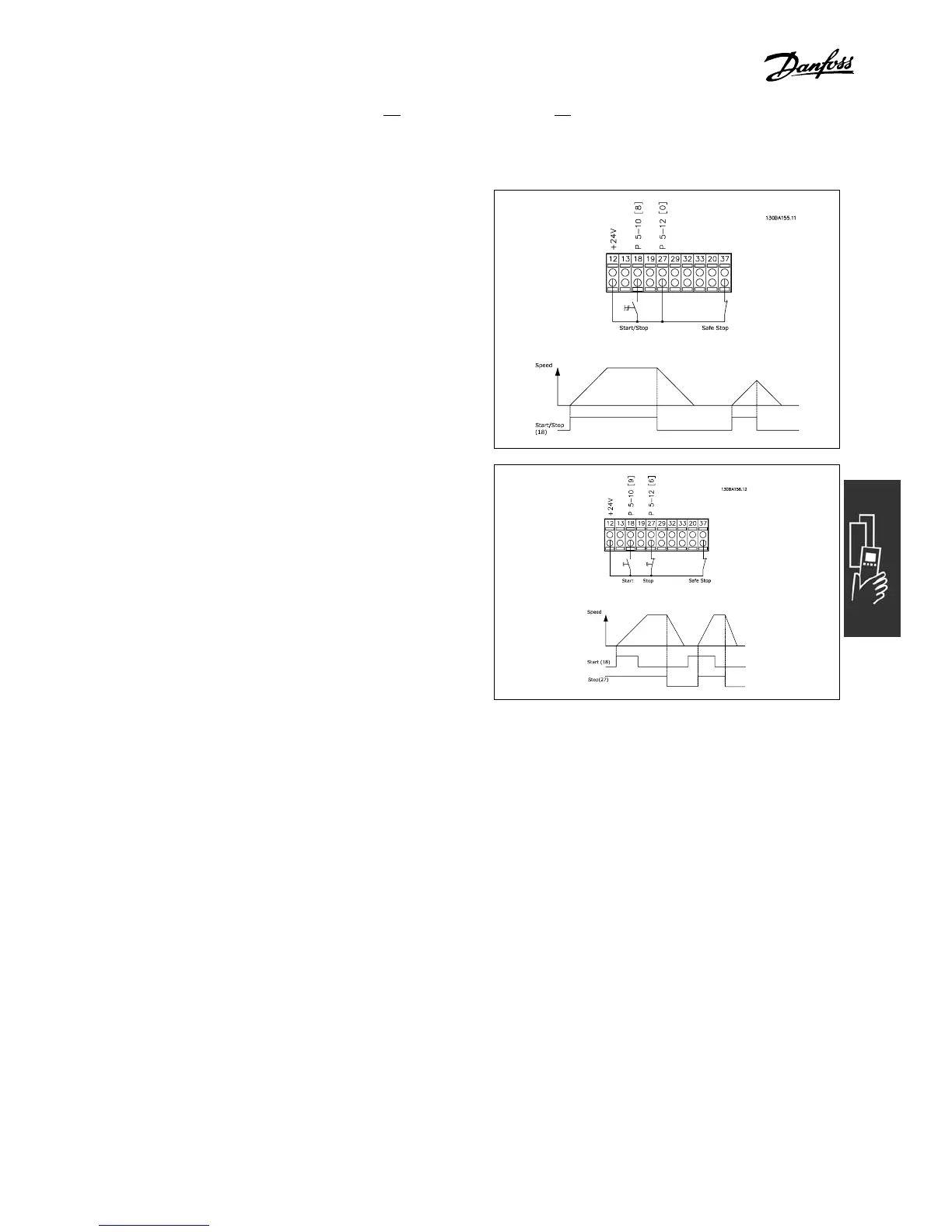

" Connection Examples
" Start/Stop
Terminal 18 = start/stop par. 5-10 [8] Start
Terminal 27 = No operation par. 5-1 2 [0] No
operation (Default coast inverse
Terminal 37 = Safe sto p (FC 302 only)
Par. 5-10 Digital Input = Start (default)
Par. 5-12 Digital Input = coast inverse (d efault)
" Pulse start/stop
Terminal 1 8 = start stop/ par. 5-10 [9 ] Latched start
Terminal 27= Stop par. 5-12 [6] Stop inverse
Terminal 37 = Safe sto p (FC 302 only)
Par. 5 Digital input = Latched start
Par. 5 Digital input = Stop inverse
