FC 300 Instruction Manual
How to Install

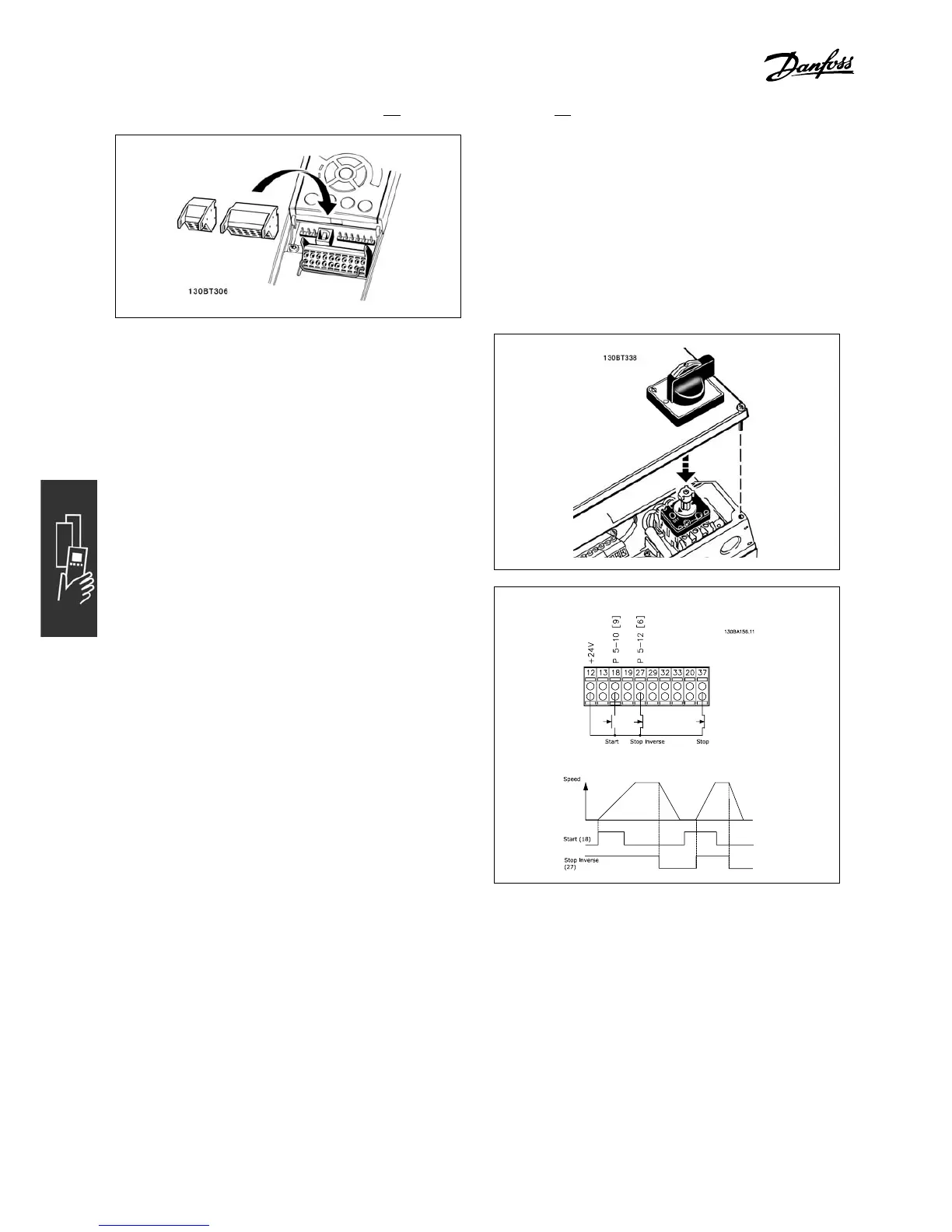

Assembling IP 55 / NEMA TYPE 12 (A5 housing)
with line supply disconnector
" Basic Wiring Example
1. Mount terminals from the accessory bag
to the front of the FC 300.
2. Connect terminals 18
, 27 and 37 (FC 3 02
only) to +24 V (terminal 12/13)
Default settings:
18 = start
27 = coast inverse
37 = safe stop inverse
24
MG.33.A6.22 - VLT is a registered Danfoss trademark
