Danfoss FC 300 Instruction Manual

FC 300 Instruction Manual
How to Install

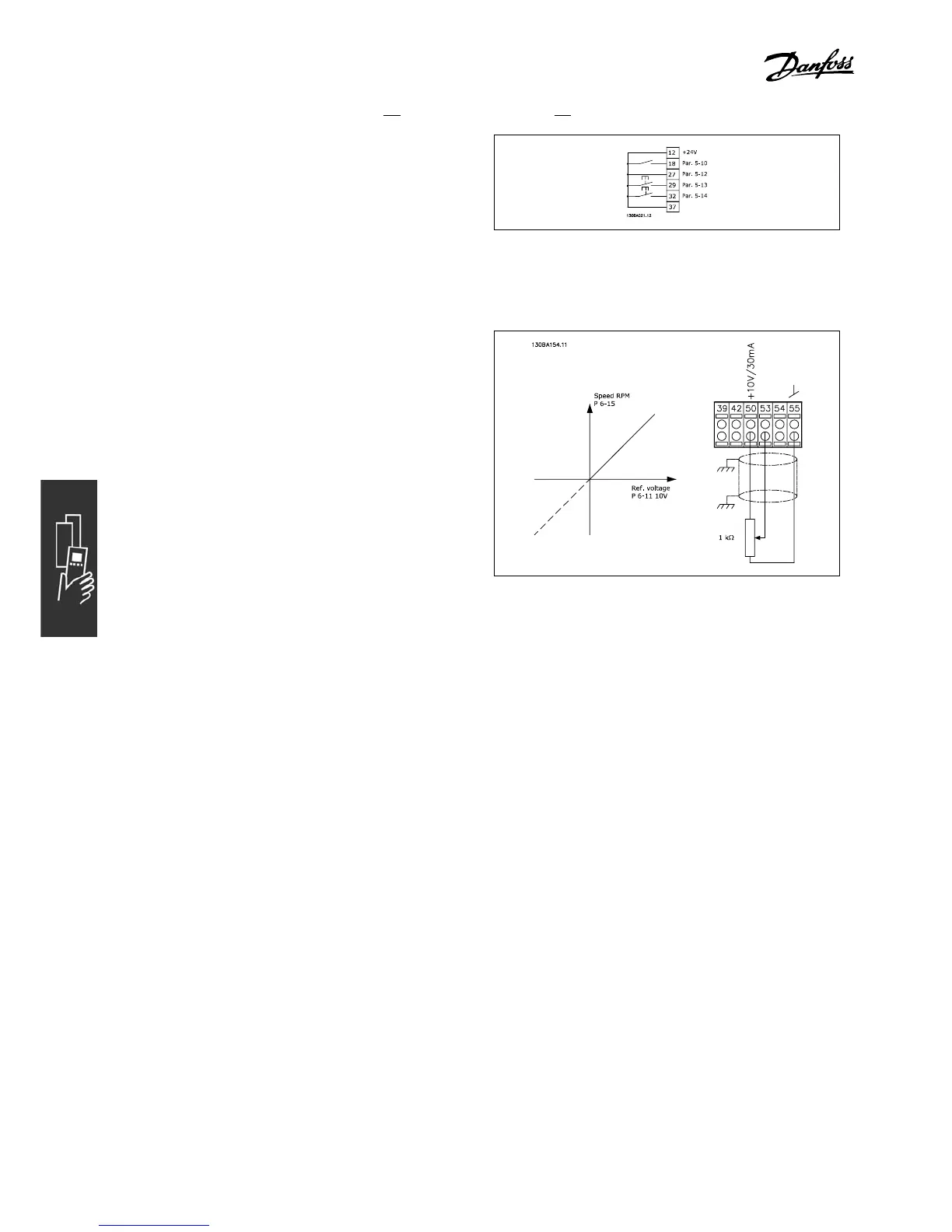

" Speed up/slow down
Terminals 29/32 = Spe ed up/slow down.
Par. 5 Digital input = Pulse start -10
Par. 5 Digital input = Freeze reference -12
Par. 5 Digital input = Speed up -13
Par. 5-14 Digital input = Slow down
Note: Terminal 29 only in FC 302.
" Potentiometer Reference
Voltage reference via a potentiometer.
Par. 3-15 Refere nce Resource 1 [1]
= Analog Input 53
Par. 6-10 Terminal 53, Low Voltage =0Volt
Par. 6-11 Terminal 53, High V oltage =10Volt
Par. 6-14 T erm inal 53, Low Ref./Feedb.
Value Value =0RPM
Par. 6-15 Terminal 53, High Re f./Feedb.
Value Value =1,500RPM
Switch S201 = OFF (U)
26
MG.33.A6.22 - VLT is a registered Danfoss trademark

Danfoss FC 300 Specifications

General

Enclosure	IP20
Approvals	cUL, UL, CE
EMC filter	Built-in
Communication Options	CANopen, PROFIBUS DP
Protection Features	Overcurrent, Overvoltage, Undervoltage, Overtemperature, Short Circuit
Output Voltage	0-100% of supply voltage
