Danfoss FC 300 Instruction Manual

FC 300 Instruction Manual
General Specifications
Voltage level, logic ’0’ NPN
2)
............................................................................................ > 19 V DC
Voltage level, logic ’1’ NPN
2)
............................................................................................. < 14 V DC
Maximum voltage on input ................................................................................................... 28 V DC
Input resistance, R
i
...................................................................................................... approx. 4 kΩ
Safe stop Terminal 37
4)
:
Terminal 37 is fixed PNP logic
Voltage level .................................................................................................................. 0 -24VDC
Voltage level, logic’0’ PNP .................................................................................................... < 4 V DC
Voltage level, logic’1’ PNP ................................................................................................... >20 V DC
Nominal input current at 24 V ........................................................................................... 50 mA rms
Nominal input current at 20 V ........................................................................................... 60 mA rms
Input capacitance .................................................................................................................. 400 nF
All digital inputs are galvanically isolate d from the supply voltage (PELV) and other high-voltag e terminals.
1) Terminals 27 and 29 can a lso b e programmed as output.
2) Exc ept safe stop input Terminal 37.
3) Terminal 37 is only available in the FC 302. It can only be used as safe stop input. Terminal 37 is suitable
for category 3 installations according to EN 954-1 (safe stop according to category 0 EN 60204-1) as
required by the EU Machinery Directive 98/37/EC. Terminal 37 and the Safe Stop function are designed in
conformance with EN 60204-1, EN 50178, EN 61800-2, EN 61800-3, and EN 954-1. For correct and safe
use of the Safe Stop function, follow the related information and instructions in the Design Guide.
4) F C 302 only.
Analog inputs:
Number of analog inputs ................................................................................................................ 2
Terminal number ................................................................................................................... 53, 54
Modes ................................................................................................................. Voltage or current
Mode select .......................................................................................... Switch S201 and switch S202
Voltage mode .............................................................................. Switch S201/switch S202 = OFF (U)
Voltage level .......................................................... FC 301: 0 to + 10 / FC 302: -10 to +10 V (scalable)
Input resistance, R
i
.................................................................................................... approx. 10 kΩ
Max. voltage ........................................................................................................................ ± 20 V
Current mode ................................................................................ Switch S201/switch S202 = ON (I)
Current level ................................................................................................. 0/4 to 20 mA (scalable)
Input resistance, R
i
.................................................................................................... approx. 200 Ω
Max. current ........................................................................................................................ 30 mA
Resolution for analog inputs ......................................................................................... 10 bit (+ sign)
Accuracy of analog inputs ......................................................................... Max. error 0.5% of full scale
Bandwidth ........................................................................................ FC 301: 20 Hz / FC 302: 100 Hz

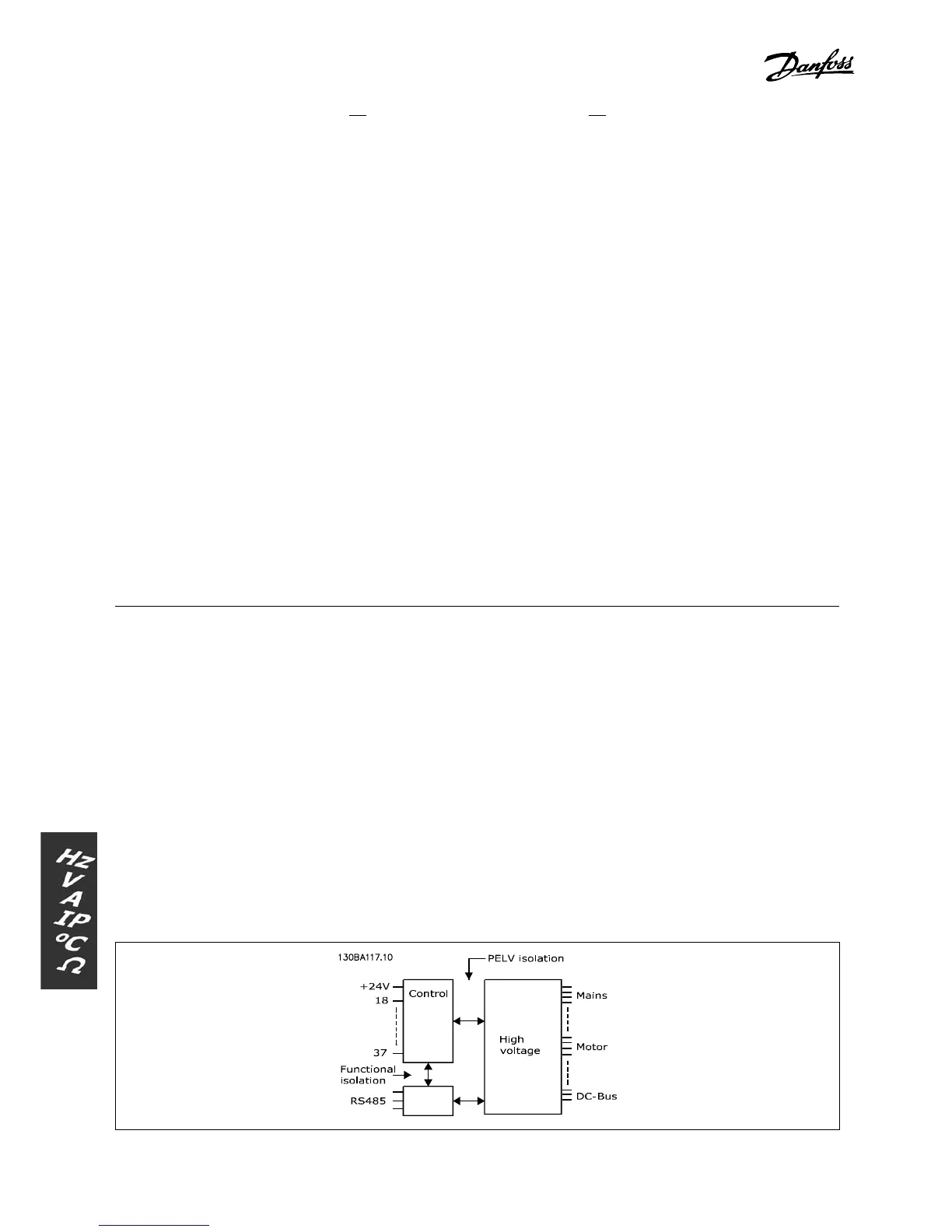

The analog inp uts are galvanically isolated from the supply voltage (PELV) and other high-voltage te rminals.
54
MG.33.A6.22 - VLT is a registered Danfoss trademark

Danfoss FC 300 Specifications

General

Enclosure	IP20
Approvals	cUL, UL, CE
EMC filter	Built-in
Communication Options	CANopen, PROFIBUS DP
Protection Features	Overcurrent, Overvoltage, Undervoltage, Overtemperature, Short Circuit
Output Voltage	0-100% of supply voltage
