FC 300 CANopen
MG.33.J1.02 VER. 050301 – VLT is a registered Danfoss trademark 43

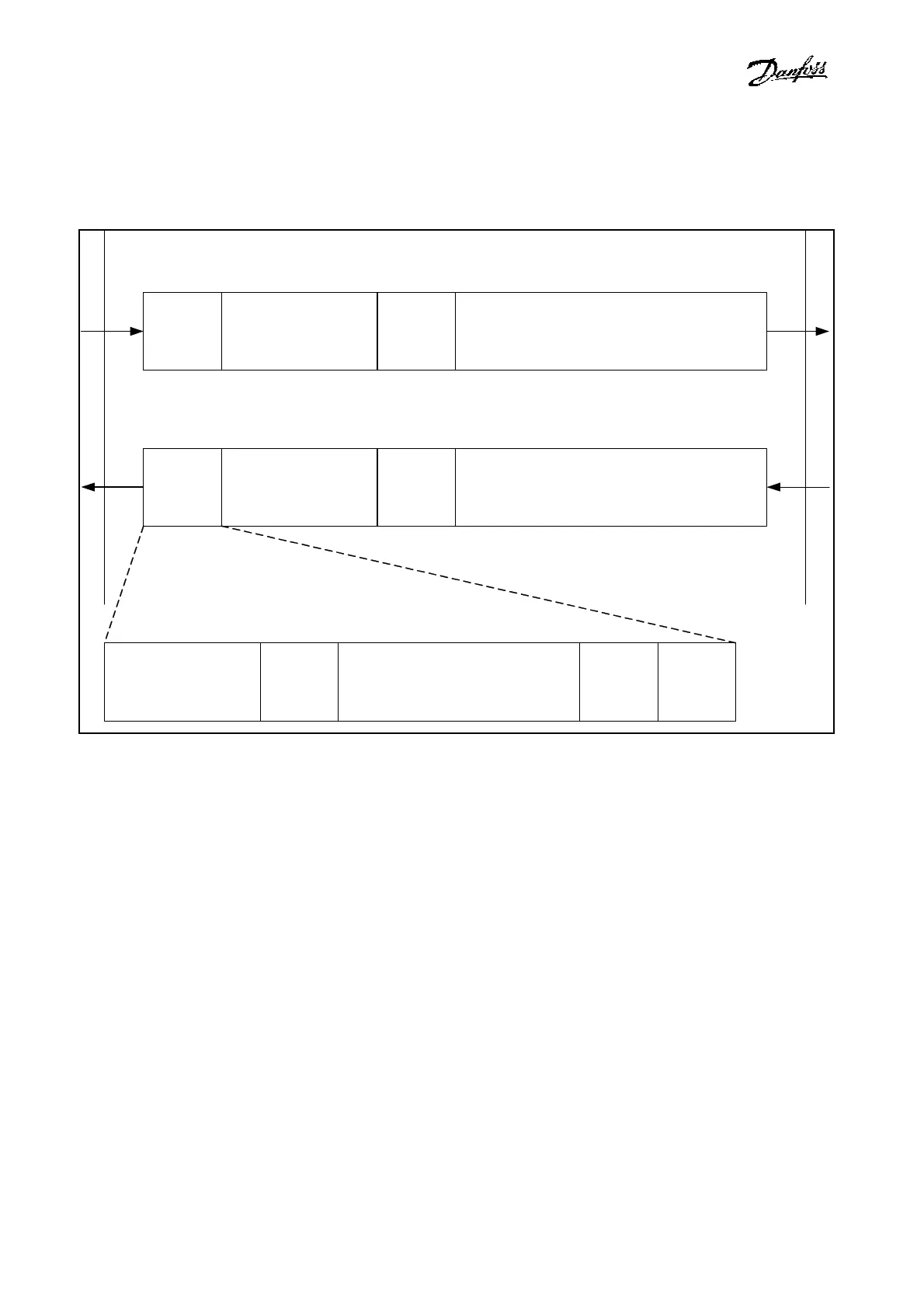

Example: Initiate Upload (read data)
cc
(0x40)
index
sub-
index
reserved (0)
01234567
sc index
sub-
index
data
server command
specifier
0 length
transfer
type
size
indicator
If the transfer type is set to 1, the reply consists only of 1 telegram (“expedited transfer”), i.e. the
amount of transferred data is 0..4 bytes.
If the size indicator is set to 1, and the expedited bit is set, the length field contains the amount of
data, that must be ignored, i.e., if the length is marked with “2”, only the last 2 bytes (6 & 7) of the 8
byte telegram contain relevant data, the other 2 (4 & 5) may contain any (useless) data. Data is left
aligned.

Danfoss FC 300 Specifications

General

Enclosure	IP20
Approvals	cUL, UL, CE
EMC filter	Built-in
Communication Options	CANopen, PROFIBUS DP
Protection Features	Overcurrent, Overvoltage, Undervoltage, Overtemperature, Short Circuit
Output Voltage	0-100% of supply voltage
