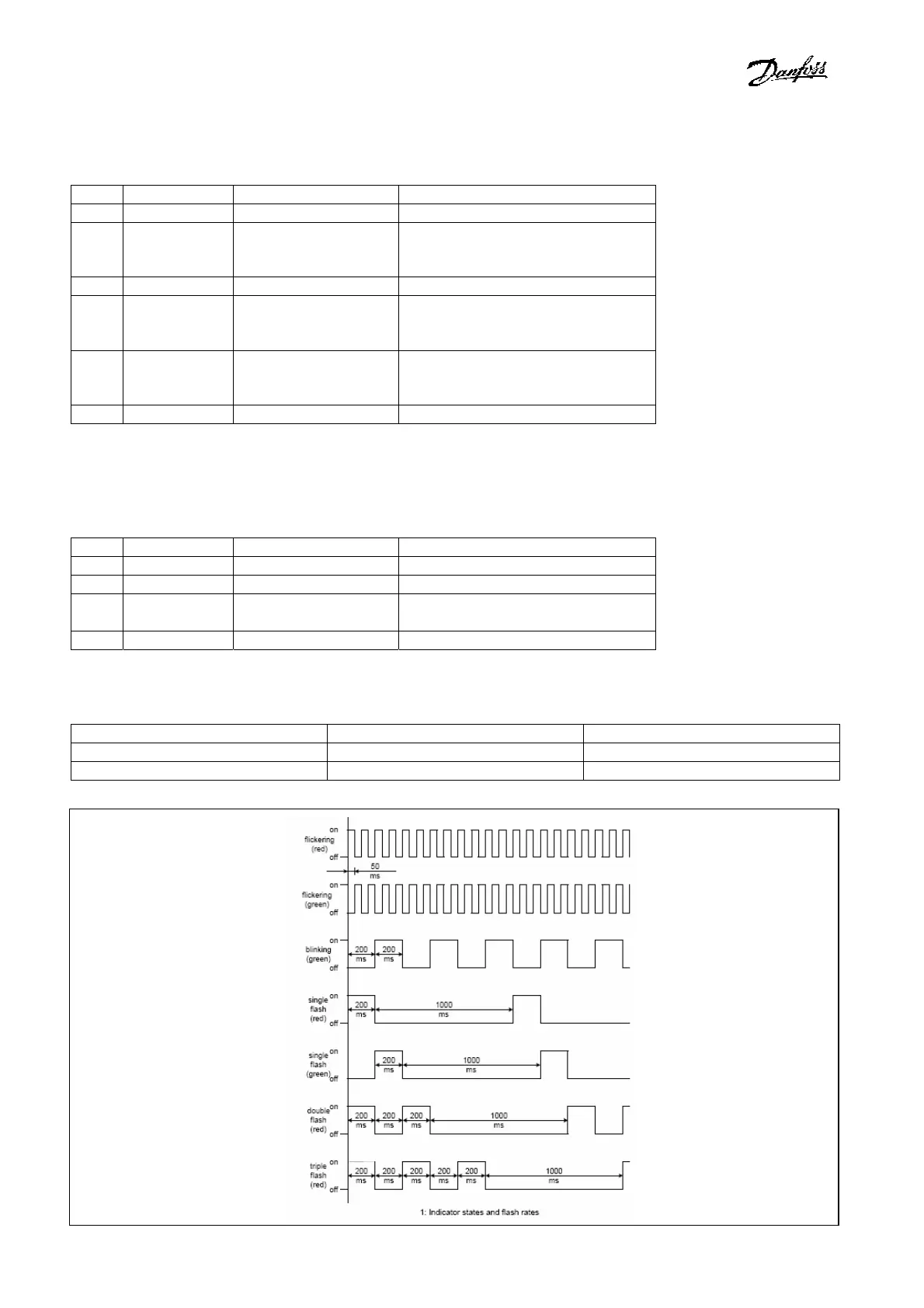

FC 300 CANopen
- T r o u b l e s h o o t i n g -
MG.33.J1.02 VER. 050301 – VLT is a registered Danfoss trademark 53
Error LED / Module Status (MS) LED, red
No LED state device state description
1 Off no error no error
2 single flash warning limit
reached
CAN error counter(s) has
reached / exceeded warning
level
3 Flickering autobaud autobaud in progress
4 double flash error control event guard event (NMT slave) or
heartbeat event (heartbeat
consumer) has occurred
5 triple flash sync error sync message has not been
received within configured
timeout (object 0x1006)
6 On bus off bus off
If more than 1 error has occurred, the one with the highest number will be displayed.
Run LED / Network Status (NS) LED, green
No LED state Device state Description
1 flickering Auto Baud auto baud active
2 single flash stopped device is in stopped state
3 blinking pre-operational device is in pre-operational
state
4 on operational device is in operational state
Other states
State MS LED NS LED
COP initialize error solid red solid red
wait for AOC red/green blinking red/green blinking
