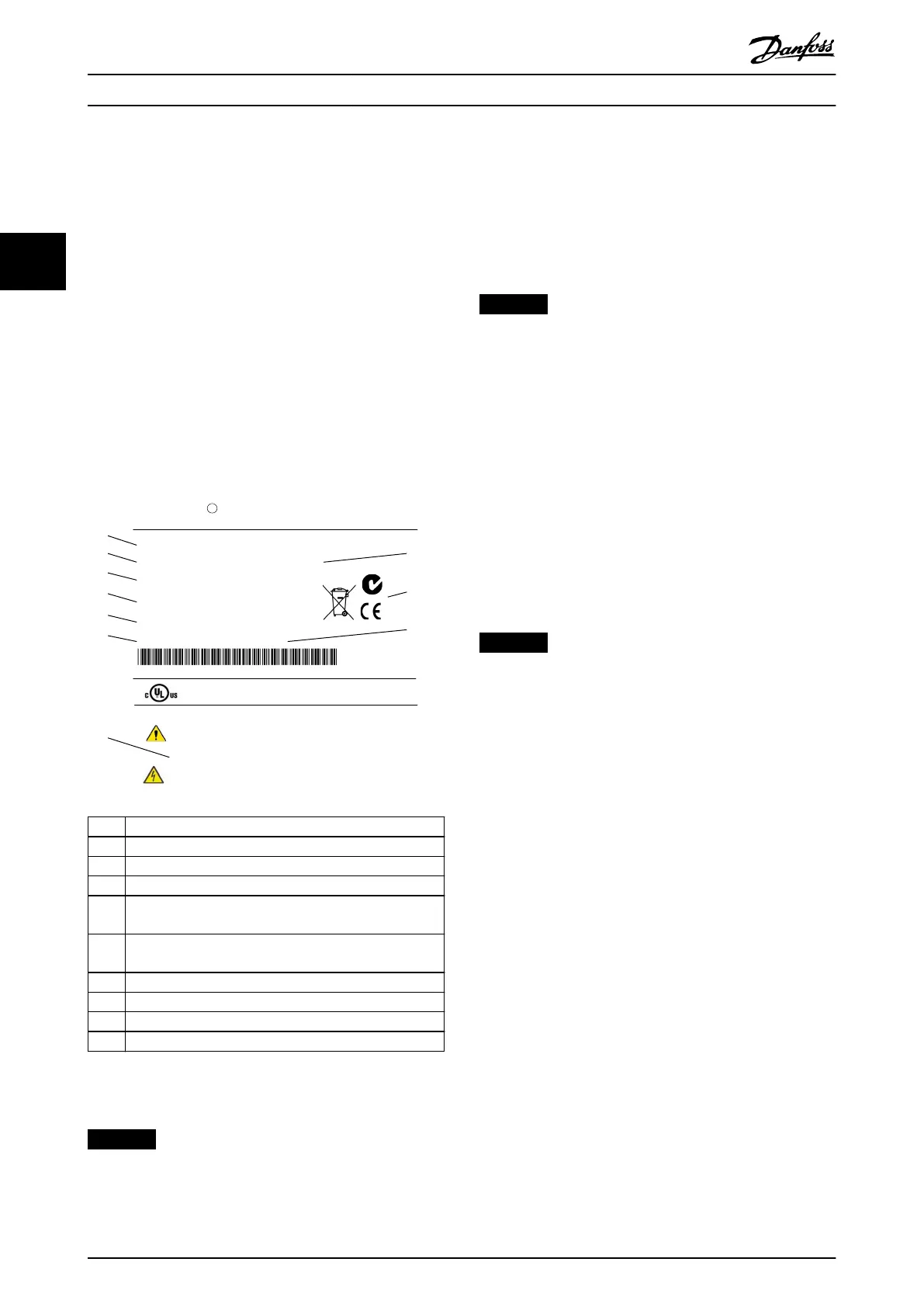

3 Mechanical Installation
3.1 Unpacking
3.1.1 Items Supplied
Items supplied vary according to product conguration.
•
Make sure that the items supplied and the
information on the nameplate correspond to the
order conrmation.
•
Check the packaging and the frequency converter
visually for damage caused by inappropriate
handling during shipment. File any claim for
damage with the carrier. Retain damaged parts
for clarication.
130BD600.11
CHASSIS/ IP20 Tamb.50
C/122 F
V LT
MADE IN DENMARK
R
P/N: 131X3537 S/N: 010122G430
0.37kW/ 0.50HP
IN: 3x200-240V 50/60Hz 2.2A
OUT: 3x0-Vin 0-590Hz 2.4A
o
CAUTION:
See manual for special condition/mains fuse
Voir manual de conditions speclales/fusibles
WARNING:
Stored charge, wait 4 min.
Charge residuelle, attendez 4 min.
* 1 3 1
X
3 5 3 7 0 1 0 1 2 2 G 4 3 0 *
`
Automation Drive
www.danfoss.com
T/C: FC-302PK37T2E20H1BGXXXXSXXXXA6BKC4XXXD0
Listed 76X1 E134261 Ind. Contr. Eq.
o
`
1
2
4
5
6
7
8
9
10
3
1 Type code
2 Code number
3 Serial number
4 Power rating
5
Input voltage, frequency, and current (at low/high
voltages)
6
Output voltage, frequency, and current (at low/high
voltages)
7 Enclosure size and IP rating
8 Maximum ambient temperature
9 Certications
10 Discharge time (Warning)
Illustration 3.1 Product Nameplate (Example)
NOTICE
Do not remove the nameplate from the frequency
converter (loss of warranty).
Ensure that the requirements for storage are fullled. Refer
to chapter 8.4 Ambient Conditions for further details.
3.2 Installation Environments
NOTICE
In environments with airborne liquids, particles, or
corrosive gases, ensure that the IP/type rating of the
equipment matches the installation environment. Failure
to meet requirements for ambient conditions can reduce
the lifetime of the frequency converter. Ensure that
requirements for air humidity, temperature, and altitude
are met.
Vibration and shock
The frequency converter complies with requirements for
units mounted on the walls and oors of production
premises, and in panels bolted to walls or oors.
For detailed ambient conditions specications, refer to
chapter 8.4 Ambient Conditions.
3.3 Mounting
NOTICE
Improper mounting can result in overheating and
reduced performance.
Mechanical Installation
VLT
®
AutomationDrive FC 301/302
8 Danfoss A/S © 05/2018 All rights reserved. MG33AT02
