5.2 Local Control Panel Operation
130BF714.10
Auto
On
Reset
Hand
On
O
Status
Quick
Menu
Main
Menu
Alarm
Log
Back
Cancel
Info
OK
Status
1(1)
36.4 kW
Auto Remote Ramping
0.000
On
Alarm
Warn.
7.83 A
799 RPM
53.2 %
1
2
3
16
17
4
15
14
13
12
5
6
7
8 9 10 11
Key Function
1 The information shown in the display area depends on the selected function or menu (in this case Quick Menu
Q3-13 Display Settings).
2 Status Shows operational information.
3 Quick Menu Allows access to programming parameters for initial set-up instructions and many detailed application instructions.
4 Back Reverts to the previous step or list in the menu structure.
5 Green indicator
light.
Power on.
6 Yellow indicator
light.
The indicator light comes on when a warning is active. A text appears in the display area identifying the problem.
7 Red indicator
light.
A fault condition causes the indicator light to ash, and an alarm text is shown.
8 [Hand On] Puts the frequency converter in local control mode, so that it responds to the LCP.
•
An external stop signal by control input or serial communication overrides the local [Hand On].
9 O Stops the motor but does not remove power to the frequency converter.
10 [Auto On] Puts the system in remote operational mode.
•
Responds to an external start command by control terminals or serial communication.
11 Reset Resets the frequency converter manually after a fault has been cleared.
12 OK Press to access parameter groups or to enable a selection.
13 Navigation Keys Press the navigation keys to move between items in the menu.
14 Info Press for a denition of the function being shown.
15 Cancel Cancels the last change or command as long as the display mode is not changed.
16 Main Menu Allows access to all programming parameters.
17 Alarm Log Shows a list of current warnings, the last 10 alarms, and the maintenance log.

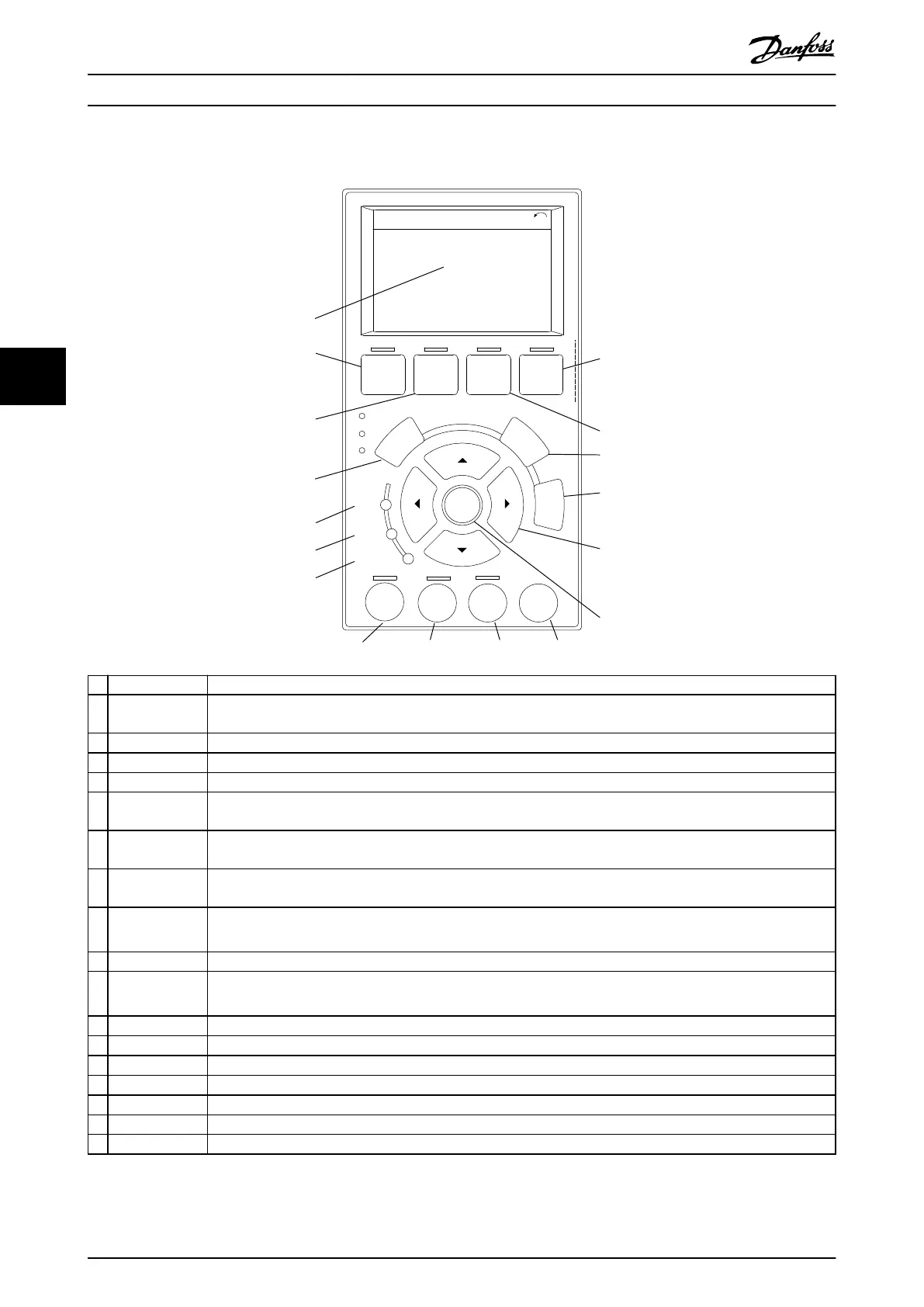

Illustration 5.1 Graphic Local Control Panel (GLCP)
Commissioning
VLT
®
AutomationDrive FC 301/302
18 Danfoss A/S © 05/2018 All rights reserved. MG33AT02
