Danfoss FC 301 Operating Guide

130BC500.10
FC 1
FC 1
FC 2
FC 2
FC 3
FC 3
PE
PE

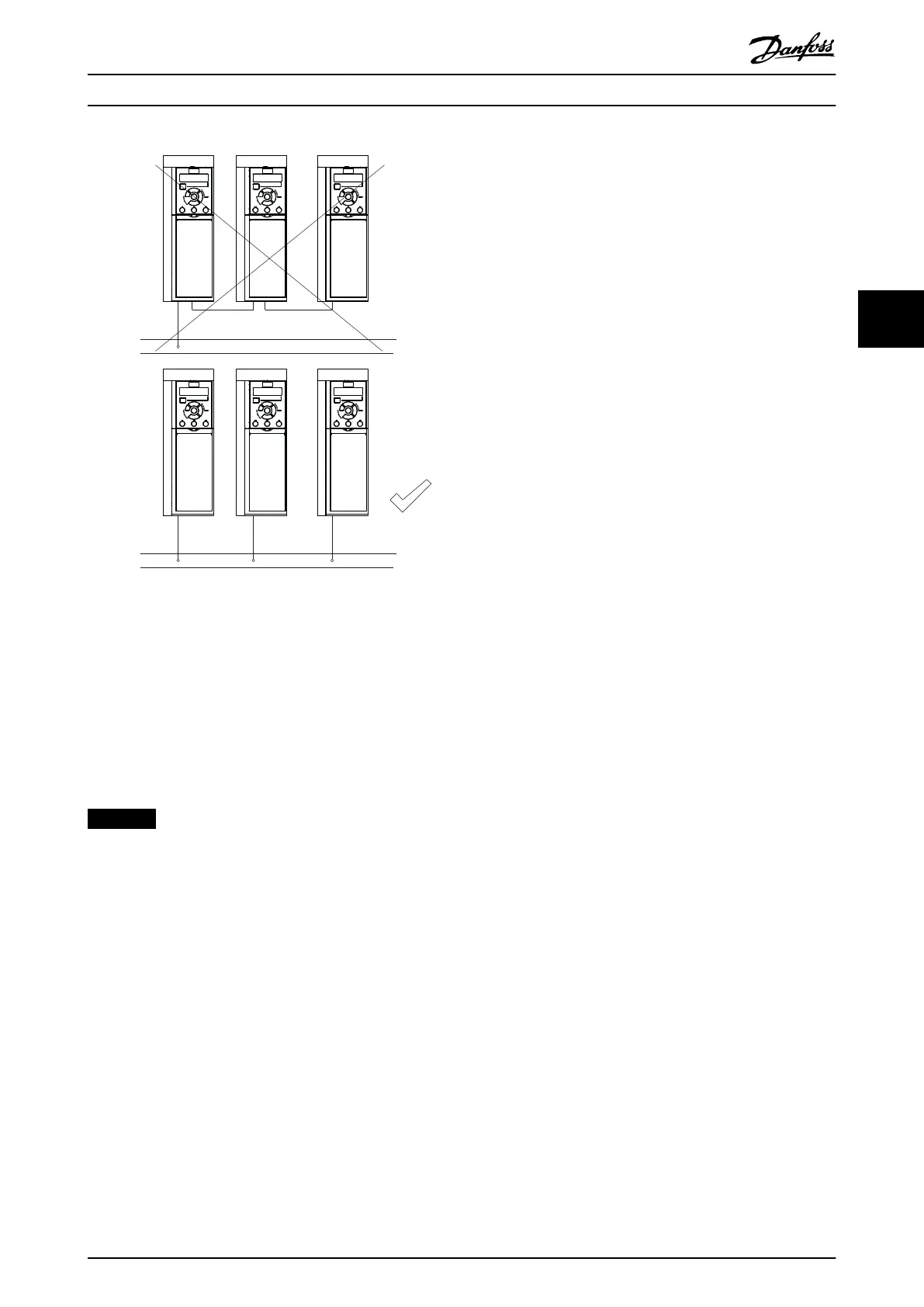

Illustration 4.1 Grounding Principle
For EMC-compliant installation
•
Establish electrical contact between the cable
shield and the frequency converter enclosure by
using metal cable glands or by using the clamps
provided on the equipment (see chapter 4.5 Motor
Connection).
•
Use high-strand wire to reduce burst transient.
•
Do not use pigtails.
NOTICE
POTENTIAL EQUALIZATION
Risk of burst transient when the ground potential
between the frequency converter and the control system
is dierent. Install equalizing cables between the system
components. Recommended cable cross-section: 16 mm
2
(6 AWG).
Electrical Installation Operating Guide
MG33AT02 Danfoss A/S © 05/2018 All rights reserved. 11
4 4

Danfoss FC 301 Specifications

General

Type	AC Drive
Output frequency	0-1000 Hz
Enclosure rating	IP20, IP21, IP55
Control method	Sensorless vector control
Communication options	RS-485, CANopen, Profibus DP
Ambient temperature	-10°C to +50°C
Supply voltage	200-240 V, 380-500 V, 525-690 V
Protection class	IP20, IP21, IP55
Cooling method	Forced air
Relative humidity	5% to 95% (non-condensing)
Storage temperature range	-25 to 70 °C (-13 to 158 °F)
