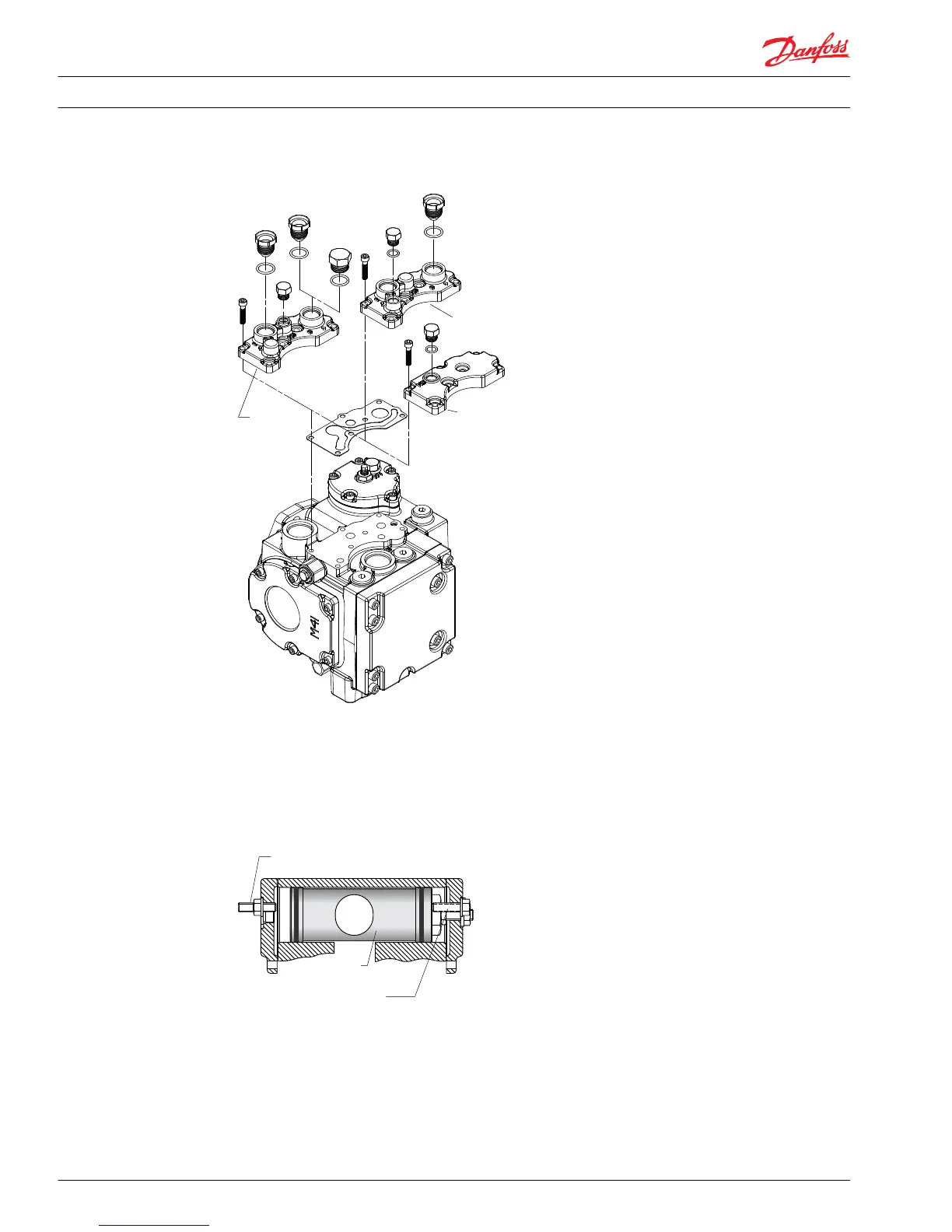

Filtration adapters
Displacement limiters
Series 42 pumps are available with mechanical displacement limiters in the servo covers. The
displacement limiters can limit displacement of the pump to any value from maximum to zero in either
direction.
Displacement limiters
Displacement limiter
(factory set for maximum displacement)
Displacement limiter
(set for reduced maximum displacement)
Servo control
cylinder
Charge check / high pressure relief valves
All series 42 pumps have a combination charge check/high pressure relief valve. The charge check
function allows pressurized flow from the charge pump to enter the low pressure side of the loop. This
flow is necessary to replenish fluid discharged to the pump/motor case for lubrication and cooling
requirements. Since the pump can operate in either direction, it uses two charge check valves to direct
the charge supply into the low pressure side.
Service Manual
Series 42 Axial Piston Closed Circuit Pumps
Functional Description
14 520L0638 • Rev 0300July 2015
