No charge pump option components
R020
G023
G020
G010
U015
G006
R020A
G004
Charge inlet
Charge inlet
G004
R086
T
o filter
P108 093E

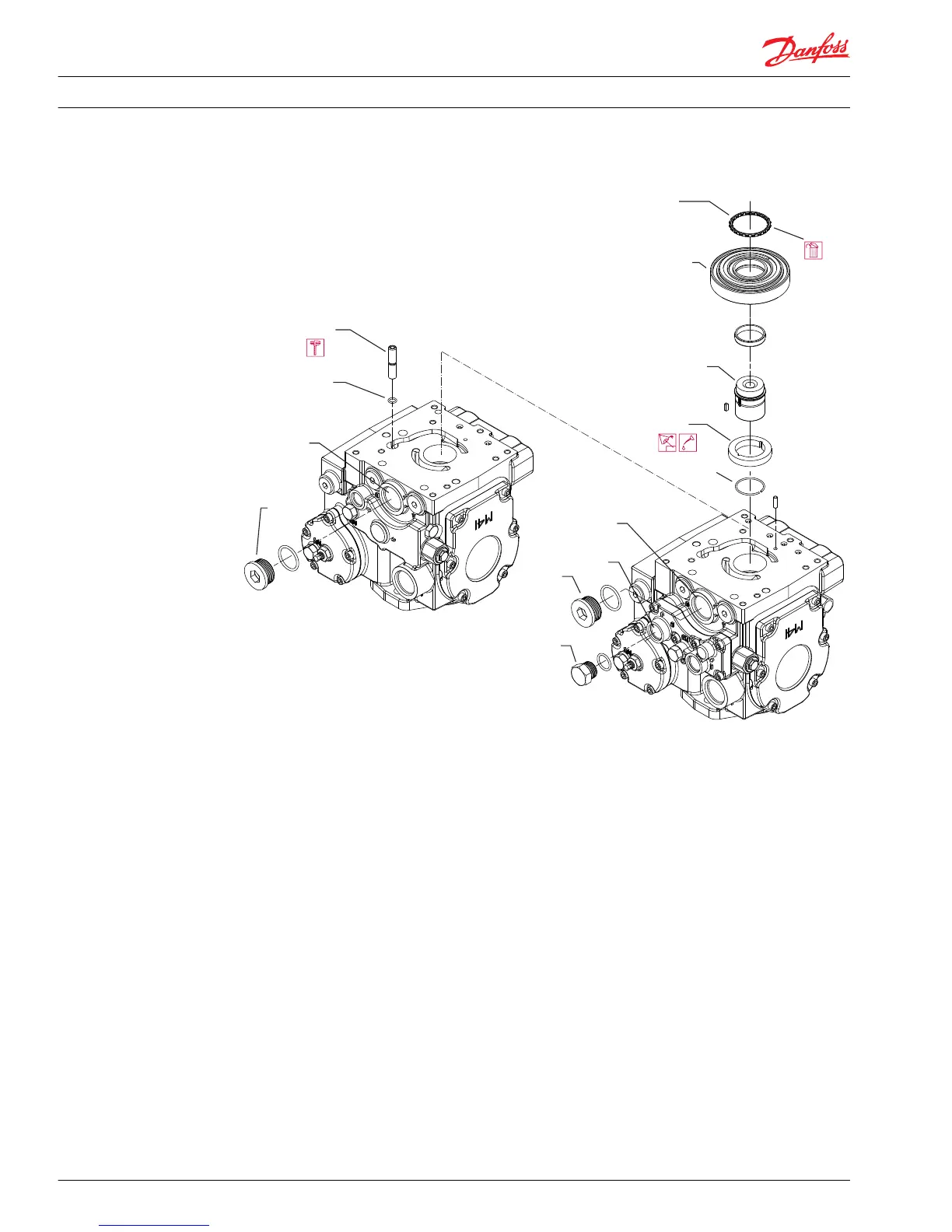

Housing with filtration adapter (left)
Housing without filtration adapter (right)
Servo piston covers and NFPH control orifice
You can remove the servo piston covers to change the gasket or to inspect/change the NFPH control
orifices.
Service Manual
Series 42 Axial Piston Closed Circuit Pumps
Minor Repair
60
520L0638 •
Rev 0300
•
July 2015
59
61
Table of Contents
Default Chapter
3
Table of Contents
3
July
5
Overview
5
Warranty
5
General Instructions
5
Safety Precautions
6
Symbols Used in Danfoss Literature
7
1998 Model Release
8
Overview
8
Description of Change
8
Functional Description
9
Overview
9
General Description and Cross-Sectional View
9
The System Circuit
10
Pump Features
10
Filtration Options
12
Displacement Limiters
14
Charge Check / High Pressure Relief Valves
14
Bypass Valves
15
Auxiliary Mounting Pads
15
Control Options
17
Manual Displacement Control (MDC)
17
Electrical Displacement Control (EDC)
17
High Current Electrical Displacement Control (HC-EDC)
18
Non-Feedback Proportional Hydraulic (NFPH) Control
18
Non-Feedback Proportional Electric (NFPE) Control
19
Forward-Neutral-Reverse (FNR) Three-Position Electric Control
20
Technical Specifications
22
Specifications
22
Pressure Measurement
23
Required Tools
23
Port Locations and Pressure Gauge Installation
23
Ports and Pressure Gauges
23
Initial Start-Up Procedure
25
General
25
Start-Up Procedure
25
Fluid and Filter Maintenance
26
Recommendations
26
Troubleshooting
27
Overview
27
System Operating Hot
27
System Response Is Sluggish
27
System will Not Operate in Either Direction
28
System will Not Operate in One Direction
29
Neutral Difficult or Impossible to Find
29
Adjustments
30
Overview
30
Displacement Limiter Adjustment
30
Pump Neutral Adjustment
32
Control Neutral Adjustment for MDC and EDC/HC-EDC
33
Minor Repair
35
Standard Procedures
35
Size and Torque for Plugs and Fittings
35
Charge Relief Valve
37
Optional Speed Sensor
39
MDC Module
40
HC-EDC and EDC Module
43
MDC/EDC Spool, Linkage, and Neutral Adjustment Screw
44
MDC Neutral Start / Backup Alarm Switch
46
MDC Solenoid Override Valve
49
FNR, NFPE, and NFPH Controls (Bolt-On Valves)
51
FNR, NFPE, and NFPH Controls (Integral Valves)
52
System Check Relief (SCR) Valves (High Pressure Relief, Charge Check, and Bypass Valves)
53
Auxiliary Pad/Charge Pump Cover
55
Charge Pump
57
Servo Piston Covers and NFPH Control Orifice
60
Loop Flushing and Loop Flushing Relief Valve
62
Shaft Seal, Roller Bearing, and Shaft Replacement
64
Appendix A - Torques
68
Torque Table
68
Appendix B - Specification Tags
70
Pre-Block Point Change
70
Post-Block Point Change
71
Appendix C - Nomenclature
72
Pre-Block Point Change Nomenclature
72
Post-Block Point Change Nomenclature
73
