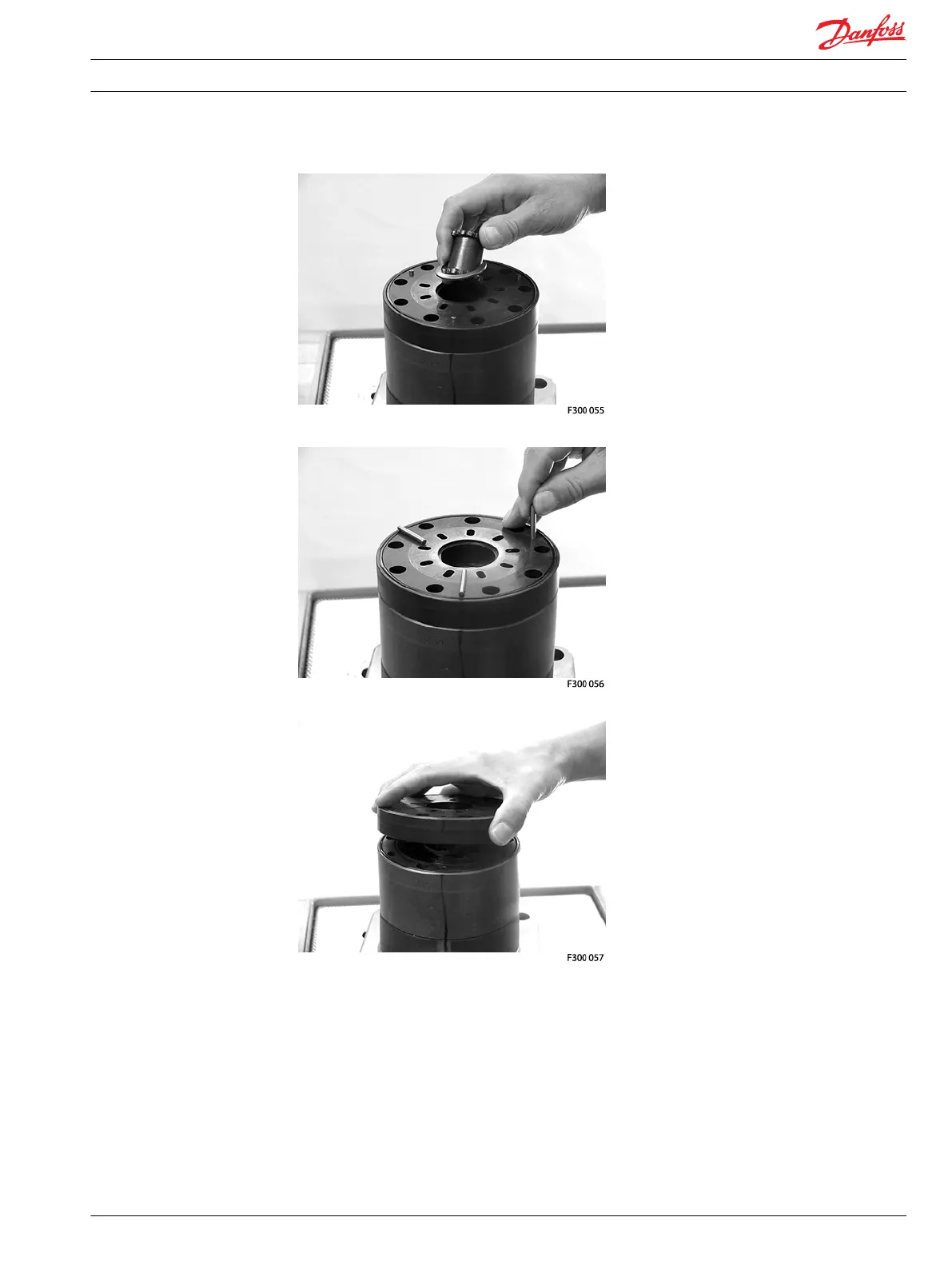

8. Remove the three guide pins (16) from channel plate (17).
9. Separate channel plate (17) from gear wheel set (15).
10. Take out gear wheel set (15).
Repair Instruction
Orbital Motors TMT, TMT FL and TMT W FL
TMT Disassembly
