Warning
Note that the rollers in the gear wheel set can fall out!

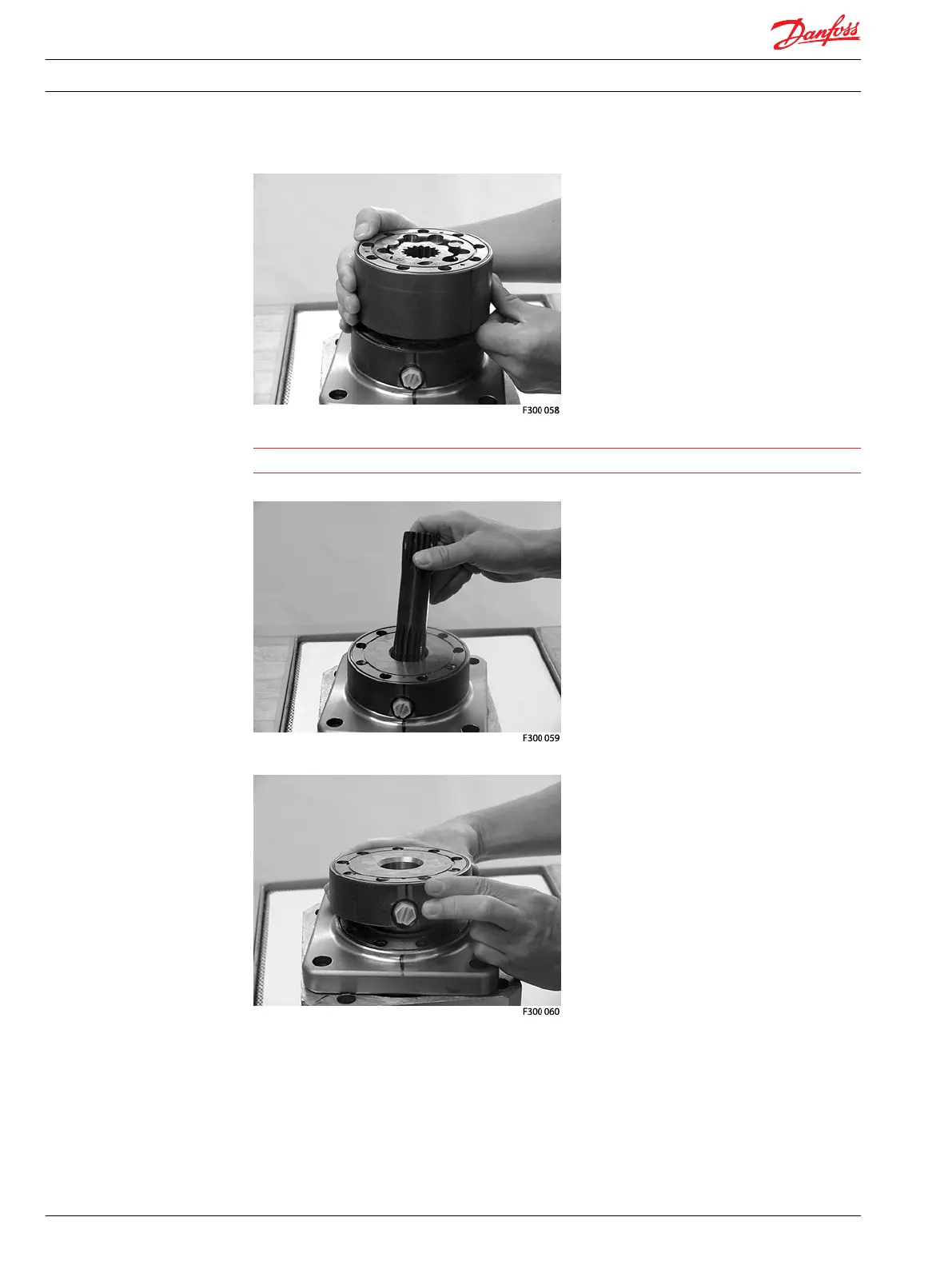

11. Separate cardan shaft (14) from output shaft (11).
12. Take out motor flange (13) from bearing housing (1 or 4).
13. Fix bearing housing in a hydraulic press, and push output shaft with bearings out of housing.
Repair Instruction
Orbital Motors TMT, TMT FL and TMT W FL
TMT Disassembly
34 520L0351 • Rev EA • Feb 2014
