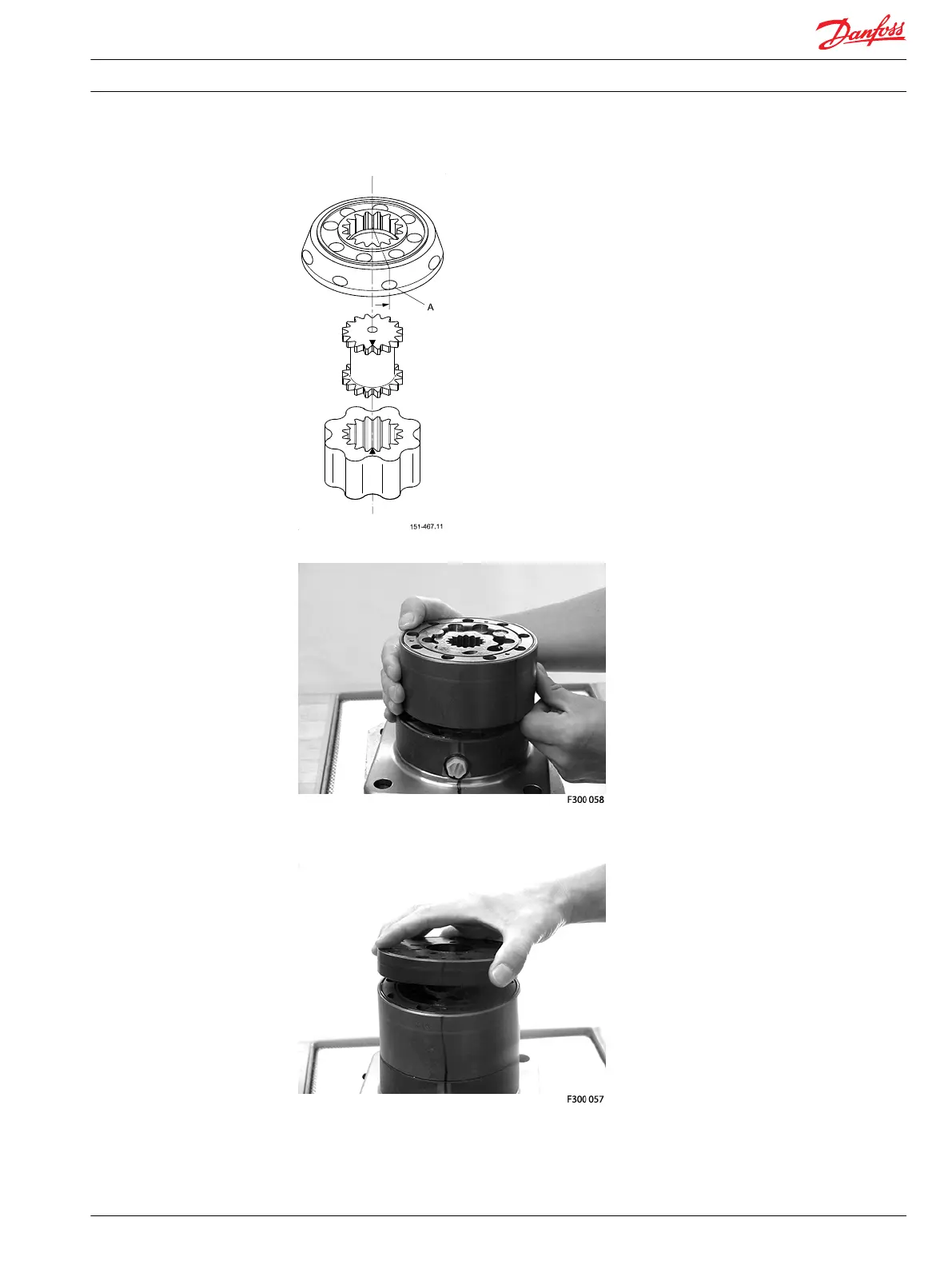

7. Install gear wheel set (15) (use marks to ensure alignment)
Remember a new O-ring!
8. Fit channel plate (17) onto gear wheel set (use marks to ensure alignment).
Remember a new O-ring!
9. Install the three guide pins (16).
Repair Instruction
Orbital Motors TMT, TMT FL and TMT W FL
Assembly of TMT
520L0351 • Rev EA • Feb 2014 45
