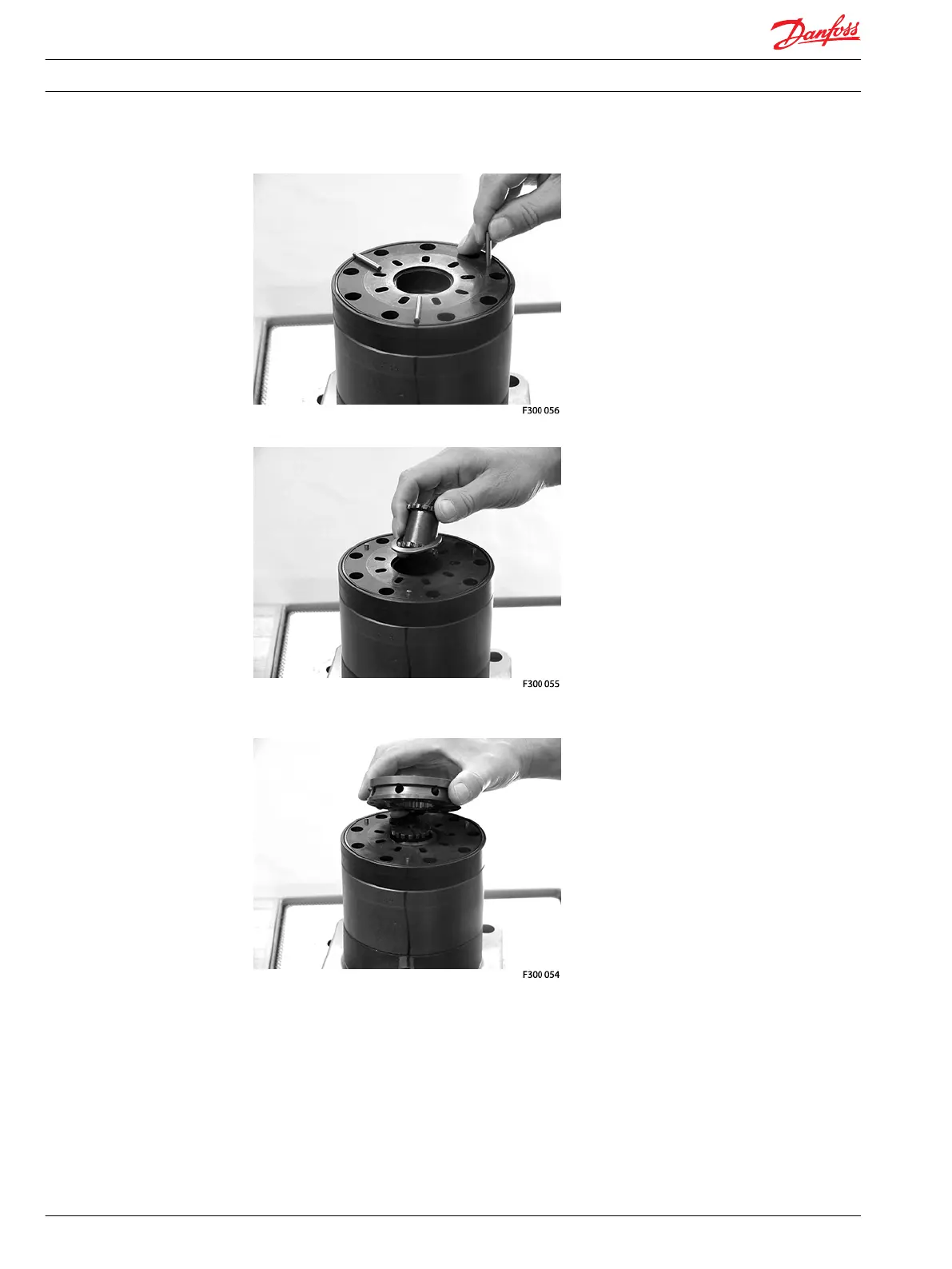

10. Install drive shaft (18) in gear wheel splines. Fix valve drive with stop ring (19).
11. Put distributor valve (20) onto drive shaft. Make sure that the motor is correctly timed (see the sketch,
page 30).
12. Mount end cover (including balance plate, spacer, O-ring and backup ring).
Repair Instruction
Orbital Motors TMT, TMT FL and TMT W FL
Assembly of TMT
46 520L0351 • Rev EA • Feb 2014
