Monitor Program Data and Controls
34 Danfoss Turbocor Compressors Inc.
ECD-00007M Rev. 1
Chiller Interface module. Similarly, the “EXV#2 Control
Settings” controls the stepper motor connected to “EXV2”
on the Chiller Interface module. Table 12 describes the
stepper motor control parameters.
To access the analog output controls, select the “Analogue
Output” tab. The “Analog Output Controls” controls the
output labeled “Analog” on the Chiller Interface module.
Table 13 describes the analog output control parameters.
NOTE:
The measurement unit (metric/imperial) displayed depends
on the measurement unit previously set. To verify or change
the measurement unit, refer to section 6.3 "Compressor
Control" on page 23.
IMPORTANT:
To change a parameter setting, double-click the variable
field, scroll or type in the new setting, and press Enter. It is
important to press Enter as this causes the user input to be
validated.

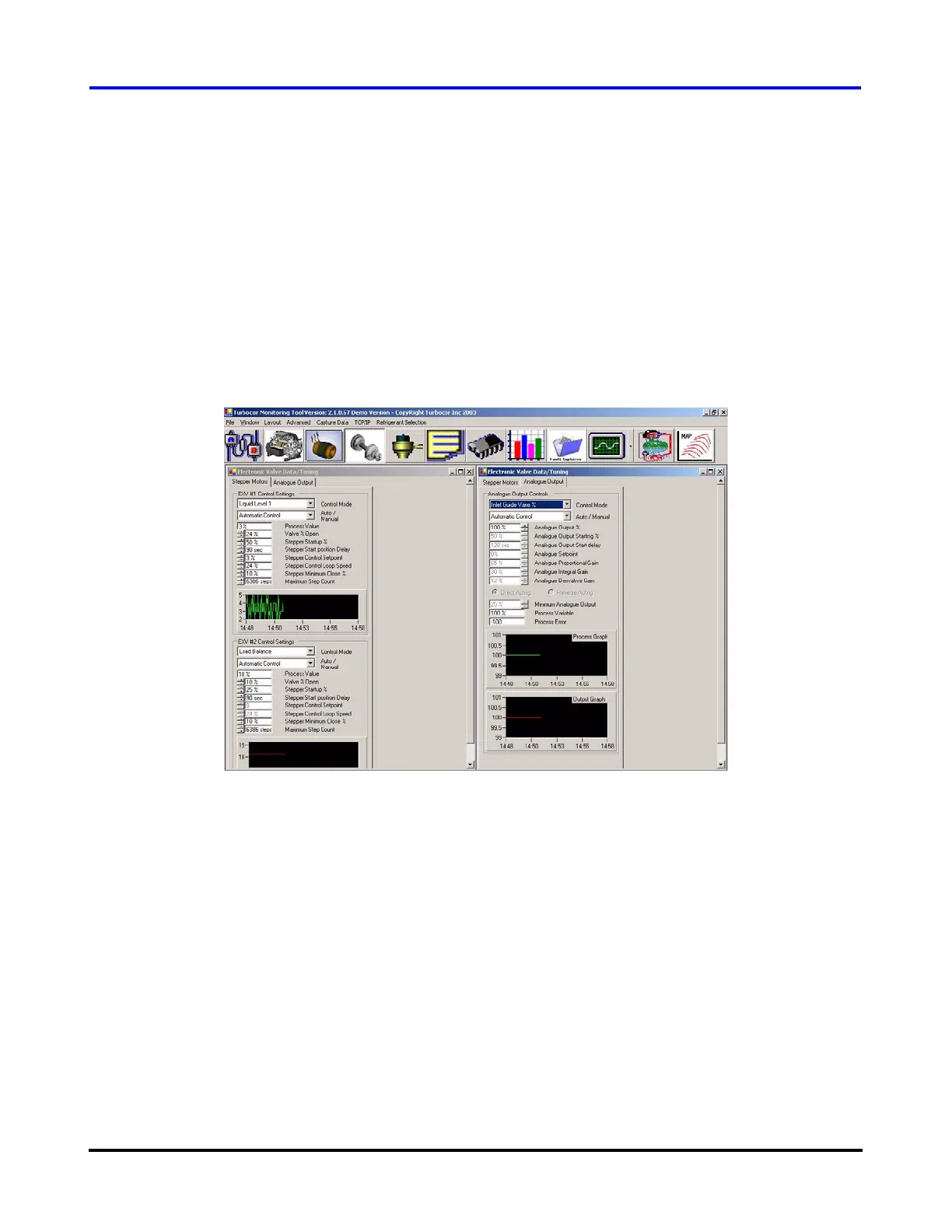

Figure 27 Electronic Valve Data / Tuning Form
To Next Page
