Monitor Program Data and Controls
54 Danfoss Turbocor Compressors Inc.
ECD-00007M Rev. 1
down menu. All graphs may be cleared simultaneously by
clicking on “Reset Graphs” located on the menu bar.
When the “Graphs” window is closed, all parameters
selected for graphing are automatically saved to a .csv data
file, and may be viewed using a spreadsheet editor such as
Microsoft® Excel. Each data file is limited by a maximum
file size of 32,768 (2
15
) lines of data. The data file is named
“Turbocor Service Monitoring Software#.csv”, where # is a
unique file number automatically assigned. The data file is
stored in the “$Turbocor_Install_Dir\Turbocor Inc”
directory (typically “C:\Program Files\Turbocor Inc”). Data
files left in the “$Turbocor_Install_Dir\Turbocor Inc” for
more than 15 days are automatically deleted.
The parameters plotted may be played back by loading the
stored data file. From the “File” menu, select “Open”. Go to
the “$Turbocor_Install_Dir\Turbocor Inc” directory, select
the desired .csv data file to be loaded, and click on “Open”.
The stored data begins to playback on the graphs. The
playback speed may be adjusted from the “PlayBackSpeed”
menu.
NOTE:
The measurement unit (metric/imperial) displayed depends
on the measurement unit previously set. To verify or change
the measurement unit, refer to section 6.3 "Compressor
Control" on page 23.

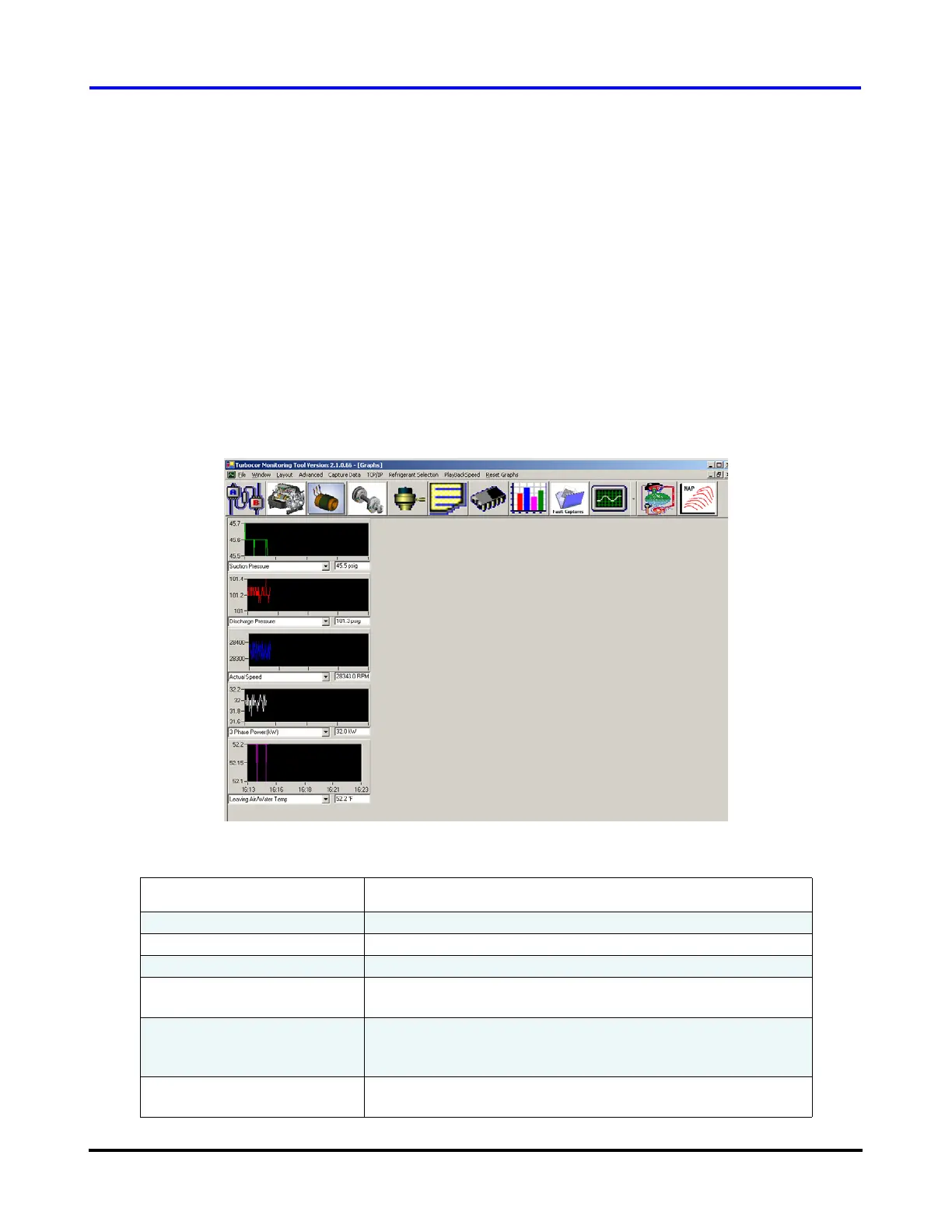

Figure 40 Trending (Chart 1)
Table 21 Trending Parameters
Parameter Description
3 Phase Voltage 3-phase AC input voltage (mains input)
3 Phase Amps 3-phase AC input current (mains input)
DC Bus Voltage DC Bus Voltage as measured at the inverter
Compressor Demand Requested motor power demand as a percentage of the
maximum motor power [kW].
IGV Position % of Inlet guide vane opening, 0.0% means the vanes are at
90º to the pipe line (Fully closed). 110% means 10º over turned
from fully open.
Suction Pressure The actual suction gauge pressure at the compressor flange
as measured by the suction pressure transducer.
