Danfoss VLT AAF006 User Manual

[Status]
Indicates the status of the active filter. Use [Status] for
selecting display mode or reverting to display mode from:
•
Quick menu.
•
Main menu.
•
Alarm mode.
Press the [Status] key to toggle single or double readout
mode.
[Quick Menu]
The quick menu allows quick set-up of the frequency
converter or the filter and programming of the most
common functions.
The [Quick Menu] consists of:
•
Q1: My personal menu.
•
Q2: Quick set-up.
•
Q5: Changes made.
•
Q6: Loggings.
The active filter LCP displays information about operation
such as THD of current, corrected current, injected current
or Cos ϕ, and true power factor.
The Quick Menu parameters can be accessed immediately
unless a password has been created via parameters 0-60,
0-61, 0-65 or 0-66.
It is possible to switch directly between Quick Menu mode
and Main Menu mode.
[Main Menu]
The main menu is used for programming all parameters.
The Main Menu parameters can be accessed immediately
unless a password has been created via parameters 0-60,
0-61, 0-65 or 0-66.
It is possible to switch directly between Main Menu mode
and Quick Menu mode.
A parameter shortcut can be carried out by pressing down
[Main Menu] for 3 s. The parameter shortcut allows direct
access to any parameter.
[Alarm Log]
The alarm log displays an alarm list of the 5 latest alarms
(numbered A1-A5). To obtain more details about an alarm,
press the navigation keys to navigate to the alarm number
and press [OK]. Information is displayed about the
condition of the frequency converter or filter before it
enters the alarm mode.
[Back]
The back key reverts to the previous step or layer in the
navigation structure.
B
a
c
k

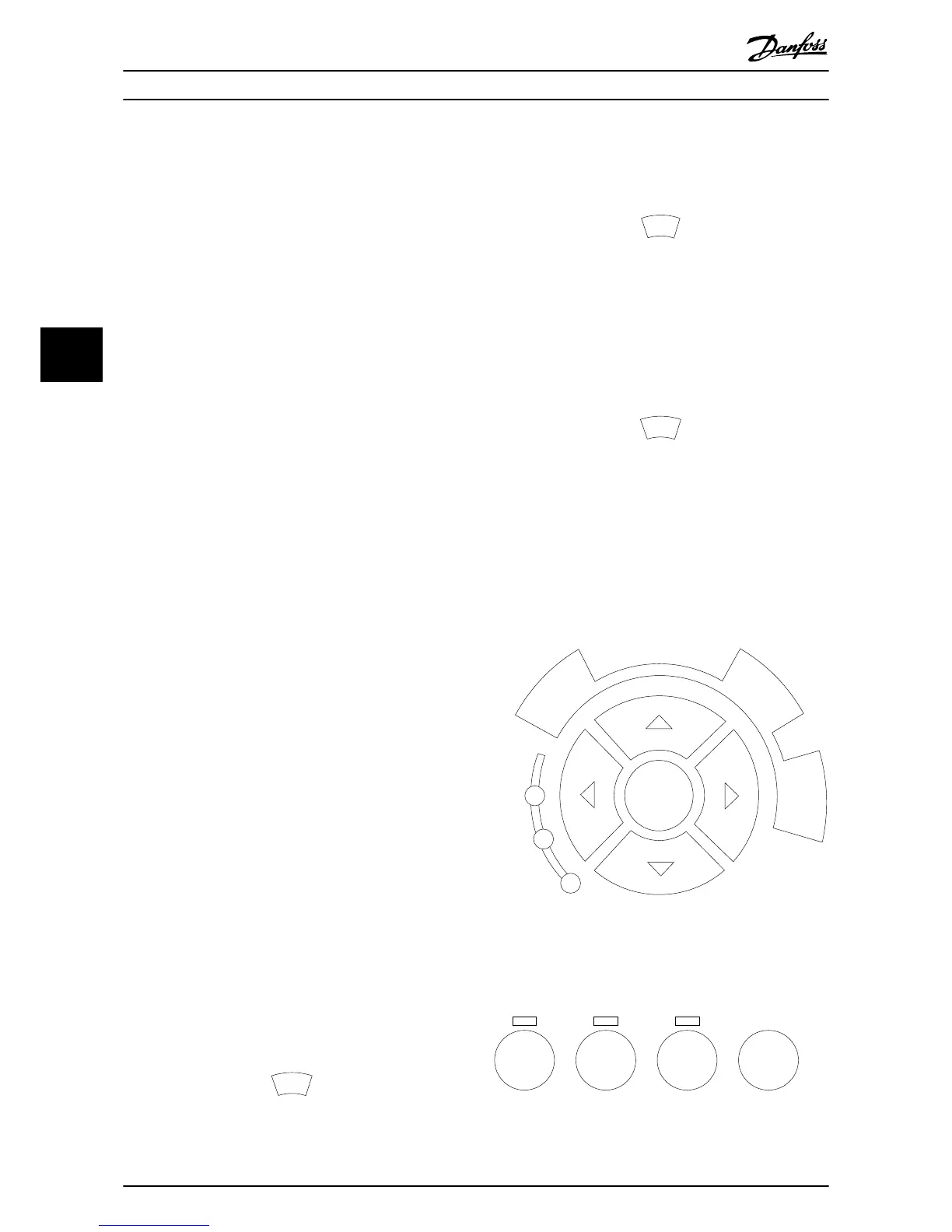

Illustration 5.7 Back Key
[Cancel]
The last change or command is cancelled as long as the
display has not been changed.
C
a
n
c
e
l
Illustration 5.8 Cancel Key
[Info]
The info key displays information about a command,
parameter, or function in any display window. [Info]
provides detailed information when needed.
Exit Info mode by pressing either [Info], [Back], or [Cancel].
I
n
f
o
Illustration 5.9 Info Key
Navigation keys
The 4 navigation keys are used to navigate between the
options available in [Quick Menu], [Main Menu], and [Alarm
Log]. Move the cursor with the navigation keys.
[OK]
The OK key is used for selecting a parameter marked by
the cursor and for enabling the change of a parameter.
130BT117.10
OK
Back
Info
Warn
Alarm
On
Cancel
Illustration 5.10 Navigation Keys
Operation keys
For local control. Found at the bottom of the control
panel.
130BP046.10
Hand
on
O
Auto
on
Reset
Illustration 5.11 Operation Keys
User Interface Operating Instructions
32 Danfoss A/S © 09/2014 All rights reserved. MG90V302
