Danfoss VLT AutomationDrive FC 300 User Manual

Mechanical Dimensions and Rated Power
Frame size D13 E9
Enclosure protection
IP 21/54 21/54*
NEMA Type 1/Type 12 Type 1/Type 12
High overload rated power - 160%
overload torque
132 - 200 kW at 400 V
(380 - 480 V)
250 - 400 kW at 400 V
(380 - 480 V)
Drive Dimensions Height 1780.5 mm/70.1” 2000.7 mm/78.77”
Width 1021.9 mm/40.23” 1200 mm/47.24”
Depth 377.8 mm/14.87” 493.5 mm/19.43”
Max Weight 390 kg/860 lbs. 676 kg/1490 lbs.
Shipping
Weight
435 kg/959 lbs. 721 kg/1590 lbs.
Table 4.1
Frame size F18
Enclosure protection
IP 21/54
NEMA Type 1
High overload rated power - 160% overload
torque
450 - 630 kW at 400 V
(380 - 480 V)
Drive Dimensions Height 2278.4 mm/89.70”
Width 2792 mm/109.92”
Depth 605.8 mm/23.85”
Max Weight 1900 kg/4189 lbs.
Shipping
Weight
2262 kg/4987 lbs.
Table 4.2
4.3
Mechanical Installation
Preparation of the mechanical installation of the frequency
converter must be done carefully to ensure a proper result
and to avoid additional work during installation. Start
taking a close look at the mechanical drawings at the end
of this instruction to become familiar with the space
demands.
4.3.1 Tools Needed
Tools needed for mechanical installation:
•
Drill with 10 or 12 mm drill
•
Tape measure
•
Screw driver
•
Wrench with relevant metric sockets (7-17 mm)
•
Extensions to wrench
•
Sheet metal punch for conduits or cable glands
•
Lifting bar to lift the unit (rod or tube max. Ø 25
mm (1 inch), able to lift minimum 1000 kg).
•
Crane other lifting aid to place the unit in
position
•
Torx T50 tool
4.3.2
General Considerations
Space
Ensure proper space above and below the frequency
converter to allow airflow and cable access. In addition
space in front of the unit must be considered to enable
opening of the door of the panel.
68.1
[2.7]
577.4
[22.7]
398.2
[15.7]
574.2
[22.6]
130BC165.10

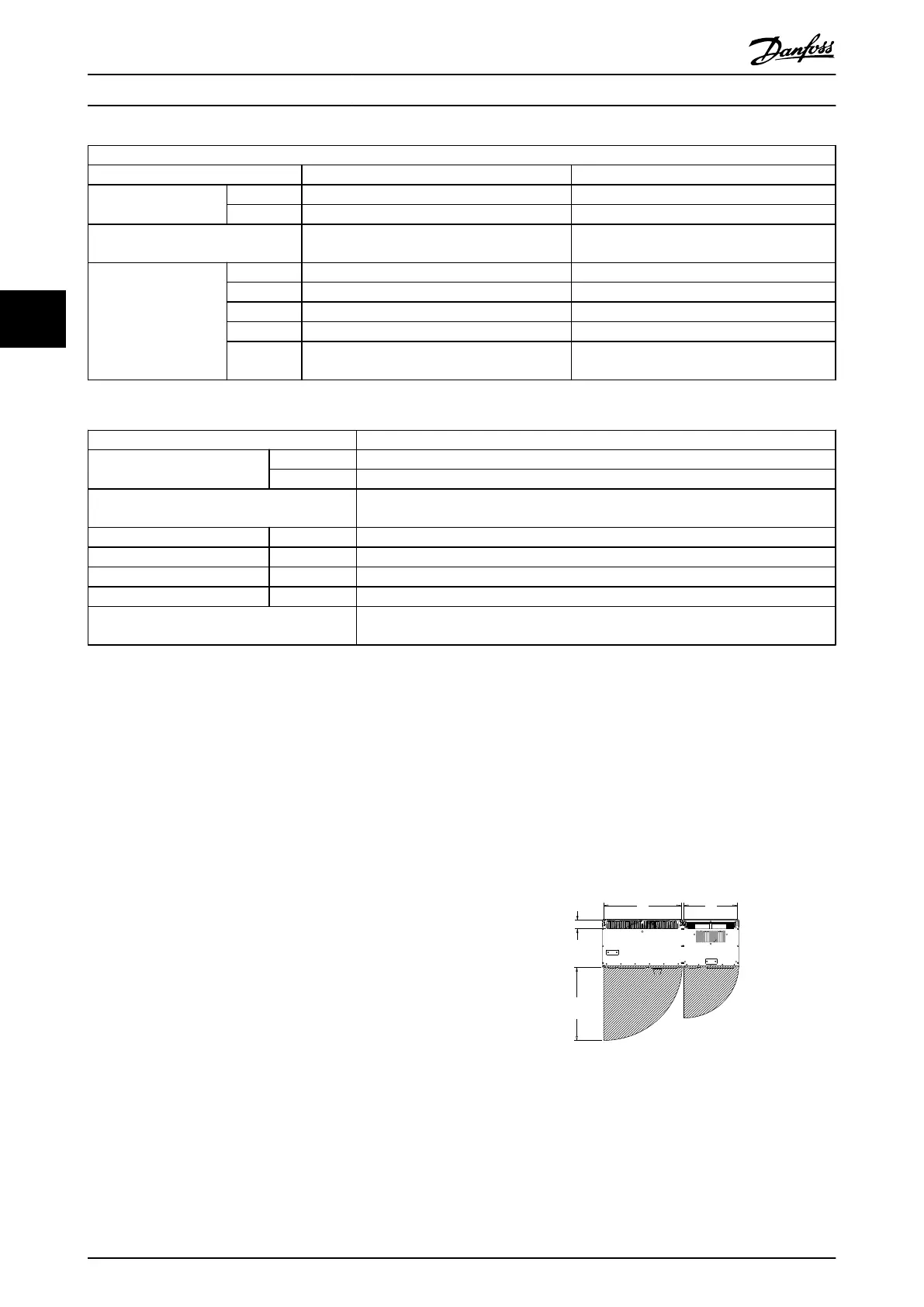

Illustration 4.10 Space in front of IP21/IP54 enclosure type, frame
size D13.
How to Install VLT Automation Low Harmonic Drive Operating Instructions
20 MG34O202 - VLT
®
is a registered Danfoss trademark
44
