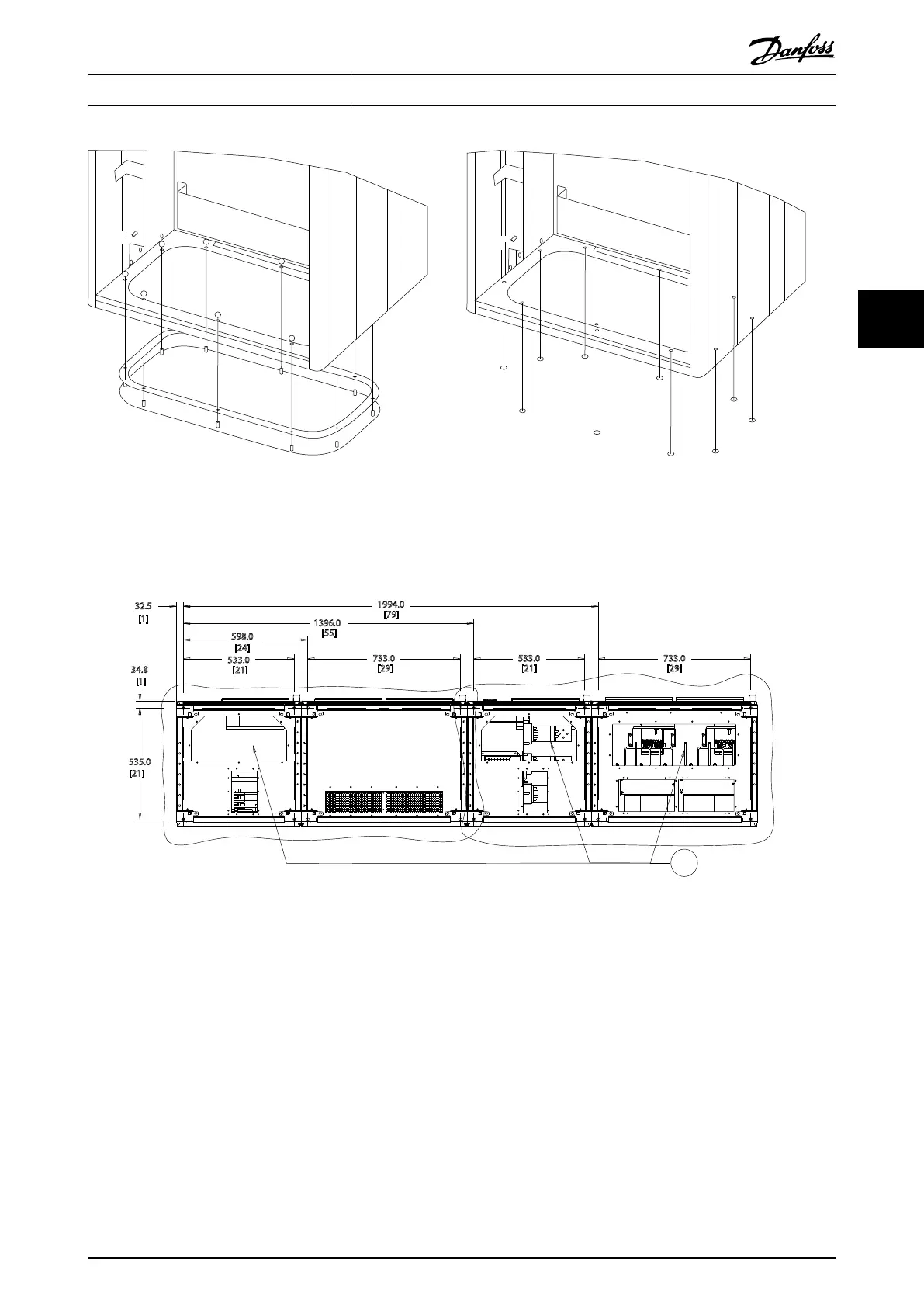

Illustration 4.21 Mounting of Bottom Plate, Frame Size E9
The bottom plate of the E frame can be mounted from
either in- or outside of the enclosure, allowing flexibility in
the installation process, i.e. if mounted from the bottom
the glands and cables can be mounted before the
frequency converter is placed on the pedestal.
32.5
[1]
533.0
[21]
733.0
[29]
533.0
[21]
733.0
[29]
598.0
[24]
1396.0
[55]
1994.0
[79]
535.0
[21]
34.8
[1]
1
130BC173.10
Illustration 4.22
Cable entries viewed from the bottom of the frequency
converter
1) Mains cable connection
2) Motor cable connection
How to Install VLT Automation Low Harmonic Drive Operating Instructions
MG34O202 - VLT
®
is a registered Danfoss trademark 31
4 4
