Danfoss VLT AutomationDrive FC 361 Programming Guide

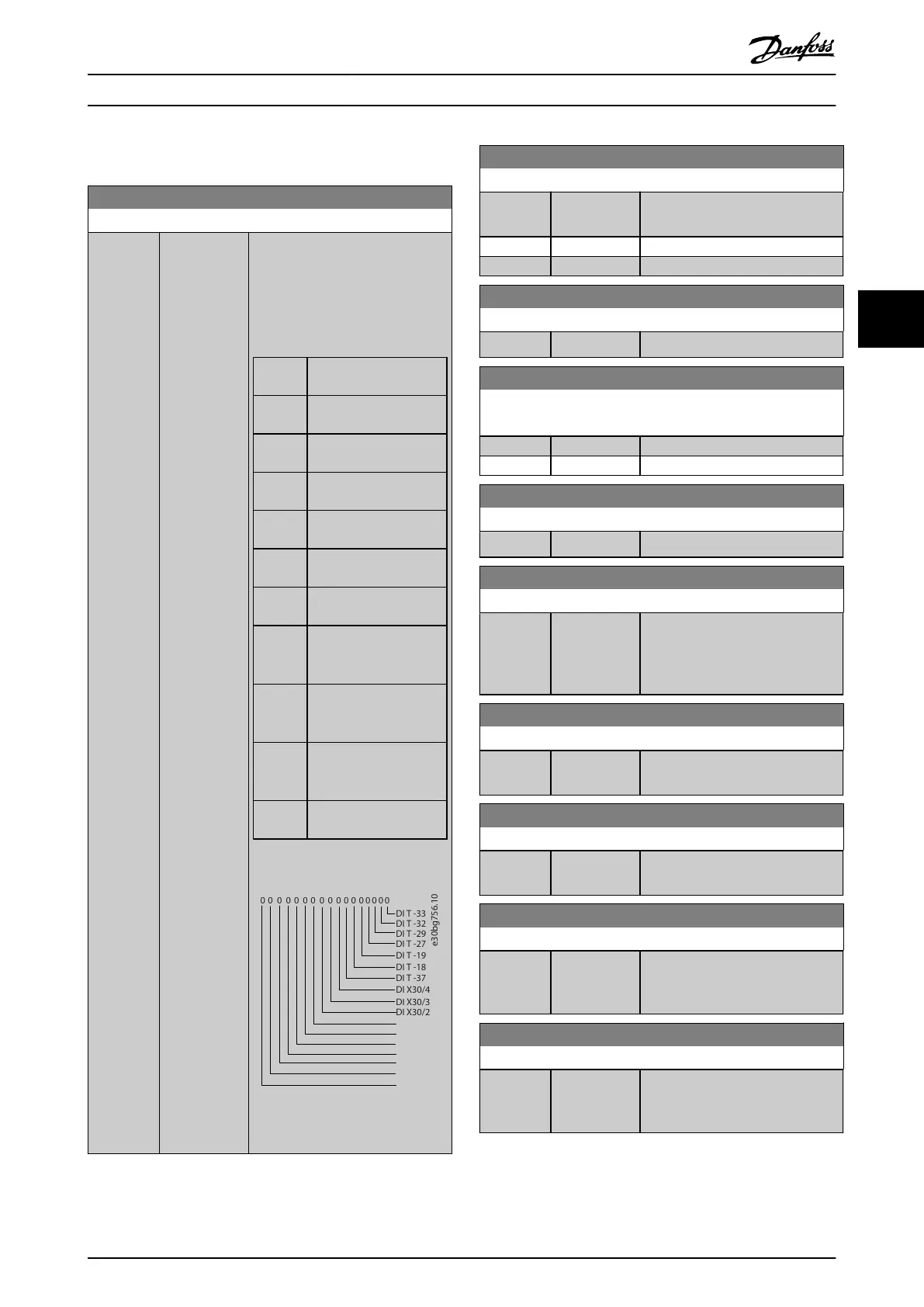

4.15.5 16-6* Inputs and Outputs
16-60 Digital Input
Range: Function:
0* [ 0 - 1023 ] View the signal states from the
active digital inputs. Example: Input
18 corresponds to bit number 5, 0
= no signal, 1 = connected signal.
Bit 6 works in the opposite way, on
= 0, o = 1 (Safe Torque O input).
Bit 0 Digital input terminal
33.
Bit 1 Digital input terminal
32.
Bit 2 Digital input terminal
29.
Bit 3 Digital input terminal
27.
Bit 4 Digital input terminal
19.
Bit 5 Digital input terminal
18.
Bit 6 Digital input terminal
37.
Bit 7
Digital input VLT
®
General Purpose I/O
MCB 101 terminal X30/4.
Bit 8
Digital input VLT
®
General Purpose I/O
MCB 101 terminal X30/3.
Bit 9
Digital input VLT
®
General Purpose I/O
MCB 101 terminal X30/2.
Bit 10–
63
Reserved for future
terminals.
Table 4.20 Active Digital Inputs
D
I
T -
3
3
D
I
T -
3
2
D
I
T -
2
9
D
I
T -
2
7
D
I
T -
1
9
D
I
T -
1
8
D
I
T -
3
7
D
I
X
3
0/4
D
I
X
3
0/3
D
I
X
3
0/2
e30bg756.10
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
Reserved
Reserved
Reserved
Reserved
Reserved
Reserved
Reserved
Illustration 4.47 Relay Settings
16-61 Terminal 53 Switch Setting
Option: Function:
View the setting of input terminal
53.
[0] * Current
[1] Voltage
16-62 Analog Input 53
Range: Function:
0* [-20 - 20] View the actual value at input 53.
16-63 Terminal 54 Switch Setting
View the setting of input terminal 54.
Option: Function:
[0] * Current
[1] Voltage
16-64 Analog Input 54
Range: Function:
0* [-20 - 20] View the actual value at input 54.
16-65 Analog Output 42 [mA]
Range: Function:
0* [0 - 30] View the actual value at output 42
in mA. The value shown reects the
selection in parameter 6-50 Terminal
42 Output.
16-66 Digital Output [bin]
Range: Function:
0* [0 - 15] View the binary value of all digital
outputs.
16-67 Pulse Input #29 [Hz]
Range: Function:
0* [0 - 130000 ] View the actual frequency rate on
terminal 29.
16-68 Freq. Input #33 [Hz]
Range: Function:
0* [0 - 130000] View the actual value of the
frequency applied at terminal 33 as
an impulse input.
16-69 Pulse Output #27 [Hz]
Range: Function:
0* [0 - 40000] View the actual value of pulses
applied to terminal 27 in digital
output mode.
Parameter Descriptions Programming Guide
MG06J202 Danfoss A/S © 03/2019 All rights reserved. 147
4 4
