Danfoss VLT AutomationDrive FC 361 Programming Guide

16-70 Pulse Output #29 [Hz]
Range: Function:
0* [0 - 40000 ] View the actual value of pulses at
terminal 29 in digital output mode.
16-71 Relay Output [bin]
Range: Function:
0* [0 - 511 ] View the settings of all relays.
R
eadout choic
e (P
ar
. 16-71):
R
ela
y output (bin):
Reserved
Reserved
P
o
w
er car
d r
ela
y 02
P
o
w
er car
d r
ela
y 01
Reserved
e30bg757.10
0 0 0
0 0 bin

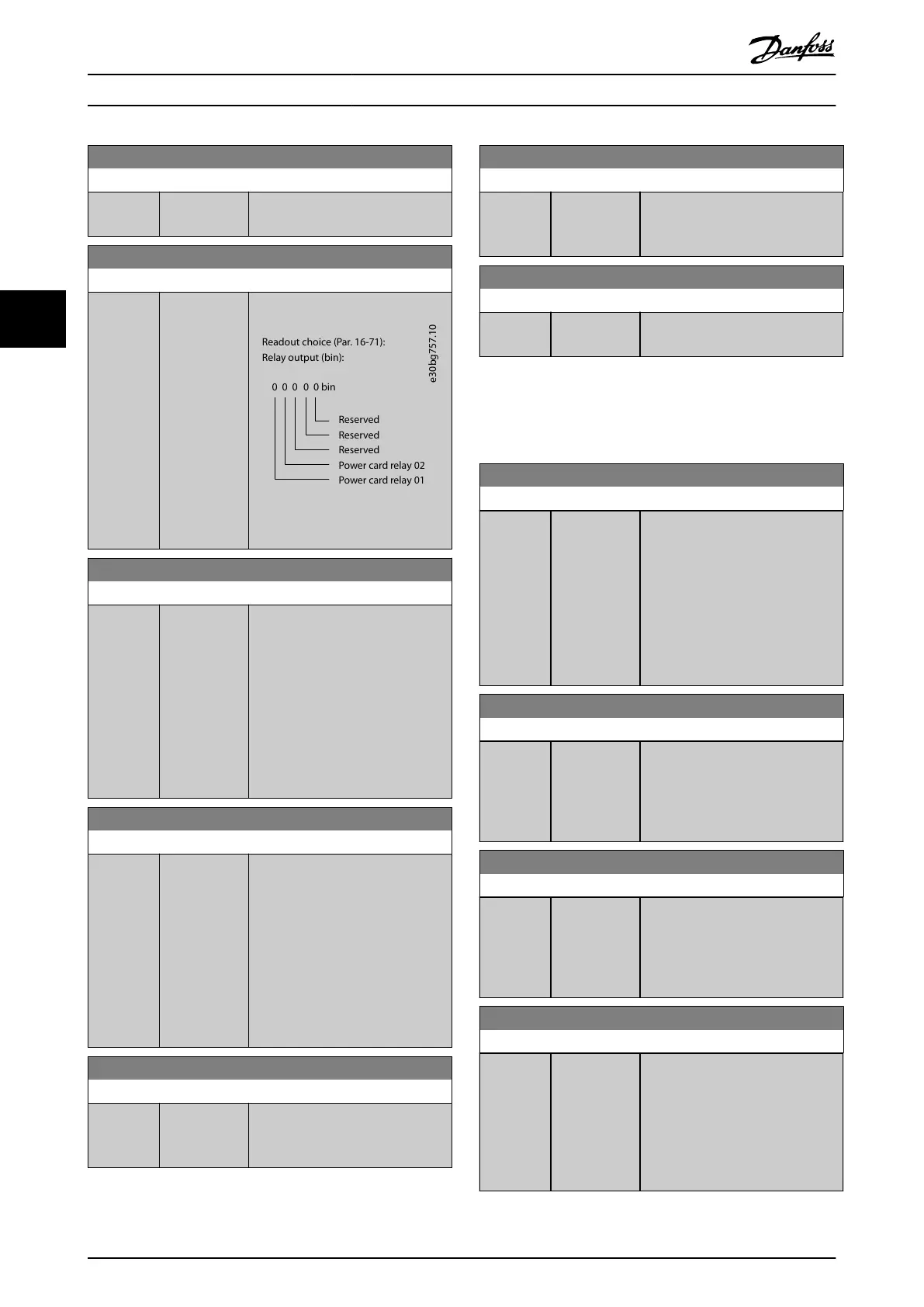

Illustration 4.48 Relay Settings
16-72 Counter A
Range: Function:
0* [-2147483648
- 2147483647]
View the present value of counter
A. Counters are useful as
comparator operands, see
parameter 13-10 Comparator
Operand.
Reset or change the value either via
digital inputs (parameter group 5-1*
Digital Inputs) or by using an SLC
action (parameter 13-52 SL Controller
Action).
16-73 Counter B
Range: Function:
0* [-2147483648
- 2147483647]
View the present value of counter
B. Counters are useful as
comparator operands
(parameter 13-10 Comparator
Operand).
Reset or change the value either via
digital inputs (parameter group 5-1*
Digital Inputs) or by using an SLC
action (parameter 13-52 SL Controller
Action).
16-75 Analog In X30/11
Range: Function:
0* [-20 - 20 ] View the actual value at input
X30/11 of VLT
®
General Purpose I/O
MCB 101.
16-76 Analog In X30/12
Range: Function:
0* [-20 - 20 ] View the actual value at input
X30/12 of VLT
®
General Purpose I/O
MCB 101.
16-77 Analog Out X30/8 [mA]
Range: Function:
0* [0 - 30 ] View the actual value at input
X30/8 in mA.
4.15.6 16-8* Fieldbus & FC Port
Parameters for reporting the bus references and control
words.
16-80 Fieldbus CTW 1
Range: Function:
0* [0 - 65535 ] View the 2-byte control word (CTW)
received from the eldbus master.
Interpretation of the control word
depends on the eldbus option
installed and the control word
prole selected in
parameter 8-10 Control Prole.
For more information, refer to the
relevant eldbus manual.
16-82 Fieldbus REF 1
Range: Function:
0* [-200 - 200 ] View the 2-byte word sent with the
control word from the eldbus
master to set the reference value.
For more information, refer to the
relevant eldbus manual.
16-84 Comm. Option STW
Range: Function:
0* [0 - 65535 ] Show the status word of the
extended eldbus communication
option.
For more information, refer to the
relevant eldbus manual.
16-85 FC Port CTW 1
Range: Function:
0* [0 - 65535 ] View the 2-byte control word (CTW)
received from the eldbus master.
Interpretation of the control word
depends on the eldbus option
installed and the control word
prole selected in
parameter 8-10 Control Prole.
Parameter Descriptions VLT® AutomationDrive FC 361
148 Danfoss A/S © 03/2019 All rights reserved. MG06J202
44
