Danfoss VLT AutomationDrive FC 361 Programming Guide

130BA065.12
P 1-30
R
Fe
X
h
R'
r
R
s
U
1
I
1
P 1-33
P 1-34
P 1-31P 1-35P 1-36
X'
2δ
X
1δ

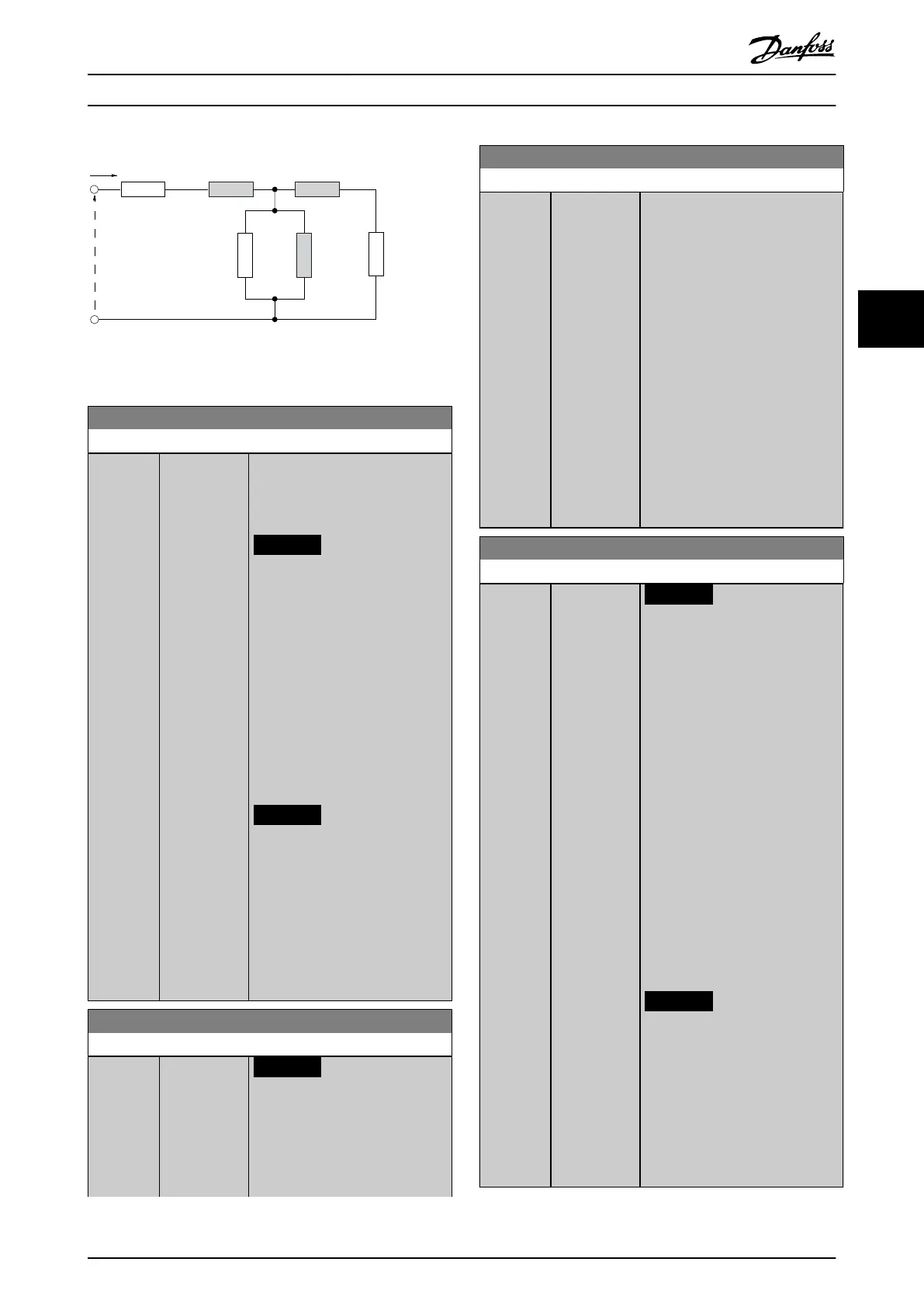

Illustration 4.5 Motor Equivalent Diagram of an Asynchronous
Motor
1-30 Stator Resistance (Rs)
Range: Function:
Size
related*
[ 0.0140 -
140.0000
Ohm]
Set the line-to-common stator
resistance value. Enter the value
from a motor datasheet or perform
an AMA on a cold motor.
NOTICE
For salient PM motors:
AMA is not available.
If only line-line data is
available, divide the line-line
value by 2 to achieve the line-
to-common (star point) value.
Alternatively, measure the
value with an ohmmeter. This
also takes the resistance of the
cable into account. Divide the
measured value by 2 and enter
the result.
NOTICE
The parameter value is
updated after each torque
calibration if option [3] 1st
start with store or option [4]
Every start with store is
selected in
parameter 1-47 Torque
Calibration.
1-31 Rotor Resistance (Rr)
Range: Function:
Size
related*
[ 0.0100 -
100.0000
Ohm]
NOTICE
Parameter 1-31 Rotor Resistance
(Rr) does not have eect when
parameter 1-10 Motor
Construction is set to [1] PM,
non-salient SPM.
1-31 Rotor Resistance (Rr)
Range: Function:
Set the rotor resistance value R
r
to
improve shaft performance using 1
of these methods:
•
Run an AMA on a cold
motor. The frequency
converter measures the
value from the motor. All
compensations are reset
to 100%.
•
Enter the R
r
value
manually. Obtain the value
from the motor supplier.
•
Use the R
r
default setting.
The frequency converter
establishes the setting
based on the motor
nameplate data.
1-33 Stator Leakage Reactance (X1)
Range: Function:
Size
related*
[ 0.0400 -
400.0000
Ohm]
NOTICE
This parameter is only relevant
for asynchronous motors.
Set the stator leakage reactance of
the motor using 1 of these
methods:
•
Run an AMA on a cold
motor. The frequency
converter measures the
value from the motor.
•
Enter the X
1
value
manually. Obtain the value
from the motor supplier.
•
Use the X
1
default setting.
The frequency converter
establishes the setting
based on the motor
nameplate data.
See Illustration 4.5.
NOTICE
The parameter value is
updated after each torque
calibration if option [3] 1st
start with store or option [4]
Every start with store is
selected in
parameter 1-47 Torque
Calibration.
Parameter Descriptions Programming Guide
MG06J202 Danfoss A/S © 03/2019 All rights reserved. 37
4 4
