16-61 Terminal 53 Switch Setting
Option: Function:
View the setting of input terminal 53. Current = 0;
Voltage
= 1.
[0] Current
[1] Voltage
16-62 Analog Input 53
Range: Function:
0 * [-20 - 20 ] View the actual value at input 53.
16-63 Terminal 54 Switch Setting
Option: Function:
View the setting of input terminal 54. Current = 0;
Voltage = 1.
[0] Current
[1] Voltage
16-64 Analog Input 54
Range: Function:
0 * [-20 - 20 ] View the actual value at input 54.
16-65 Analog Output 42 [mA]
Range: Function:
0 * [0 - 30 ] View the actual value at output 42 in mA. The
value
shown reflects the selection in 6-50 Terminal
42 Output.
16-66 Digital Output [bin]
Range: Function:
0 * [0 - 15 ] View the binary value of all digital outputs.
16-67 Pulse Input #29 [Hz]
Range: Function:
0 * [0 - 130000 ] View the actual frequency rate on terminal
29.
16-68 Pulse Input #33 [Hz]
Range: Function:
0 * [0 - 130000 ] View the actual value of the frequency
applied
at terminal 33 as an impulse input.
16-69 Pulse Output #27 [Hz]
Range: Function:
0 * [0 - 40000 ] View the actual value of impulses applied to
terminal
27 in digital output mode.
16-70 Pulse Output #29 [Hz]
Range: Function:
0 * [0 - 40000 ] View the actual value of pulses to terminal 29
in
digital output mode.
16-71 Relay Output [bin]
Range: Function:
0 * [0 - 31 ] View the settings of all relays.

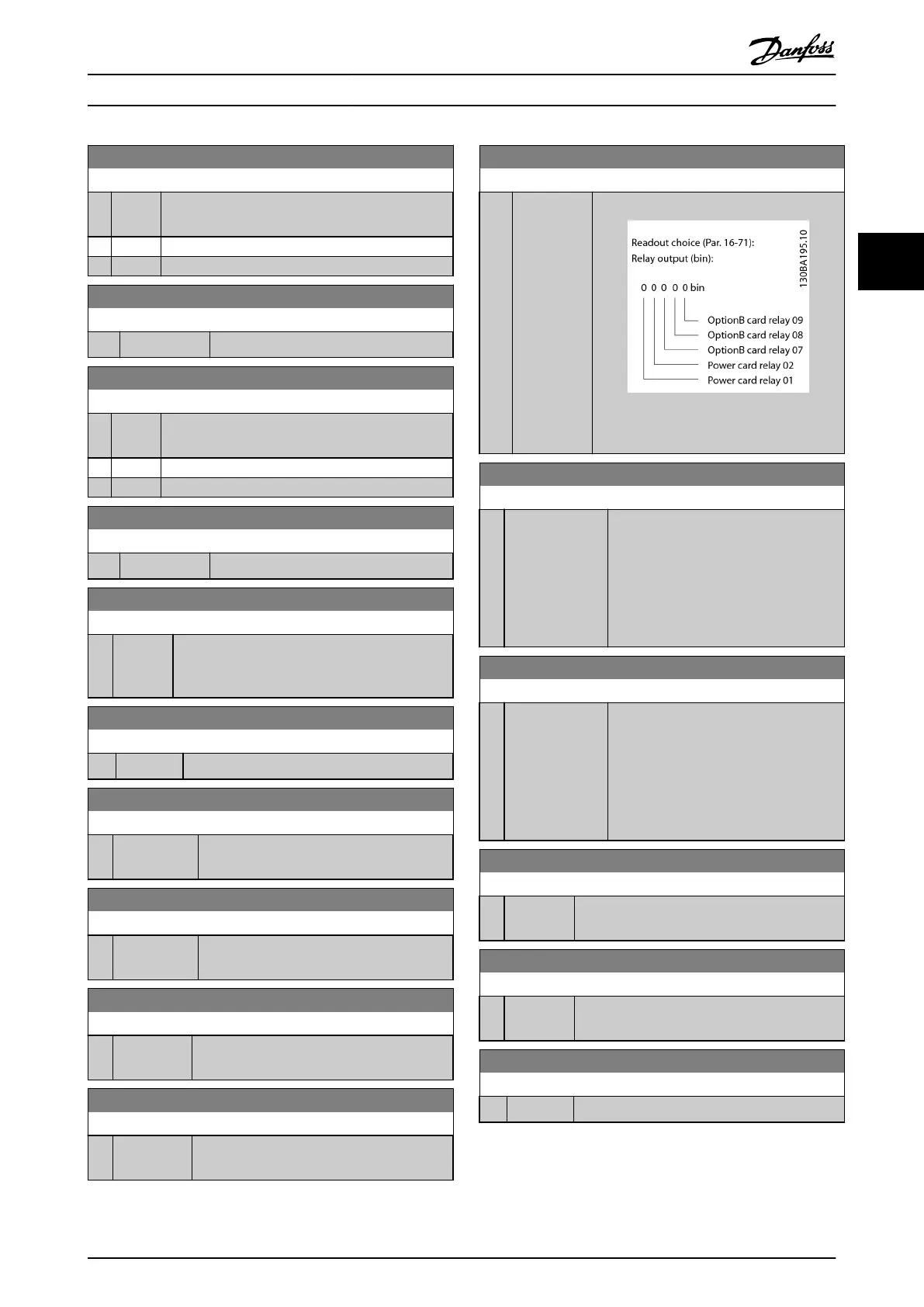

Illustration 3.40
16-72 Counter A
Range: Function:
0 * [-2147483648 -
2147483647
]
View the present value of Counter A.
Counters are useful as comtor operands,
see 13-10 Comparator Operand.
The value can be reset or changed either
via digital inputs (parameter group 5-1*)
or by using an SLC action (13-52 SL
Controller Action).
16-73 Counter B
Range: Function:
0 * [-2147483648 -
2147483647 ]
View the present value of Counter B.
Counters are useful as comtor operands
(13-10 Comparator Operand).
The value can be reset or changed either
via digital inputs (parameter group 5-1*)
or by using an SLC action (13-52 SL
Controller Action).
16-75 Analog In X30/11
Range: Function:
0 * [-20 - 20 ] View the actual value at input X30/11 of MCB
101.
16-76 Analog In X30/12
Range: Function:
0 * [-20 - 20 ] View the actual value at input X30/12 of MCB
101.
16-77 Analog Out X30/8 [mA]
Range: Function:
0 * [0 - 30 ] View the actual value at input X30/8 in mA.
3.13.5 16-8* Fieldbus & FC Port
Parameters for reporting the BUS references and control
words.
Parameter Description
VLT
®
Refrigeration Drive Programming Guide
MG16H102 - VLT
®
is a registered Danfoss trademark
107
3 3
