Danfoss VLT Micro Drive FC 51 Operating Instructions

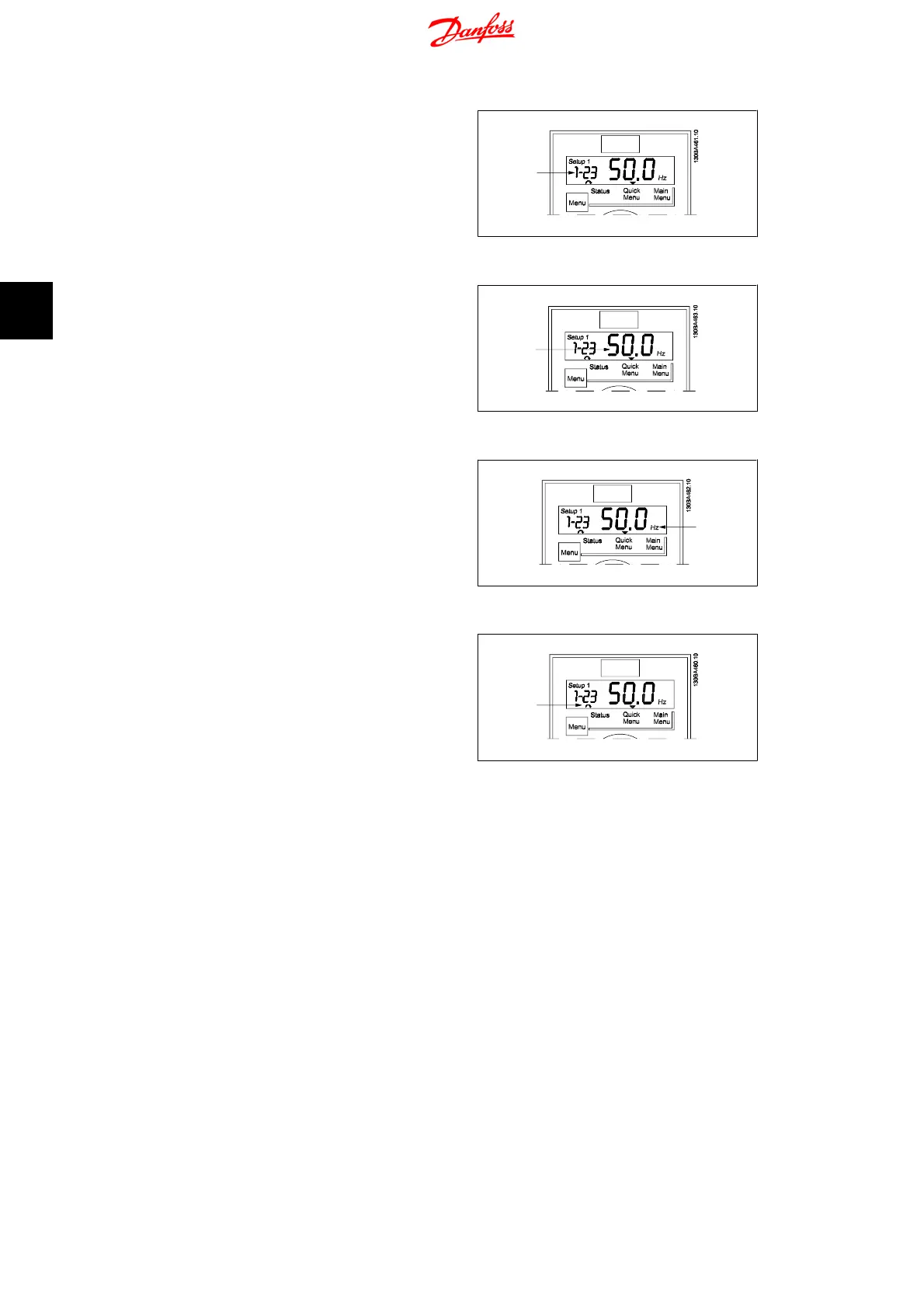

The small digits to the left are the selected
parameter number .
Illustration 4.4: Indicating selected par. no.
The large digits in the middle of the display
show the value of the selected parameter.
Illustration 4.5: Indicating value of selected par.
The right side of the display shows the unit
of the selected parameter. This can be either
Hz, A, V, kW, HP, %, s or RPM.
Illustration 4.6: Indicating unit of selected par.
Motor direction is shown to the bottom left
of the display - indicated by a small arrow
pointing either clockwise or counterclockwise.
Illustration 4.7: Indicating motor direction
Use the [MENU] key to select one of the following menus:
Status Menu:
The Status Menu is either in
Readout Mode or Hand on Mode . In Readout Mode the value of the
currently selected readout parameter is shown in the display.
In
Hand on Mode the local LCP reference is displayed.
Quick Menu:
Displays Quick Menu parameters and their settings. Parameters in the Quick Menu can be accessed
and edited from here. Most applications can be run by setting the parameters in the Quick Menus.
Main Menu:
Displays Main Menu parameters and their settings. All parameters can be accessed and edited
here. A parameter overview is found later in this chapter. For detailed information on program-
ming, please see
Programming Guide , MG02CXYY.
