Indicator lights:
• Green LED: Power is on the frequency converter.
• Yellow LED: Indicates a warning.
• Flashing red LED: Indicates an alarm.
Navigation Keys:
[Back]: For moving to the previous step or layer in the navigation structure.
Arrows [▲] [▼]: For manoeuvring between parameter groups, parameters and within parame-
ters.
[OK]: For selecting a parameter and for accepting changes to parameter settings.
Operation Keys:
A yellow light above the operation keys indicates the active key.
[Hand on]: Starts the motor and enables control of the frequency converter via the LCP.
[Off/Reset]: The motor stops except in alarm mode. In that case the motor will be reset.
[Auto on]: The frequency converter is controlled either via control terminals or serial communi-
cation.
[Potentiometer] (LCP12): The potentiometer works in two ways depending on the mode in
which the frequency converter is running.
In
Auto Mode the potentiometer acts as an extra programmable analog input.
In
Hand on Mode the potentiometer controls local reference.

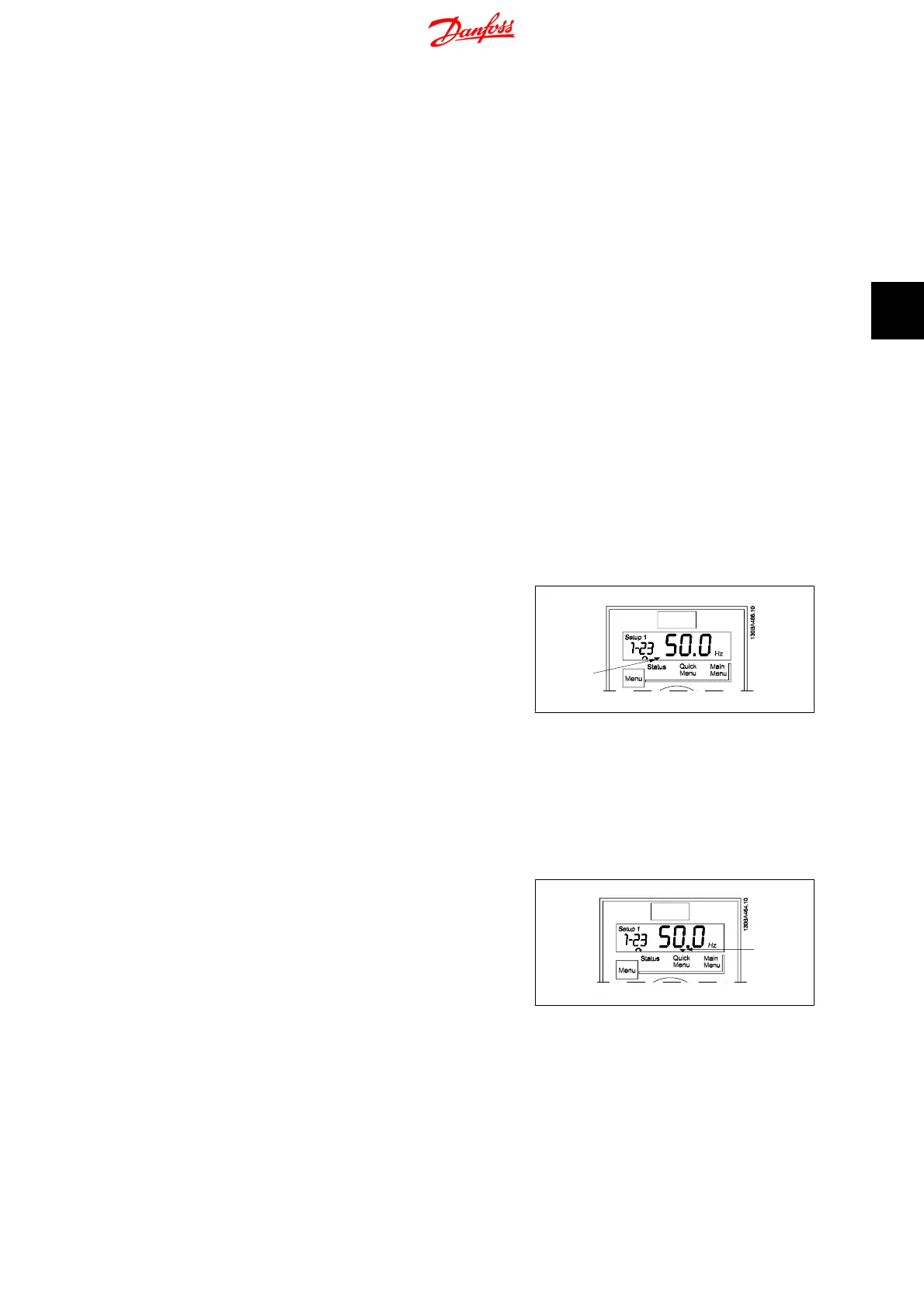

4.2. Status Menu
After power up the Status Menu is active. Use
the [MENU] key to toggle between Status,
Quick Menu and Main Menu.
Arrows [▲] and [▼] toggles between the
choices in each menu.
The display indicates the status mode with a
small arrow above “Status”.
Illustration 4.8: Indicating Status mode
4.3. Quick Menu
The Quick Menu gives easy access to the most frequently used parameters.
1. To enter the Quick Menu, press
[MENU] key until indicator in display
is placed above
Quick Menu , then
press [OK].
2. Use [▲] [▼] to browse through the
parameters in the Quick Menu.
3. Press [OK] to select a parameter.
4.
Use [▲] [▼] to change the value of a
parameter setting.
5. Press [OK] to accept the change.
6. To exit, press either [Back] twice to
enter
Status , or press [Menu] once
to enter
Main Menu .
Illustration 4.9: Indicating Quick Menu mode
VLT Micro Drive FC 51 Operating Instructions 4. Programming
MG.02.A2.02 - VLT
®
is a registered Danfoss trademark 17
4
