4. Programming
4.1. How to Programme
4.1.1. Programming with MCT-10
The frequency converter can be programmed from a PC via RS485 com-port by installing the
MCT-10 Set-up Software.
This software can either be ordered using code number 130B1000 or downloaded from the Dan-
foss Web site: www.danfoss.com, Business Area: Motion Controls.
Please refer to manual MG.10.RX.YY.
4.1.2. Programming with LCP 11 or LCP 12
The LCP is divided into four functional groups:
1. Numeric display.
2. Menu key.
3. Navigation keys.
4. Operation keys and indicator lights (LEDs).

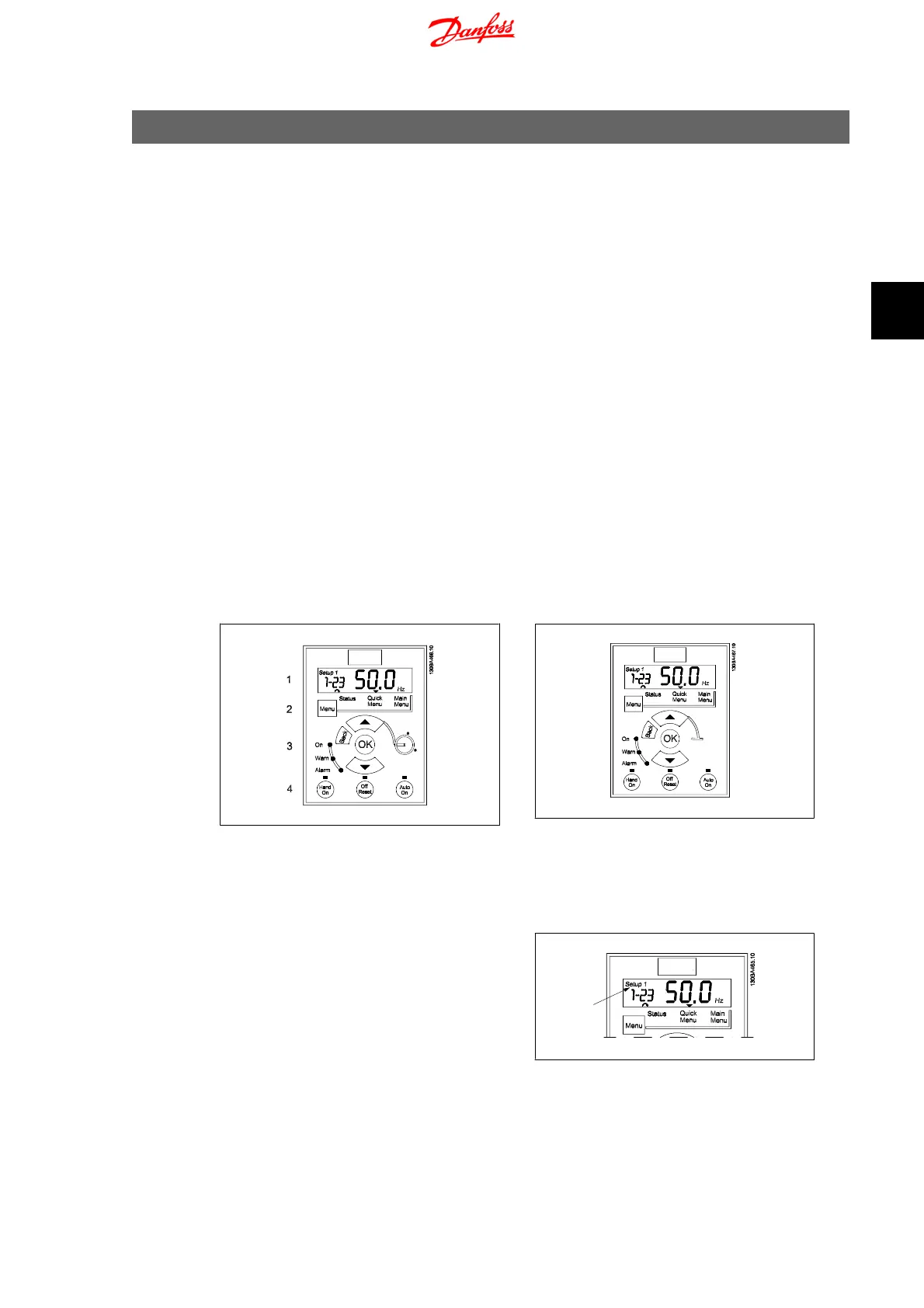

Illustration 4.1: LCP 12 with potentiometer
Illustration 4.2: LCP 11 without potentiometer
The display:
A number of information can be read from the display.
Set-up number shows the active set-up and
the edit set-up. If the same set-up acts as
both active and edit set-up, only that set-up
number is shown (factory setting).
When active and edit set-up differ, both num-
bers are shown in the display (Setup 12). The
number flashing, indicates the edit set-up.
Illustration 4.3: Indicating Set-up
VLT Micro Drive FC 51 Operating Instructions 4. Programming
MG.02.A2.02 - VLT
®
is a registered Danfoss trademark 15
4
