Danfoss VLT Safety Option MCB 150 - General Wiring Guidelines

1
2
10 mm
e30bd009.11
1
2
3
4
7
6
5
10
8
9
11
12

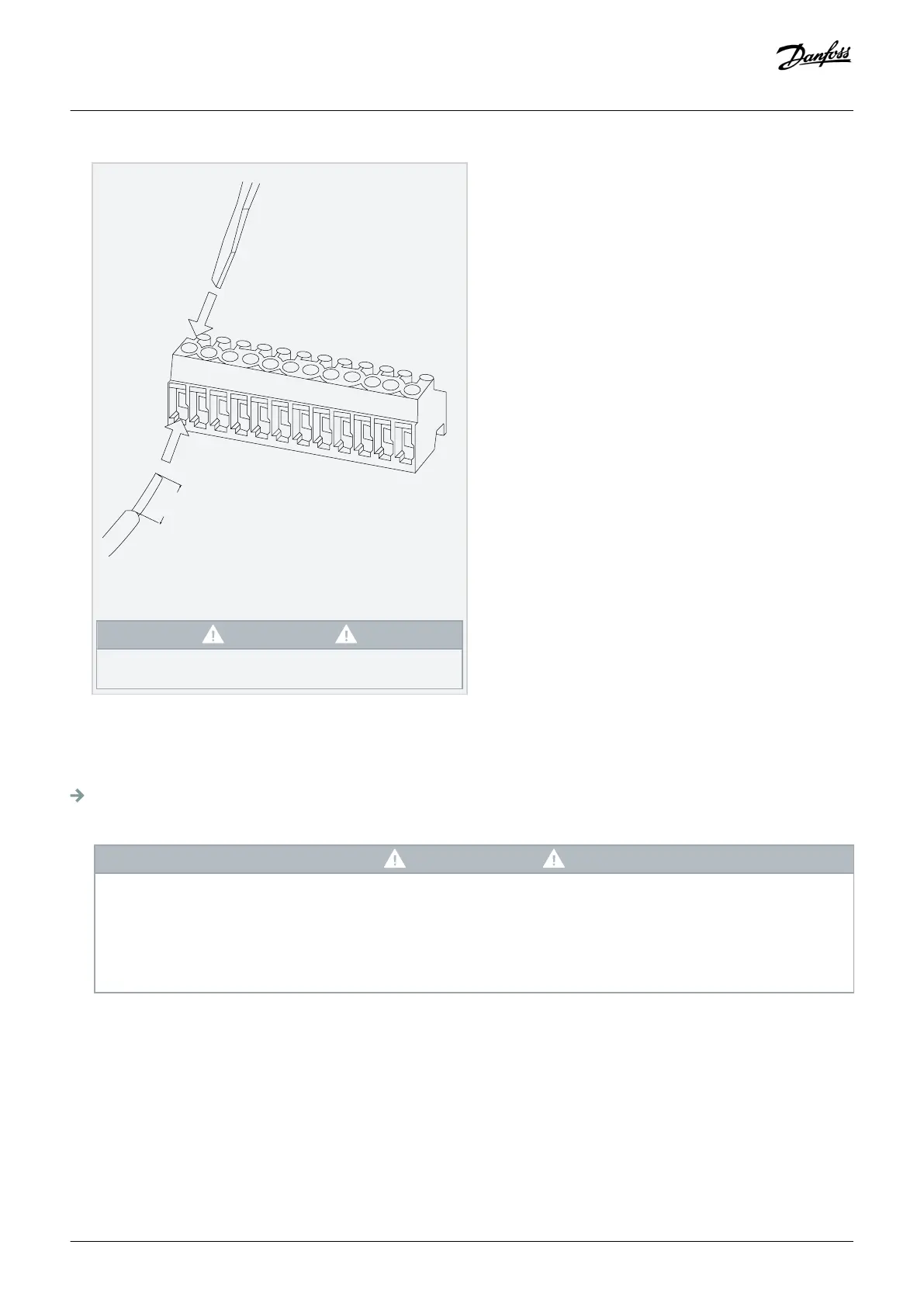

Illustration 20: Connecting Control Wiring
NOTICE
The connections are not pre-wired from factory.
9. Fit the LCP or blind cover in the extended LCP frame.
Connect power to the drive.
Set up the input/output functions in the corresponding parameters as mentioned in the chapter Safe Plug-in the VLT® Motion
Control Tool MCT 10 Operating Guide.
The commissioning test report is automatically generated via the Safe Plug-in in MCT 10 after downloading the parameters to the
safety option.
WARNING
PROPER GROUNDING
Qualified personnel, in this case the operator or electrical installer, is responsible for proper grounding and compliance
with all applicable national and local safety regulations. Failure to have qualified personnel doing the wiring could result in
death or serious injury.
-
Only allow qualified personnel to do the wiring of the equipment.
4.1.5 General Wiring Guidelines
Inputs
Use appropriate wiring to exclude short circuits between the inputs or to a supply line.
Installation
Installation Guide | VLT® Safety Option MCB 150/151
AQ279747441421en-000101 / 130R0292 | 41
