Danfoss VLT Safety Option MCB 150 User Manual

e30bc375.12
A
B
24 V
GND
4
7
10
11
nA
6
nB 9
FC 302
MCB 150

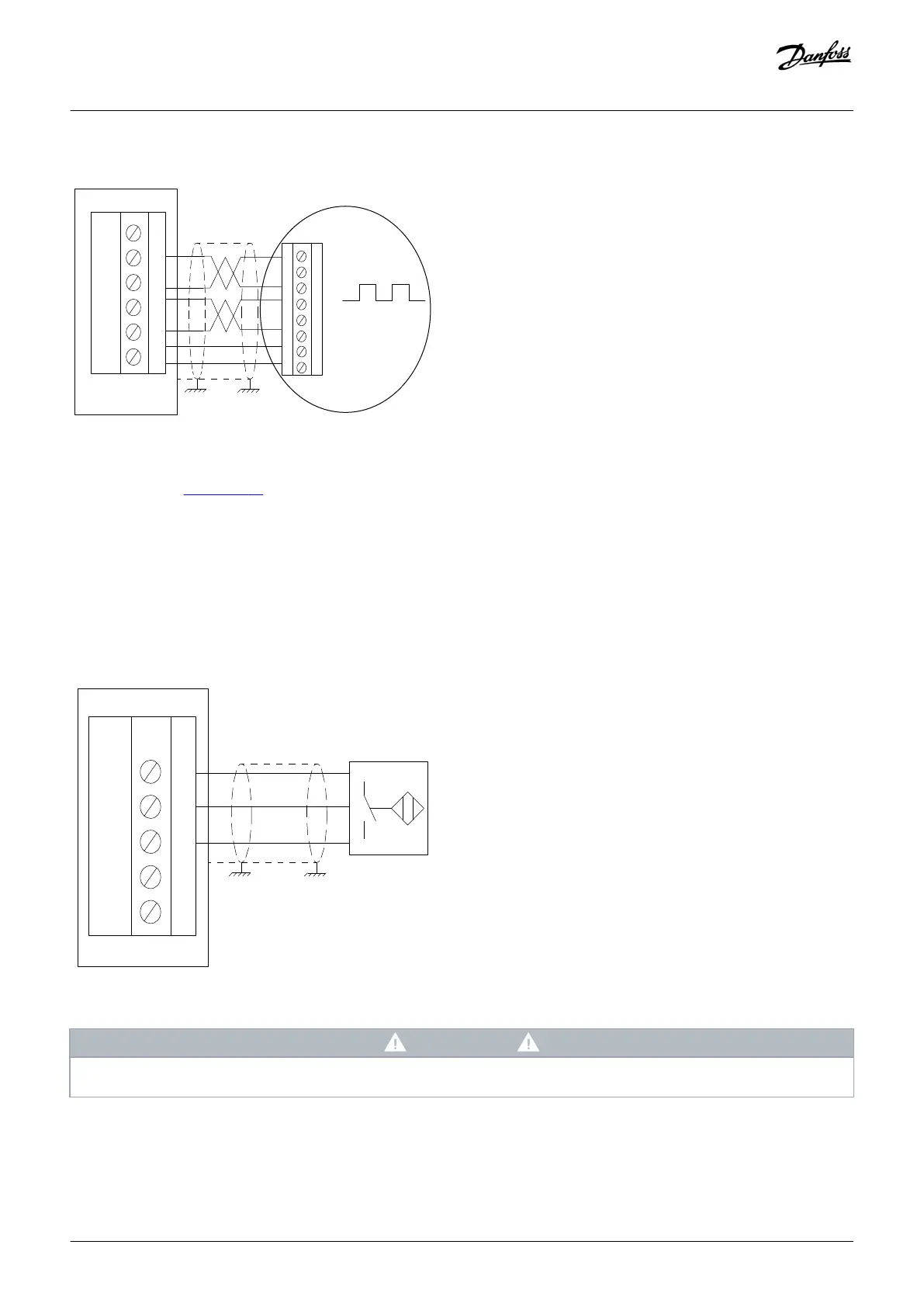

Illustration 26: Y30/Connecting Power and Differential Encoder Signals to TTL Encoder (VLT® Safety Option MCB 150)
The TTL encoder in
illustration 26 is shown with 24 V supply and TTL output. If an encoder for 5 V supply must be connected, use a 5 V
external supply.
4.2.3 Proximity Switch
An inductive proximity switch, detecting already present mechanical parts, for example a gear wheel, is a frequently used alternative to
standard encoders. The required minimum number of pulses per revolution (PPR) is 2 on the motor shaft while considering the gear
ratio.
e30bc376.12
A
24 V
4
10
11GND
FC 302
MCB 151
Illustration 27: Y/31 Connecting VLT® Safety Option MCB 151 to Proximity Switch (only HTL)
NOTICE
Shield and terminate the proximity switch cable to chassis at both ends (at the proximity switch side and at the option side).
Installation
Installation Guide | VLT® Safety Option MCB 150/151
AQ279747441421en-000101 / 130R0292
46 | Danfoss A/S © 2018.09
