3.5.3 Lifting the Unit
NOTICE

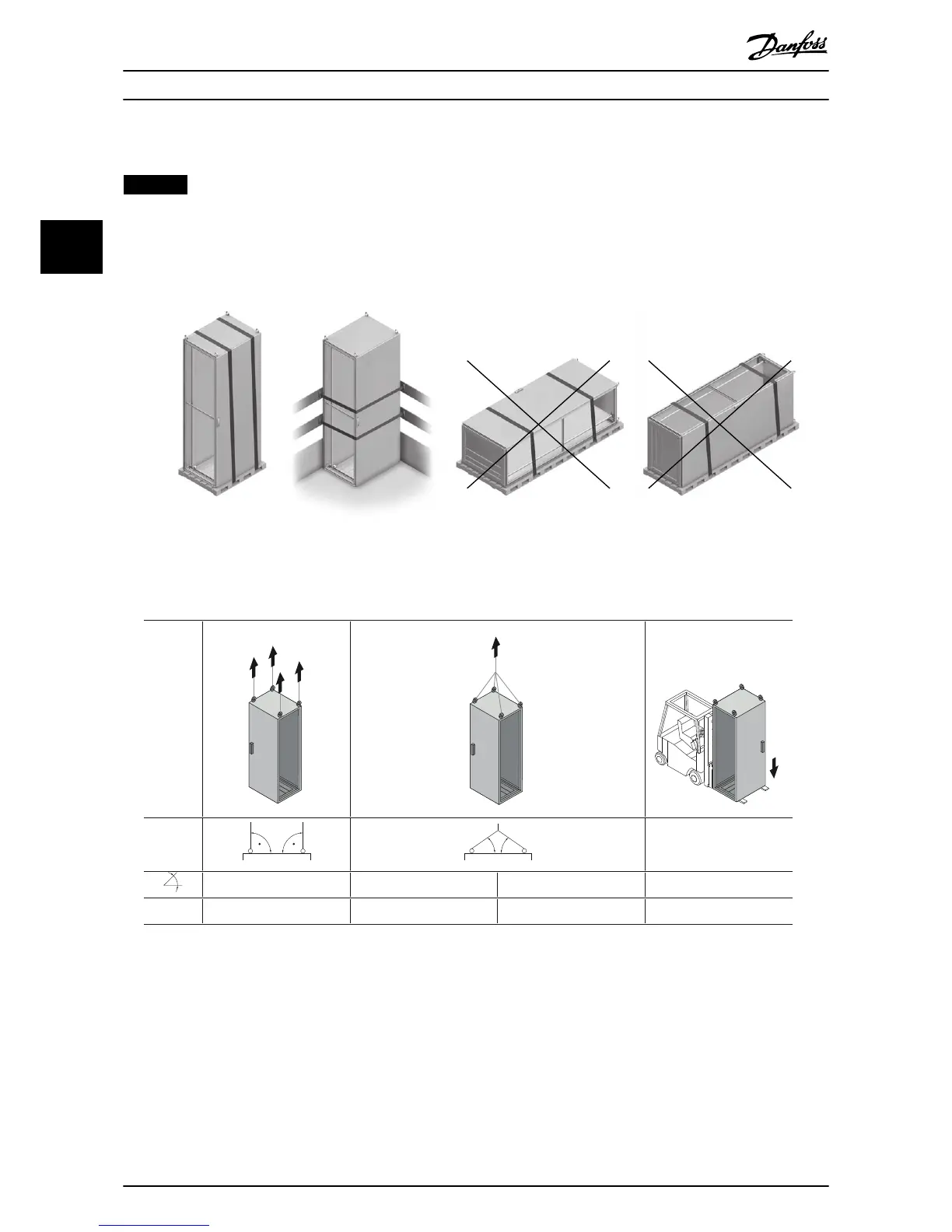

UPRIGHT TRANSPORT AND LIFTING ONLY!
The unit must be transported in upright position only. Failure to do so can result in damage to the unit. Refer to
Illustration 3.1
130BE493.10
Illustration 3.1 Transport Orientation
130BE492.10
¼ F
¼ F
¼ F
¼ F
F
F
Maximum 1400 (3086)
90°
kg (lb) 1360 (3000) 480 (1048) 640 (1411)
45° 60°
Illustration 3.2 Load Distribution for dierent Lifting Procedures
For measurements and center of gravity, see chapter 5.2 Dimensions.
•
Check the weight of the unit, see chapter 5.3 Weights
•
Ensure that the lifting device is suitable for the task.
•
Move the unit using a hoist, crane, or forklift with the appropriate rating.
•
Always lift the unit using the dedicated lifting eyes.
Mechanical Installation
VLT
®
Plus Panel
14 Danfoss A/S © 09/2015 All rights reserved. MG13B102
33
