3.7.1 Creating an Entry for Cables
Cables are connected from the bottom of the unit, through a metal gland plate, and into the cabinet. Fit the gland plates to
the active front-end drive to ensure the specied degree of protection.
1. Open the mains cabinet and remove the nuts from the mains gland plate. Remove the plate.
2. Open the motor cabinet and remove the nuts from the motor gland plate. Remove the plate.
3. Use a sheet metal punch to create entry holes in the mains and motor plates. Refer to the gland plate dimensions
in chapter 5.2 Dimensions.
4. Reattach the mains and motor gland plates after the unit has been lowered onto the oor, as shown in
Illustration 3.13.
130BE105.10
1
2
3
4
1 Motor cables. 3 Mains gland plate. For dimensions, see chapter 5.2 Dimensions.
2 Motor gland plate. For dimensions, see
chapter 5.2 Dimensions.
4 Mains cables.

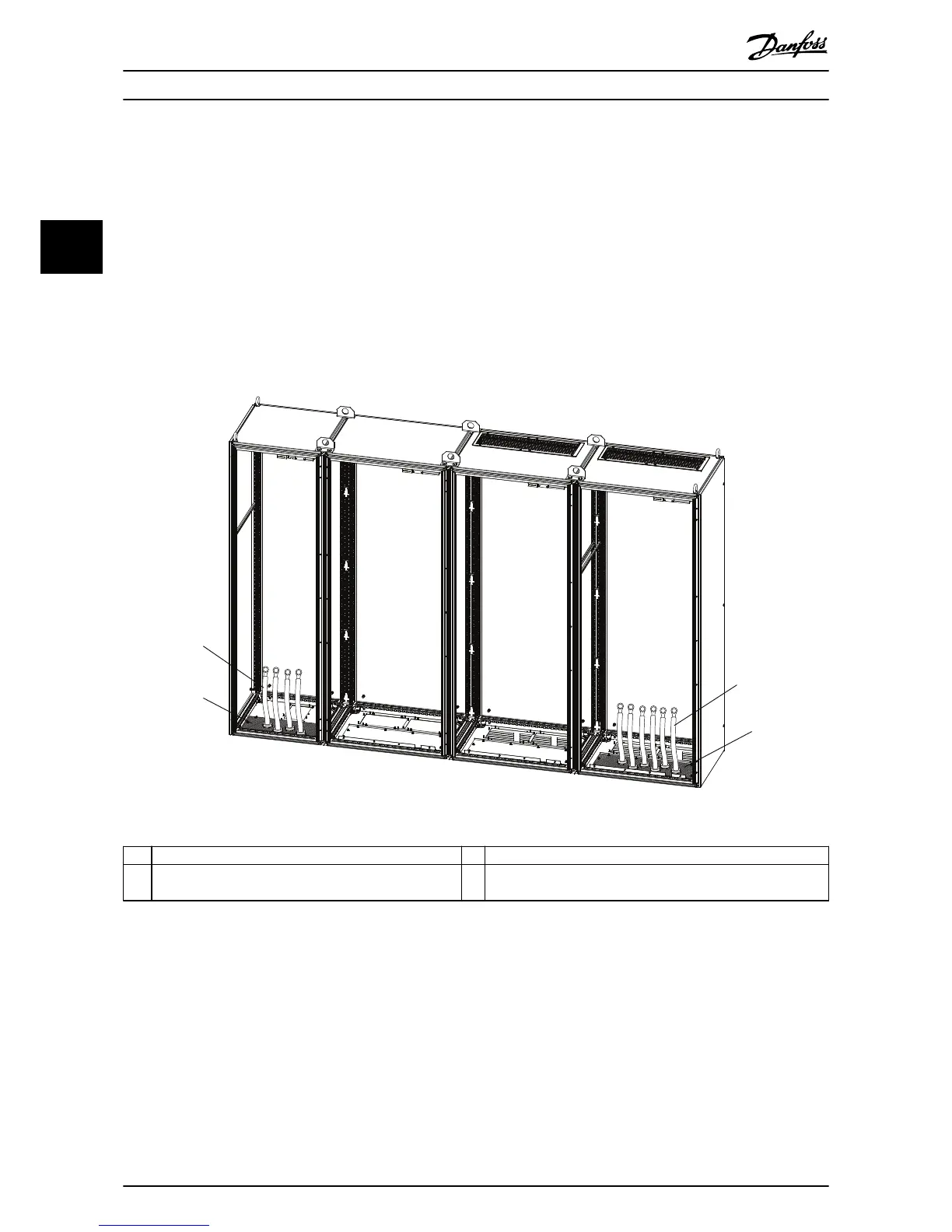

Illustration 3.13 Cable Entry through the Gland Plates (Example)
