Danfoss VLT series Installation Guide

130BE588.10
1
2
1 M8x60 mm bolt with lock washer and at washer
2 M10x30 mm bolt with captive lock washer and at washer

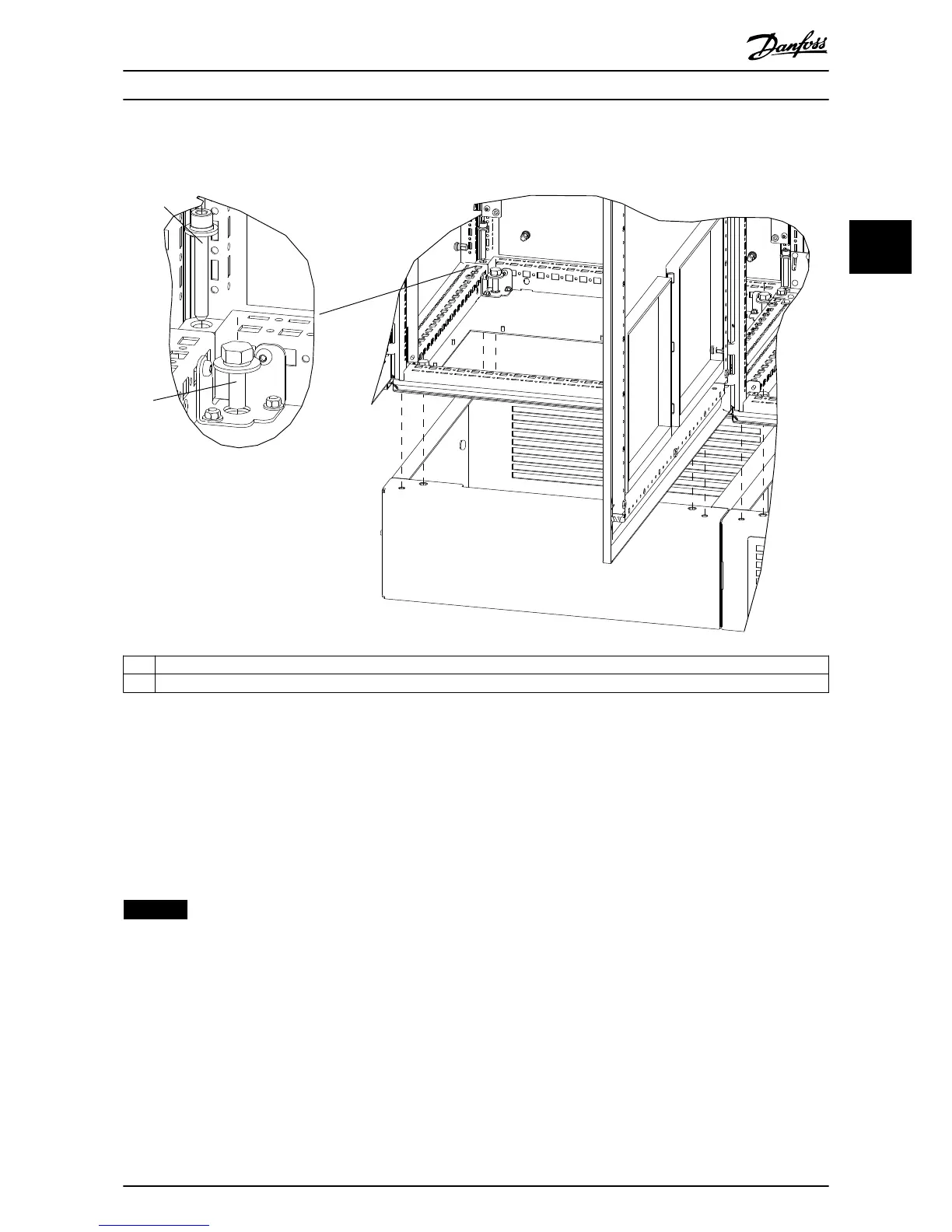

Illustration 3.12 Location of Corner Fasteners for a Pedestal Installation (Example)
3.7
Assembling a Standard Unit without a Pedestal
Although a pedestal is shipped with the unit, the unit can be operated without a pedestal in the following situations:
•
In applications where there is an open space beneath the unit in which the cabinets receive unrestricted air ow.
•
In applications that use the in-back/out-back cooling kit.
NOTICE
Prepare the mechanical installation of the VLT
®
Plus Panel carefully to ensure a proper result and avoid extra work
during installation. To become familiar with the space demands, start taking a close look at the mechanical drawings in
this manual and in the customer documentation, delivered with the VLT
®
Plus Panel for latest information.
Mechanical Installation Installation Guide
MG13B102 Danfoss A/S © 09/2015 All rights reserved. 21
3 3
